Finder PCB Mount Power Relay, 12V dc Coil, 12A Switching Current, DPDT

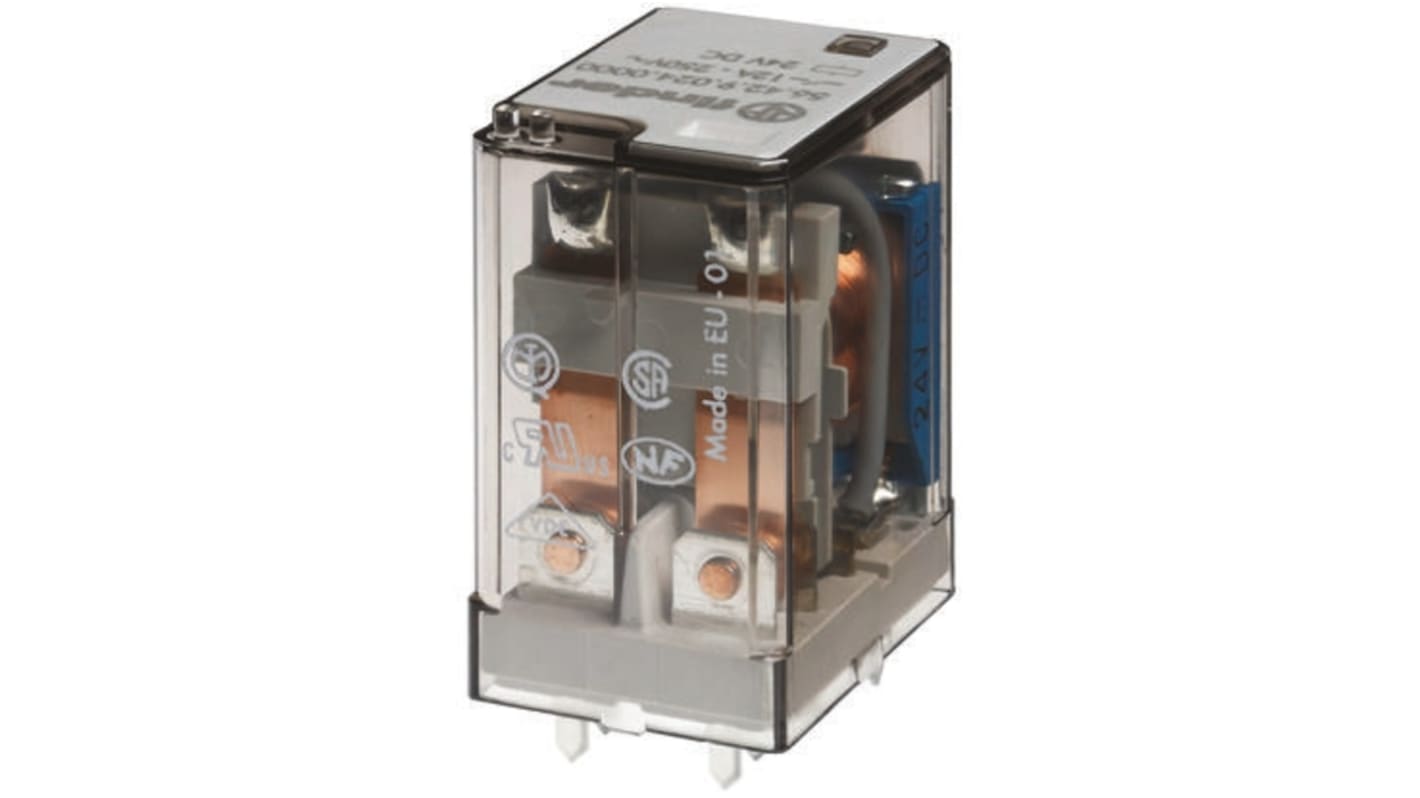

Image representative of range

View all Power Relays
Bulk discount available

Subtotal (1 unit)*

£14.68

(exc. VAT)

£17.62

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 3 unit(s) ready to ship
  • Plus 11 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 9£14.68
10 - 24£13.50
25 - 49£12.92
50 - 99£12.48
100 +£11.45

*price indicative

RS Stock No.:
253-3524
Mfr. Part No.:
56.42.9.012.0000
Brand:
Finder
Find similar products by selecting one or more attributes.
Select all

Brand

Finder

Coil Voltage

12V dc

Contact Configuration

DPDT

Mounting Type

PCB Mount

Switching Current

12A

Number of Poles

2

Series

56 Series

Latching

No

Terminal Type

Through Hole

Maximum Switching Voltage AC

250V ac

Length

20.7mm

Coil Resistance

140Ω

Coil Power

1W

Maximum Operating Temperature

+70°C

Height

36.8mm

Depth

27.7mm

Minimum Operating Temperature

-40°C

Contact Material

Silver Alloy

Isolation Coil To Contact

4kV

Maximum Switching Power AC

3 kVA

Application

Power

COO (Country of Origin):
IT

56 Series


Isolation coil to contact: 2500V
Contact resistance: ≤50mΩ
Rated voltage: 250Vac
Contact material: AgNi
Operating temperature range: -40 to +70°C
Dimensions: H41.1, W20.7, D27.7mm (DPCO), H41.4, W70.8, D27.7mm (4PDT)

Approvals

UL/C-UL recognised; VDE

Approvals

UL/C-UL recognised; VDE
