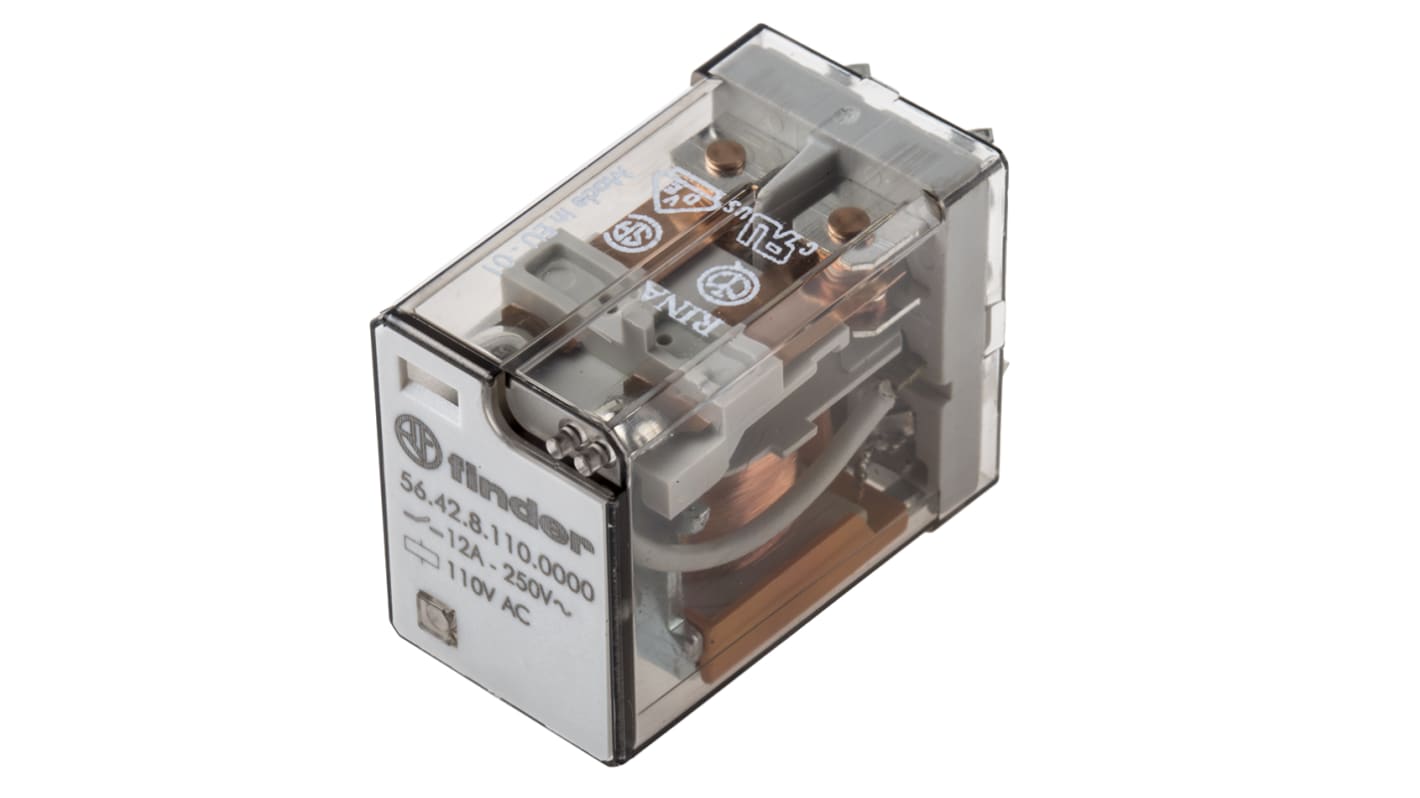

Finder PCB Power Relay, 110V ac Coil, 12A Switching Current, DPDT
- RS Stock No.:
- 708-3150
- Mfr. Part No.:
- 56.42.8.110.0000
- Brand:
- Finder
Bulk discount available
Subtotal (1 unit)*
£16.74
(exc. VAT)
£20.09
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 10 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 24 | £16.74 |
| 25 - 49 | £14.90 |
| 50 - 99 | £13.09 |
| 100 - 249 | £11.23 |
| 250 + | £9.36 |
*price indicative
- RS Stock No.:
- 708-3150
- Mfr. Part No.:
- 56.42.8.110.0000
- Brand:
- Finder
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Finder | |
| Coil Voltage | 110V ac | |
| Product Type | Power Relay | |
| Contact Configuration | DPDT | |
| Mount Type | PCB | |
| Series | 56 | |
| Terminal Type | Solder | |
| Switching Current | 12A | |
| Switching AC Voltage | 400V ac | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 70°C | |
| Coil Resistance | 3.9kΩ | |
| Height | 36.8mm | |
| Length | 20.7mm | |
| Standards/Approvals | VDE, UL, EAC, CSA, CCC | |
| Width | 27.7mm | |
| Coil Power | 1.5W | |
| Contact Material | Silver Alloy | |
| Select all | ||
|---|---|---|
Brand Finder | ||
Coil Voltage 110V ac | ||
Product Type Power Relay | ||
Contact Configuration DPDT | ||
Mount Type PCB | ||
Series 56 | ||
Terminal Type Solder | ||
Switching Current 12A | ||
Switching AC Voltage 400V ac | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 70°C | ||
Coil Resistance 3.9kΩ | ||
Height 36.8mm | ||
Length 20.7mm | ||
Standards/Approvals VDE, UL, EAC, CSA, CCC | ||
Width 27.7mm | ||
Coil Power 1.5W | ||
Contact Material Silver Alloy | ||
56 Series
Isolation coil to contact: 2500V
Contact resistance: ≤50mΩ
Rated voltage: 250Vac
Contact material: AgNi
Operating temperature range: -40 to +70°C
Dimensions: H41.1, W20.7, D27.7mm (DPCO), H41.4, W70.8, D27.7mm (4PDT)
Approvals
UL/C-UL recognised; VDE
