Finder PCB Power Relay, 230V ac Coil, 12A Switching Current, DPDT
- RS Stock No.:
- 253-3568
- Mfr. Part No.:
- 56.42.8.230.0000
- Brand:
- Finder
Subtotal (1 unit)*
£13.42
(exc. VAT)
£16.10
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £13.42 |
*price indicative
- RS Stock No.:
- 253-3568
- Mfr. Part No.:
- 56.42.8.230.0000
- Brand:
- Finder
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Finder | |
| Product Type | Power Relay | |
| Coil Voltage | 230V ac | |
| Contact Configuration | DPDT | |
| Mount Type | PCB | |
| Series | 56 | |
| Terminal Type | Solder | |
| Switching Current | 12A | |
| Minimum Operating Temperature | -40°C | |
| Switching Power | 3kVA | |
| Switching AC Voltage | 400V ac | |
| Coil Resistance | 17kΩ | |
| Maximum Operating Temperature | 70°C | |
| Width | 27.7mm | |
| Standards/Approvals | RoHS | |
| Length | 20.7mm | |
| Coil Power | 1.5W | |
| Height | 36.8mm | |
| Contact Material | Silver Alloy | |
| Select all | ||
|---|---|---|
Brand Finder | ||
Product Type Power Relay | ||
Coil Voltage 230V ac | ||
Contact Configuration DPDT | ||
Mount Type PCB | ||
Series 56 | ||
Terminal Type Solder | ||
Switching Current 12A | ||
Minimum Operating Temperature -40°C | ||
Switching Power 3kVA | ||
Switching AC Voltage 400V ac | ||
Coil Resistance 17kΩ | ||
Maximum Operating Temperature 70°C | ||
Width 27.7mm | ||
Standards/Approvals RoHS | ||
Length 20.7mm | ||
Coil Power 1.5W | ||
Height 36.8mm | ||
Contact Material Silver Alloy | ||

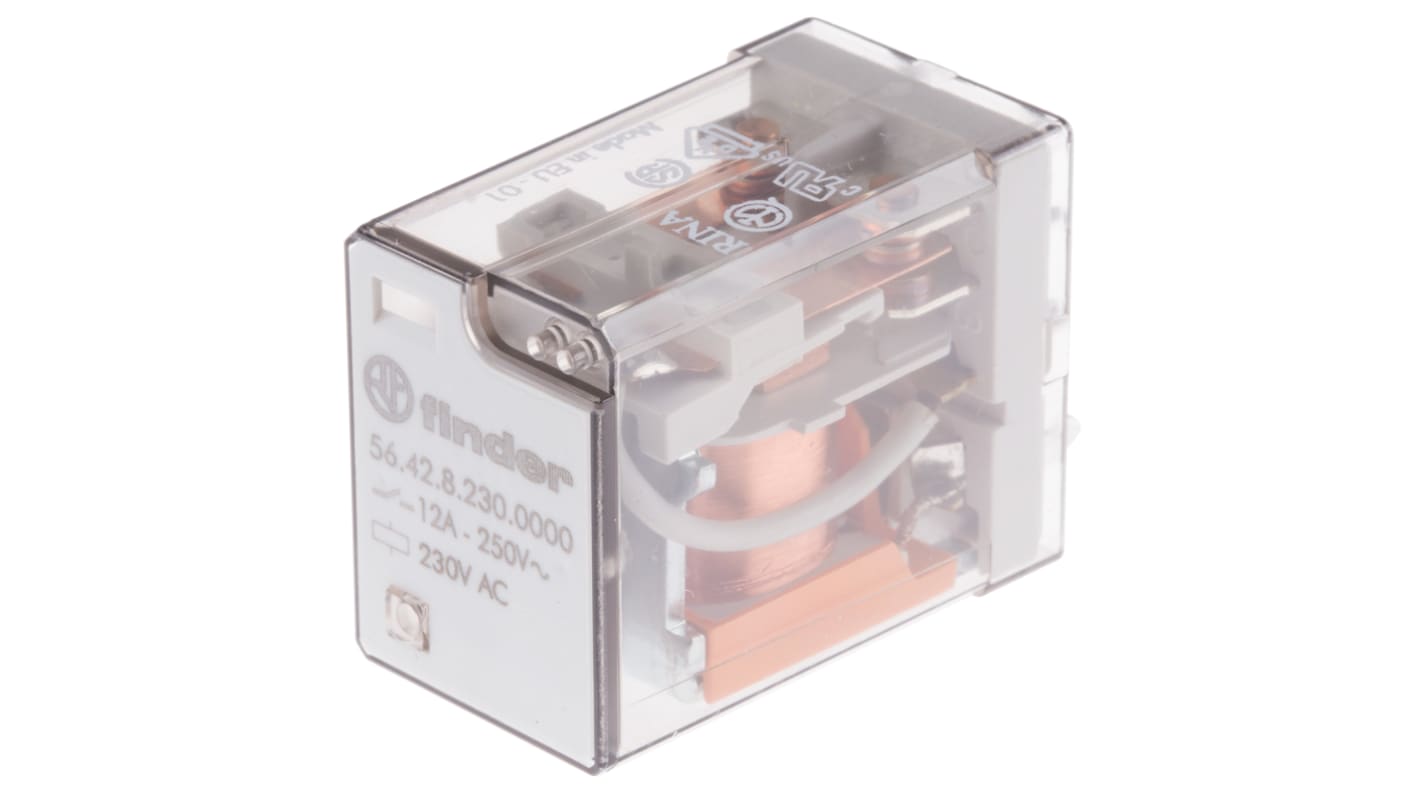

Finder 56 Series Power Relay, 230V AC Coil Voltage, DPDT Contact Configuration - 56.42.8.230.0000
This power relay features a compact PCB mount design. With a coil voltage of 230V AC, this relay entails a DPDT configuration and offers reliable switching capacities in various industrial applications. Measuring 20.7x36.8x27.7mm, it is engineered for longevity and efficiency.
Features & Benefits
• Supports a robust switching current of 12A
• Maximum switching voltage of 250V AC enhances operational flexibility
• Insulation between coil and contacts rated at 4 kV ensures safety
• Extended mechanical lifespan of 20 million cycles improves reliability
• AgNi contact material enhances conductivity and durability
Applications
• Ideal for use in vending machines
• Suitable for industrial furnaces and ovens
• Effective in controlling electric power management
• Utilised within industrial motors and circuit breakers
• Supports operational controls in control panels and carousel warehouses
What are the coil specifications for various voltages?
Coil specifications vary with nominal voltages ranging from 6V to 400V AC and DC. For instance, the 230V AC coil has a resistance of 17,000 Ω and a rated power consumption of 1.5W.
How does this relay manage high switching power?
It can handle a maximum switching power of 3kVA, making it suitable for high-load applications while maintaining operational integrity.
What safety features are integrated into this relay?
The relay features strong insulation between the coil and contacts, mitigating the risk of electrical hazards with a dielectric strength rated at 4 kV and maximum switching voltage capability.
Can this relay be used in temperature extremes?
Yes, it operates within a wide ambient temperature range from -40°C to +70°C, making it suitable for diverse environments.
Approvals
UL; CSA; VDE
