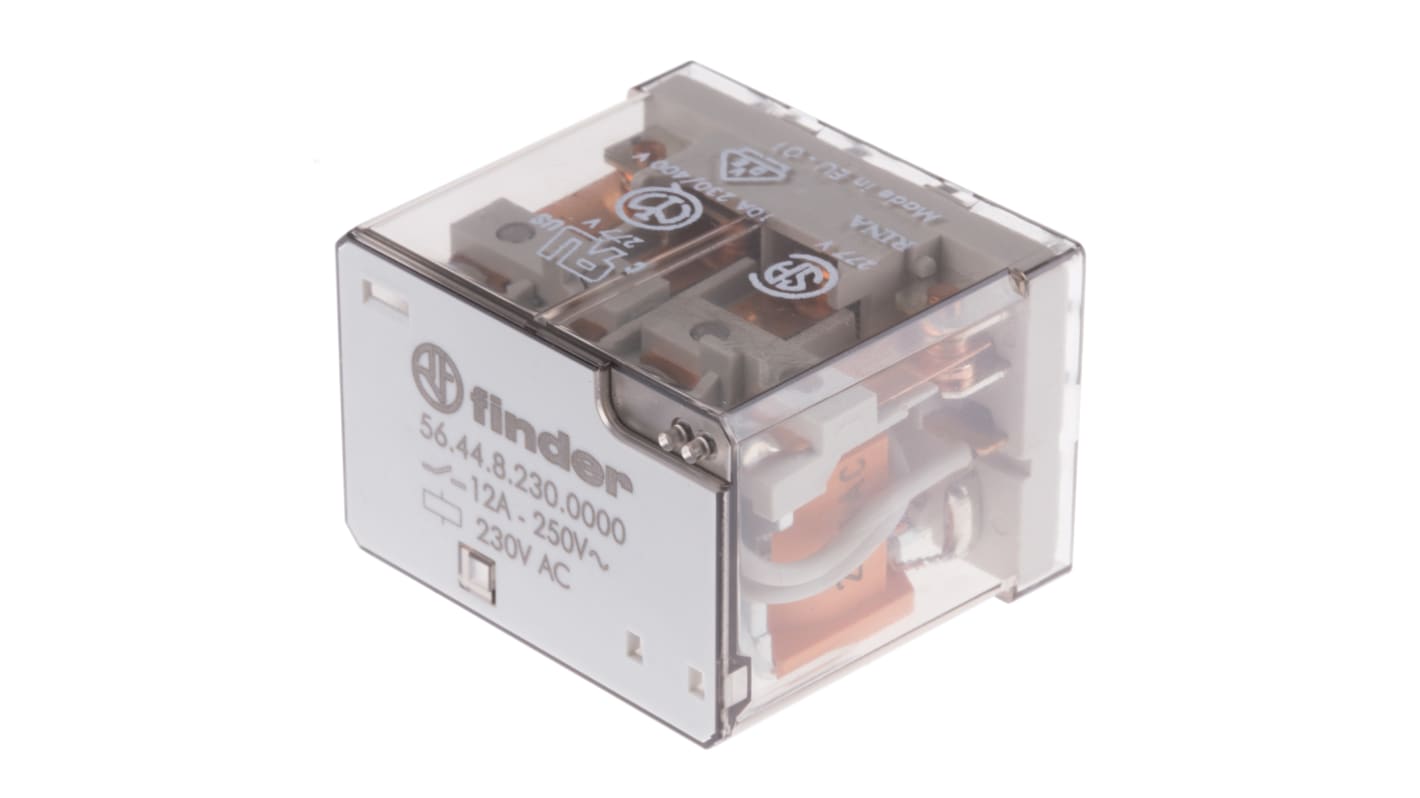

Finder PCB Mount Power Relay, 230V ac Coil, 12A Switching Current, 4PDT

RS Stock No.:: 253-3603
Distrelec Article No.:: 300-89-673
Mfr. Part No.:: 56.44.8.230.0000
Brand:: Finder

Finder PCB Mount Power Relay, 230V ac Coil, 12A Switching Current, 4PDT

Bulk discount available

Subtotal (1 unit)*

£26.14

(exc. VAT)

£31.37

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

3 unit(s) ready to ship
Plus 11 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 - 9	£26.14
10 - 24	£24.05
25 - 49	£23.00
50 - 99	£22.23
100 +	£20.41

*price indicative

RS Stock No.:: 253-3603
Distrelec Article No.:: 300-89-673
Mfr. Part No.:: 56.44.8.230.0000
Brand:: Finder

56 Series

Isolation coil to contact: 2500V
Contact resistance: ≤50mΩ
Rated voltage: 250Vac
Contact material: AgNi
Operating temperature range: -40 to +70°C
Dimensions: H41.1, W20.7, D27.7mm (DPCO), H41.4, W70.8, D27.7mm (4PDT)

Approvals

UL/C-UL recognised; VDE

Finder 56 Series Power Relay, 230V AC Coil Voltage, 12A Switching Current - 56.44.8.230.0000

This power relay is a miniature relay designed for PCB mounting, operating at a coil voltage of 230V AC. Measuring 40.8 mm in length, 27.7 mm in depth, and 37.1 mm in height, this 4PDT relay supports a maximum switching current of 12 A and can handle a maximum switching power of 3 kVA. It is suitable for various applications in the automation and electrical industries.

Features & Benefits

• High capacity with a maximum switching voltage of 250V AC
• Durable silver alloy contact provides longevity
• Operates efficiently within a temperature range of -40 °C to +70 °C
• Supports single coil design with a resistance of 7700 Ω
• Ideal for automation tasks due to its reliable performance
• Meets international standards including cURus and EAC

Applications

• Used in industrial ovens and furnaces for managing power distribution
• Suitable for control panels within automation systems
• Implemented in circuit breakers and switch
• Effective for industrial motor control needs
• Commonly used in vending machines for operational reliability

How does the relay handle high switching capacities?

The design accommodates high switching capacities with a maximum rating of 20 A and can operate under a maximum switching power of 3 kVA, making it suitable for demanding applications.

What is the significance of the isolation rating?

With an isolation rating of 5 kV between coil and contact, the relay ensures safe operation and minimises the risk of electrical interference, enhancing reliability in sensitive applications.

Can it be used in adverse environmental conditions?

Yes, the relay is engineered to function effectively in temperature extremes ranging from -40 °C to +70 °C, making it applicable in various industrial environments.

What does it mean that the contacts are cadmium-free?

Cadmium-free contacts signify that this relay has been manufactured without hazardous materials, which is beneficial for both safety and environmental compliance in industrial applications.

What is the expected electrical life of this relay?

The relay is designed for an electrical life of up to 100,000 cycles under rated load, ensuring durability and reducing the need for frequent replacements in long-term applications.

Approvals

UL; CSA; VDE

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Finder
	Coil Voltage	230V ac
	Contact Configuration	4PDT
	Mounting Type	PCB Mount
	Switching Current	12A
	Number of Poles	4
	Series	56 Series
	Latching	No
	Terminal Type	Through Hole
	Maximum Switching Voltage AC	250V ac
	Maximum Switching Voltage DC	220V dc
	Maximum Switching Current AC	20 A
	Length	40.8mm
	Coil Resistance	7700Ω
	Coil Power	2W
	Height	37.1mm
	Standards Met	cURus, EAC
	Depth	27.7mm
	Contact Material	Silver Alloy
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	+70°C
	Isolation Coil To Contact	5kV
	Life	100000 Cycles
	Priced to Clear	Yes
	Number of Coils	Single
	Maximum Switching Power AC	3 kVA
	Application	Power

	Select all
	Brand Finder
	Coil Voltage 230V ac
	Contact Configuration 4PDT
	Mounting Type PCB Mount
	Switching Current 12A
	Number of Poles 4
	Series 56 Series
	Latching No
	Terminal Type Through Hole
	Maximum Switching Voltage AC 250V ac
	Maximum Switching Voltage DC 220V dc
	Maximum Switching Current AC 20 A
	Length 40.8mm
	Coil Resistance 7700Ω
	Coil Power 2W
	Height 37.1mm
	Standards Met cURus, EAC
	Depth 27.7mm
	Contact Material Silver Alloy
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature +70°C
	Isolation Coil To Contact 5kV
	Life 100000 Cycles
	Priced to Clear Yes
	Number of Coils Single
	Maximum Switching Power AC 3 kVA
	Application Power
