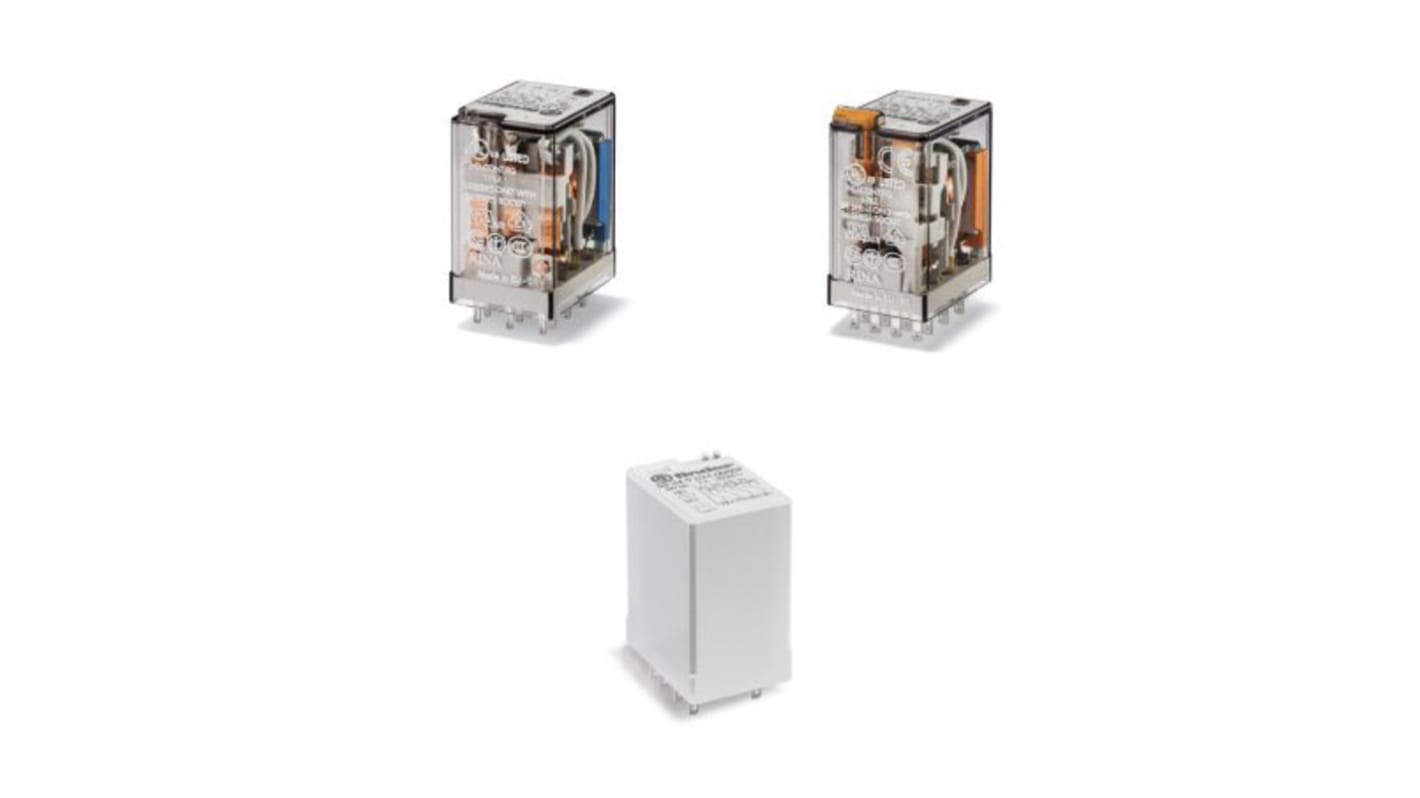

Finder PCB Power Relay, 230V ac Coil, 7A Switching Current, 4PDT
- RS Stock No.:
- 182-9938
- Mfr. Part No.:
- 55.34.8.230.0050
- Brand:
- Finder
Subtotal (1 unit)*
£14.62
(exc. VAT)
£17.54
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 34 unit(s) ready to ship
- Plus 3 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £14.62 |
*price indicative
- RS Stock No.:
- 182-9938
- Mfr. Part No.:
- 55.34.8.230.0050
- Brand:
- Finder
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Finder | |
| Coil Voltage | 230V ac | |
| Product Type | Power Relay | |
| Contact Configuration | 4PDT | |
| Mount Type | PCB | |
| Series | 55 | |
| Terminal Type | PCB Pin | |
| Switching Current | 7A | |
| Switching AC Voltage | 250V ac | |
| Switching Power | 300mW | |
| Minimum Operating Temperature | -40°C | |
| Switching DC Voltage | 30V dc | |
| Coil Resistance | 17kΩ | |
| Maximum Operating Temperature | 85°C | |
| Length | 27.7mm | |
| Standards/Approvals | RoHS | |
| Width | 20.7mm | |
| Height | 37.2mm | |
| Coil Power | 1W | |
| Contact Material | Silver Alloy | |
| Select all | ||
|---|---|---|
Brand Finder | ||
Coil Voltage 230V ac | ||
Product Type Power Relay | ||
Contact Configuration 4PDT | ||
Mount Type PCB | ||
Series 55 | ||
Terminal Type PCB Pin | ||
Switching Current 7A | ||
Switching AC Voltage 250V ac | ||
Switching Power 300mW | ||
Minimum Operating Temperature -40°C | ||
Switching DC Voltage 30V dc | ||
Coil Resistance 17kΩ | ||
Maximum Operating Temperature 85°C | ||
Length 27.7mm | ||
Standards/Approvals RoHS | ||
Width 20.7mm | ||
Height 37.2mm | ||
Coil Power 1W | ||
Contact Material Silver Alloy | ||
Finder 55 series Power Relay, 230V AC Coil Voltage, 4PDT Contact Configuration - 55.34.8.230.0050
This power relay is a critical component in automation and electrical management. Designed for PCB mounting, it operates at a coil voltage of 230V AC and features a 4PDT contact configuration. The relay measures 27.7mm in length, 20.7mm in depth, and 37.2mm in height, ensuring a compact fit in various electrical applications.
Features & Benefits
• Offers a maximum switching voltage of 250V AC for versatile use
• Can handle up to 7A, making it effective for various loads
• Features silver alloy contacts for enhanced reliability and durability
• Includes a high insulation rating of 4 kV between coil and contacts
• Operates effectively within a temperature range of -40°C to +85°C
• Capable of enduring 150,000 operational cycles for lasting performance
Applications
• Used for automation in blinds, grilles, and shutters
• Suitable for control panels and electrical distribution systems
• Integrates in hoists and cranes for operational control
• Ideal for lighting control in road and tunnel
• Utilised in shipyards for efficient power management
What is the lifespan of this relay under normal operating conditions?
This relay is designed to endure up to 150,000 electrical cycles, ensuring long-term reliability for your applications.
How does the insulation between coils and contacts enhance safety?
The 4 kV insulation rating protects against voltage spikes, significantly reducing the risk of failure or short circuits during operation.
Can this relay be used in high-temperature environments?
Yes, it is operationally rated for temperatures ranging from -40°C to +85°C, making it suitable for diverse environmental conditions.
