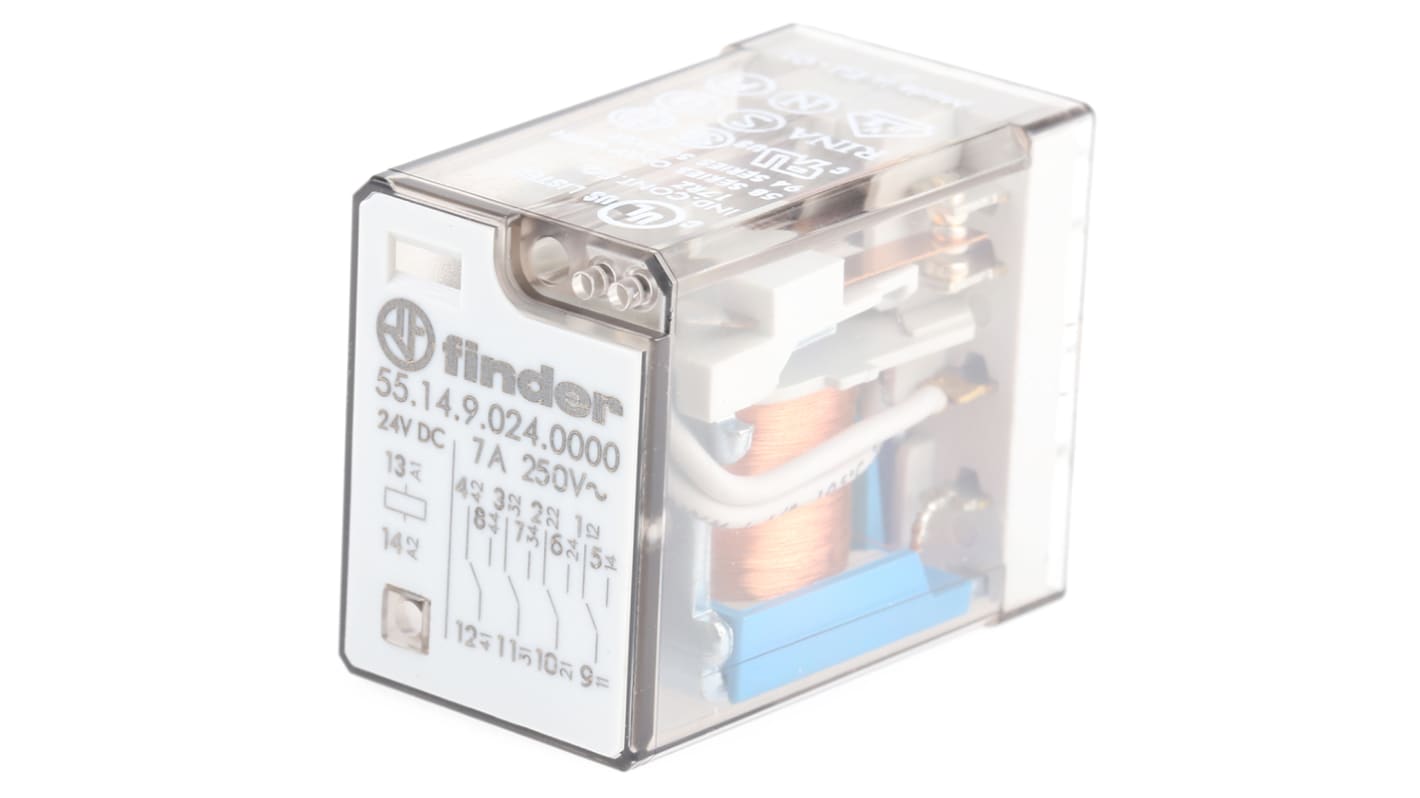

Finder PCB Mount Power Relay, 24V dc Coil, 7A Switching Current, 4PDT

RS Stock No.:: 245-2273
Distrelec Article No.:: 137-44-405
Mfr. Part No.:: 55.14.9.024.0000
Brand:: Finder

Finder PCB Mount Power Relay, 24V dc Coil, 7A Switching Current, 4PDT

Bulk discount available

Subtotal (1 unit)*

£12.59

(exc. VAT)

£15.11

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

69 unit(s) ready to ship
Plus 51 unit(s) ready to ship from another location
Plus 100 unit(s) shipping from 07 November 2025

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 - 9	£12.59
10 - 24	£11.58
25 - 49	£11.06
50 - 99	£10.69
100 +	£9.80

*price indicative

RS Stock No.:: 245-2273
Distrelec Article No.:: 137-44-405
Mfr. Part No.:: 55.14.9.024.0000
Brand:: Finder

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Finder
	Coil Voltage	24V dc
	Contact Configuration	4PDT
	Mounting Type	PCB Mount
	Switching Current	7A
	Number of Poles	4
	Series	55 Series
	Latching	No
	Terminal Type	Through Hole
	Maximum Switching Voltage AC	250V ac
	Length	27.7mm
	Coil Resistance	600Ω
	Coil Power	1W
	Maximum Operating Temperature	+85°C
	Standards Met	CCC, CE, cLUus, CSA, EAC, ENEC03, LR, RINA, VDE
	Depth	20.7mm
	Minimum Operating Temperature	-40°C
	Height	35.8mm
	Isolation Coil To Contact	4kV
	Contact Material	Silver Alloy
	Life	150000 Cycles
	Maximum Switching Power AC	1.75 kVA
	Application	Power
	Dimensions	20.7x35.8x27.7mm

	Select all
	Brand Finder
	Coil Voltage 24V dc
	Contact Configuration 4PDT
	Mounting Type PCB Mount
	Switching Current 7A
	Number of Poles 4
	Series 55 Series
	Latching No
	Terminal Type Through Hole
	Maximum Switching Voltage AC 250V ac
	Length 27.7mm
	Coil Resistance 600Ω
	Coil Power 1W
	Maximum Operating Temperature +85°C
	Standards Met CCC, CE, cLUus, CSA, EAC, ENEC03, LR, RINA, VDE
	Depth 20.7mm
	Minimum Operating Temperature -40°C
	Height 35.8mm
	Isolation Coil To Contact 4kV
	Contact Material Silver Alloy
	Life 150000 Cycles
	Maximum Switching Power AC 1.75 kVA
	Application Power
	Dimensions 20.7x35.8x27.7mm

COO (Country of Origin):: IT

Finder 55 Series Power Relay, 4PDT Contact Configuration, 24V DC Coil Voltage - 55.14.9.024.0000

This power relay is a versatile component designed for industrial applications. With a compact size of 20.7x35.8x27.7mm, it accommodates a coil voltage of 24 V DC and provides a reliable solution for various switching tasks. The 4PDT configuration makes it ideal for handling multiple circuits simultaneously, ensuring efficient performance in demanding environments.

Features & Benefits

• Operates at a coil voltage of 24 V DC
• Supports a maximum switching current of 7 A
• Designed for PCB mounting to save space
• Insulation between coil and contact rated at 4 kV
• Temperature range from -40 °C to +85 °C for reliability
• Meets international standards including CCC and CE

Applications

• Utilised in automation for blinds and shutters
• Employed in control panels for electrical distribution
• Suitable for hoists and cranes in industrial settings
• Ideal for switching road and tunnel lighting systems

What are the key technical specifications of this relay?

The relay features a 4PDT contact configuration, with a maximum switching voltage of 250 V AC and a coil resistance of 600 Ω. It can handle up to 1.75 kVA of switching power, ensuring robust electrical performance.

How does this relay's temperature rating affect its functionality?

With an operational range from -40 °C to +85 °C, it can function effectively in extreme environments, making it suitable for outdoor and heavy-duty applications where temperature fluctuations are prevalent.

Can this relay be used for high voltage applications?

Yes, it is rated for high voltage switching, with a maximum switching voltage of 250 V AC, making it appropriate for various industrial control operations that involve high power circuits.

Approvals

UL; CSA; VDE
