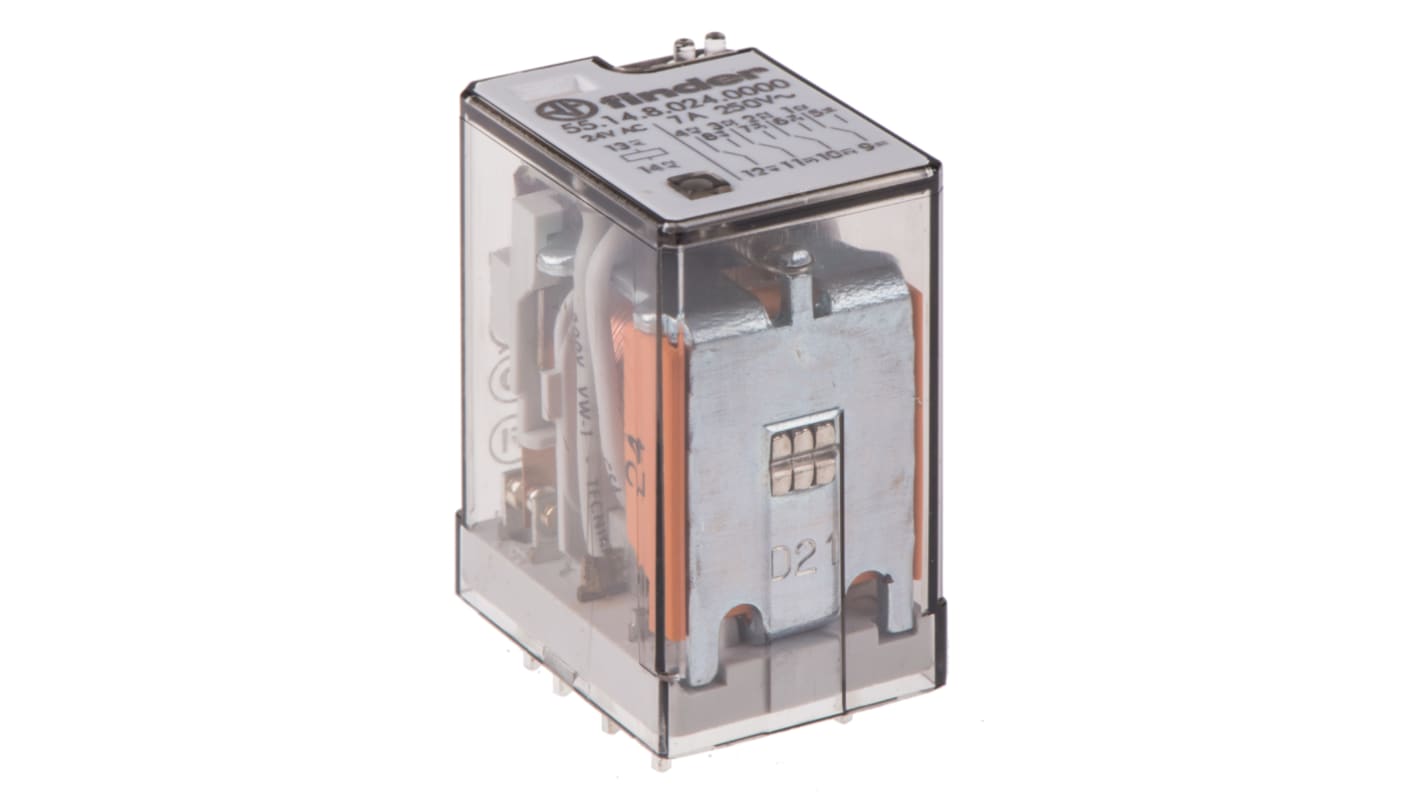

Finder PCB Mount Power Relay, 24V ac Coil, 7A Switching Current, 4PDT

RS Stock No.:: 245-2289
Distrelec Article No.:: 137-44-406
Mfr. Part No.:: 55.14.8.024.0000
Brand:: Finder

Finder PCB Mount Power Relay, 24V ac Coil, 7A Switching Current, 4PDT

Bulk discount available

Subtotal (1 unit)*

£12.24

(exc. VAT)

£14.69

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

115 unit(s) ready to ship
Plus 3 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 - 9	£12.24
10 - 24	£11.26
25 - 49	£10.77
50 - 99	£10.40
100 +	£9.55

*price indicative

RS Stock No.:: 245-2289
Distrelec Article No.:: 137-44-406
Mfr. Part No.:: 55.14.8.024.0000
Brand:: Finder

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Finder
	Coil Voltage	24V ac
	Contact Configuration	4PDT
	Mounting Type	PCB Mount
	Switching Current	7A
	Number of Poles	4
	Series	55 Series
	Latching	No
	Terminal Type	Through Hole
	Maximum Switching Voltage AC	250V ac
	Length	27.7mm
	Coil Resistance	190Ω
	Coil Power	1.5W
	Isolation Coil To Contact	4kV
	Maximum Operating Temperature	+85°C
	Contact Material	Silver Alloy
	Minimum Operating Temperature	-40°C
	Depth	20.7mm
	Height	35.8mm
	Maximum Switching Power AC	1.75 kVA
	Application	Power

	Select all
	Brand Finder
	Coil Voltage 24V ac
	Contact Configuration 4PDT
	Mounting Type PCB Mount
	Switching Current 7A
	Number of Poles 4
	Series 55 Series
	Latching No
	Terminal Type Through Hole
	Maximum Switching Voltage AC 250V ac
	Length 27.7mm
	Coil Resistance 190Ω
	Coil Power 1.5W
	Isolation Coil To Contact 4kV
	Maximum Operating Temperature +85°C
	Contact Material Silver Alloy
	Minimum Operating Temperature -40°C
	Depth 20.7mm
	Height 35.8mm
	Maximum Switching Power AC 1.75 kVA
	Application Power

COO (Country of Origin):: IT

Finder Series 55 Power Relay, 24V AC Coil Voltage, 4PDT Contact Configuration - 55.14.8.024.0000

This power relay is designed for effective switching in a range of applications that require a robust solution. With a coil voltage of 24V AC and a 4PDT (four pole, double throw) configuration, it is suitable for use in automation and electrical control systems. Its features, including high voltage operation and a compact PCB mount design, make it appropriate for industrial environments.

Features & Benefits

• Operates with a coil voltage of 24V AC for compatibility
• Designed for PCB mounting to conserve space in applications
• Delivers a switching current of up to 7A for steady performance
• Incorporates silver alloy contacts for enhanced conductivity
• Withstands a maximum switching voltage of 250V AC efficiently
• Provides insulation between the coil and contacts up to 4kV

Applications

• Utilised in control panels for automation systems
• Suitable for switching in road and tunnel lighting
• Commonly used in hoists and cranes for operational management
• Applied in electrical distribution panels for better control
• Suitable for use in circuit breakers and switches for enhanced safety

What is the maximum load this unit can handle?

The relay supports a maximum switching power of 1.75kVA under standard operating conditions and is rated for an AC load capacity of up to 350VA in certain applications.

Can it operate in extreme environments?

Yes, it is rated for operational temperatures between -40°C and +85°C, making it suitable for both cold and hot conditions.

How can I install this power relay?

The relay is designed for easy PCB mounting with through-hole terminals, enabling quick assembly and integration into control circuits.

Is it suitable for DC applications?

This specific model is primarily intended for AC use, and it is advisable to refer to the technical specifications for voltage ratings if considering DC applications.

Approvals

UL; CSA; VDE
