MPN

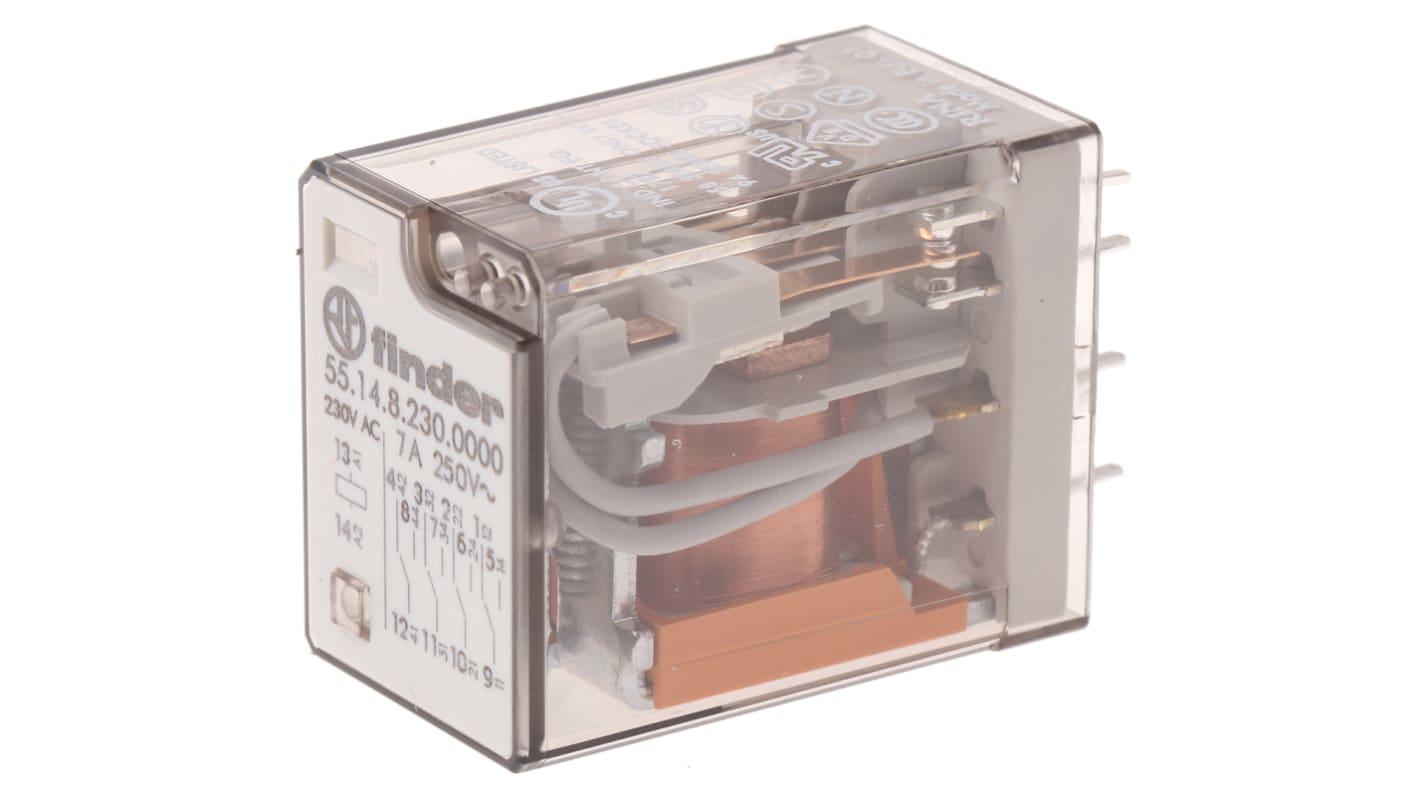

Finder PCB Mount Power Relay, 230V ac Coil, 7A Switching Current, 4PDT

RS Stock No.:: 245-2302
Distrelec Article No.:: 303-99-405
Mfr. Part No.:: 55.14.8.230.0000
Brand:: Finder

Finder PCB Mount Power Relay, 230V ac Coil, 7A Switching Current, 4PDT

Save 21% when you buy 100 units

Subtotal (1 unit)*

£13.52

(exc. VAT)

£16.22

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

77 unit(s) ready to ship
Plus 30 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 - 9	£13.52
10 - 24	£12.44
25 - 49	£11.89
50 - 99	£11.49
100 +	£10.55

*price indicative

Alternative

This product is not currently available. Here is our alternative recommendation.

Finder 96 8 Pin 250V ac PCB Mount Relay Socket, for use with 56.34

RS Stock No.: 245-2245

Each

£3.52

(exc. VAT)

£4.22

(inc. VAT)

RS Stock No.:: 245-2302
Distrelec Article No.:: 303-99-405
Mfr. Part No.:: 55.14.8.230.0000
Brand:: Finder

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Finder
	Coil Voltage	230V ac
	Contact Configuration	4PDT
	Mounting Type	PCB Mount
	Switching Current	7A
	Number of Poles	4
	Series	55 Series
	Latching	No
	Terminal Type	Through Hole
	Maximum Switching Voltage AC	250V ac
	Maximum Switching Voltage DC	220V dc
	Maximum Switching Current AC	15 A
	Length	27.7mm
	Coil Resistance	17000Ω
	Coil Power	1.5W
	Isolation Coil To Contact	4kV
	Maximum Operating Temperature	+85°C
	Minimum Operating Temperature	-40°C
	Standards Met	cURus, EAC
	Height	35.8mm
	Depth	20.7mm
	Life	150000 Cycles
	Contact Material	Silver Alloy
	Number of Coils	Single
	Maximum Switching Power AC	1.75 kVA
	Application	Power

	Select all
	Brand Finder
	Coil Voltage 230V ac
	Contact Configuration 4PDT
	Mounting Type PCB Mount
	Switching Current 7A
	Number of Poles 4
	Series 55 Series
	Latching No
	Terminal Type Through Hole
	Maximum Switching Voltage AC 250V ac
	Maximum Switching Voltage DC 220V dc
	Maximum Switching Current AC 15 A
	Length 27.7mm
	Coil Resistance 17000Ω
	Coil Power 1.5W
	Isolation Coil To Contact 4kV
	Maximum Operating Temperature +85°C
	Minimum Operating Temperature -40°C
	Standards Met cURus, EAC
	Height 35.8mm
	Depth 20.7mm
	Life 150000 Cycles
	Contact Material Silver Alloy
	Number of Coils Single
	Maximum Switching Power AC 1.75 kVA
	Application Power

Finder 55 Series Power Relay, 230V AC Coil Voltage, 4PDT Contact Configuration - 55.14.8.230.0000

This power relay is designed for efficient switching applications in various environments. With a coil voltage of 230V AC and a 4PDT configuration, it operates reliably across a temperature range of -40 °C to +85 °C. The compact dimensions measure 27.7 mm in length, 20.7 mm in depth, and 35.8 mm in height, making it well-suited for PCB mount installations. The power relay efficiently handles a maximum switching current of 15 A and features robust silver alloy contacts.

Features & Benefits

• Provides efficient switching with a maximum current capability of 15 A
• Designed for PCB mounting to minimise space requirements
• High voltage isolation of 4 kV ensures enhanced safety
• Utilises silver alloy contacts for superior conductivity
• Operates reliably in a temperature range of -40 °C to +85 °C
• Suitable for automation in various electrical applications

Applications

• Control and management of electrical power in automation systems
• Used in circuit breakers and electrical distribution panels
• Suitable for in road lighting and tunnel illumination
• Ideal for marine such as shipyards and hoists
• Employed in control panels for managing mechanical equipment

What is the coil power consumption of this device?

The coil power consumption is 1.5 W, ensuring low energy usage during operation.

How does this relay handle high voltage applications?

It offers a maximum switching voltage of 250V AC and 220V DC, making it suitable for high voltage tasks.

Can this relay maintain performance in extreme temperatures?

Yes, it operates effectively across a broad temperature range from -40 °C to +85 °C.

What type of contact material is used for this relay?

It features silver alloy contacts, enhancing the effectiveness and longevity of the switching operations.

What are the advantages of through-hole mounting for this relay?

Through-hole mounting provides robust connectivity and ensures a secure installation on PCB, supporting the relay’s reliability in various applications.

Approvals

UL; CSA; VDE
