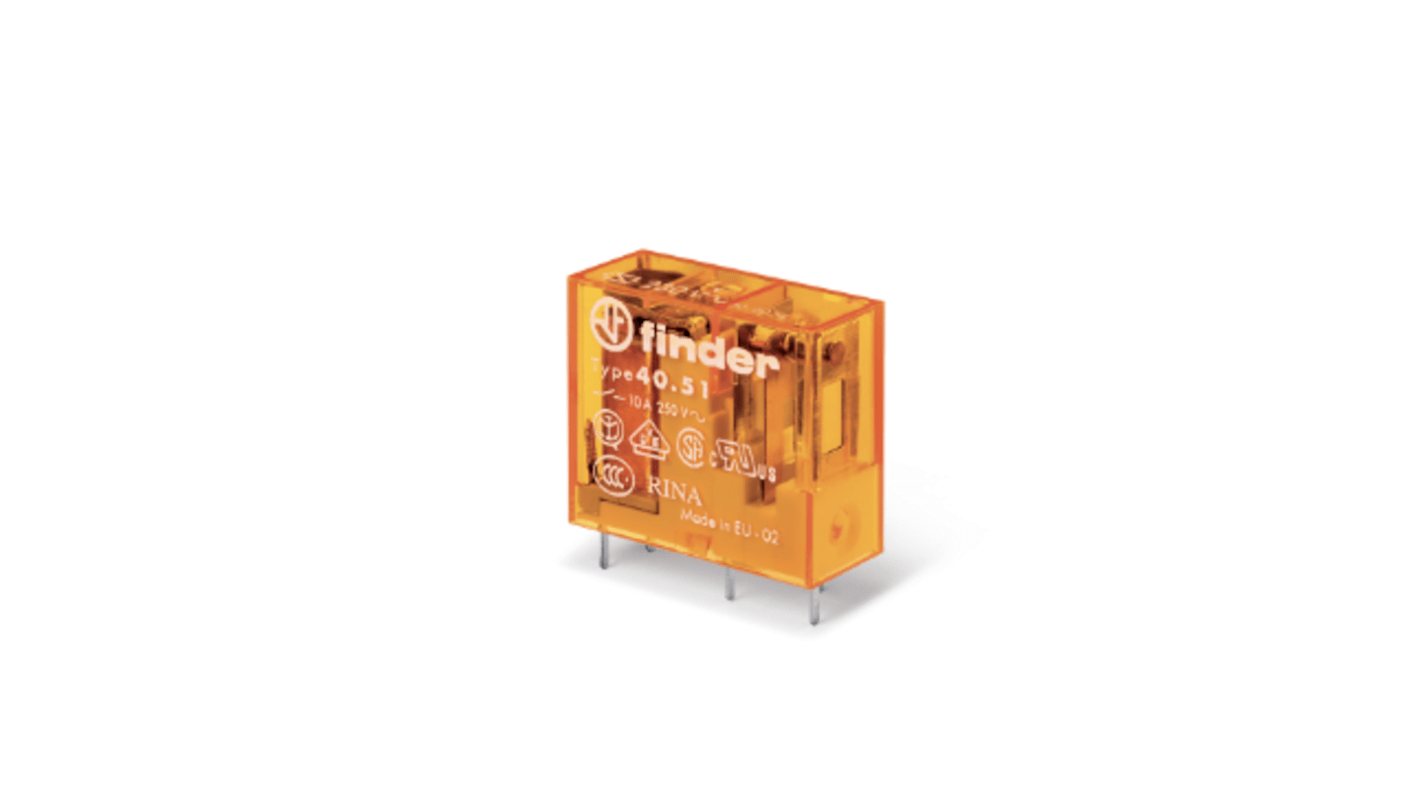

Finder PCB Mount Power Relay, 230V ac Coil, 12A Switching Current, SPST
- RS Stock No.:
- 257-7362
- Mfr. Part No.:
- 405182300300
- Brand:
- Finder
Subtotal (1 unit)*
£10.82
(exc. VAT)
£12.98
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 4 unit(s) ready to ship
- Plus 20 unit(s) shipping from 09 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £10.82 |
*price indicative
- RS Stock No.:
- 257-7362
- Mfr. Part No.:
- 405182300300
- Brand:
- Finder
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Finder | |
Coil Voltage | 230V ac | |
Contact Configuration | SPST | |
Mounting Type | PCB Mount | |
Switching Current | 12A | |
Number of Poles | 1 | |
Latching | No | |
Series | 40 | |
Maximum Switching Voltage AC | 400V ac | |
Maximum Switching Voltage DC | 125V dc | |
Maximum Switching Current AC | 20 A | |
Coil Power | 500mW | |
Contact Material | Silver Alloy | |
Standards Met | cURus, EAC | |
Life | 200000 Cycles | |
Minimum Operating Temperature | -40°C | |
Isolation Coil To Contact | 6kV | |
Maximum Operating Temperature | +85°C | |
Number of Coils | Single | |
Select all | ||
---|---|---|
Brand Finder | ||
Coil Voltage 230V ac | ||
Contact Configuration SPST | ||
Mounting Type PCB Mount | ||
Switching Current 12A | ||
Number of Poles 1 | ||
Latching No | ||
Series 40 | ||
Maximum Switching Voltage AC 400V ac | ||
Maximum Switching Voltage DC 125V dc | ||
Maximum Switching Current AC 20 A | ||
Coil Power 500mW | ||
Contact Material Silver Alloy | ||
Standards Met cURus, EAC | ||
Life 200000 Cycles | ||
Minimum Operating Temperature -40°C | ||
Isolation Coil To Contact 6kV | ||
Maximum Operating Temperature +85°C | ||
Number of Coils Single | ||
RoHS Status: Exempt
- COO (Country of Origin):
- IT
Finder Series 40 Power Relay, 230V AC Coil Voltage, 12A Switching Current - 405182300300
This power relay is a versatile component designed for PCB mounting applications. Featuring a coil voltage of 230V AC, this SPST power relay efficiently operates at a maximum switching voltage of 400V AC, with a robust switching current capacity of up to 12A. The relay's insulation and contact isolation is rated at an impressive 6kV, ensuring reliable performance across various environments.
Features & Benefits
• Supports a 230V AC coil voltage to meet standard applications
• SPST configuration allows for simple on-off control
• Capable of handling up to 12A switching current for power management
• Designed for PCB mounting, enabling compact integration into circuits
• Reliable AgNi contact material enhances durability and performance
• Exceptional lifespan of 200,000 cycles ensures long-term usage
• SPST configuration allows for simple on-off control
• Capable of handling up to 12A switching current for power management
• Designed for PCB mounting, enabling compact integration into circuits
• Reliable AgNi contact material enhances durability and performance
• Exceptional lifespan of 200,000 cycles ensures long-term usage
Applications
• Used for automation in blinds, grilles, and shutters
• Utilised in control panels for medical and dental equipment
• Ideal for electrical distribution panel
• Employed in electronic circuit boards for modular assembly
• Suitable for door and gate openers in security
• Utilised in control panels for medical and dental equipment
• Ideal for electrical distribution panel
• Employed in electronic circuit boards for modular assembly
• Suitable for door and gate openers in security
What is the maximum voltage that can be switched with this relay?
This device can switch a maximum voltage of 400V AC, making it suitable for high voltage applications.
How does the contact configuration affect its functionality?
The SPST configuration offers a straightforward means of controlling power to devices, making it ideal for basic switching requirements.
What thermal range can this relay operate effectively within?
It can function reliably in temperatures ranging from -40°C to +85°C, ensuring adaptability to various environments.
Can the relay accommodate different coil configurations?
This relay features a single coil design which simplifies its integration into electrical circuits while maintaining efficiency.
