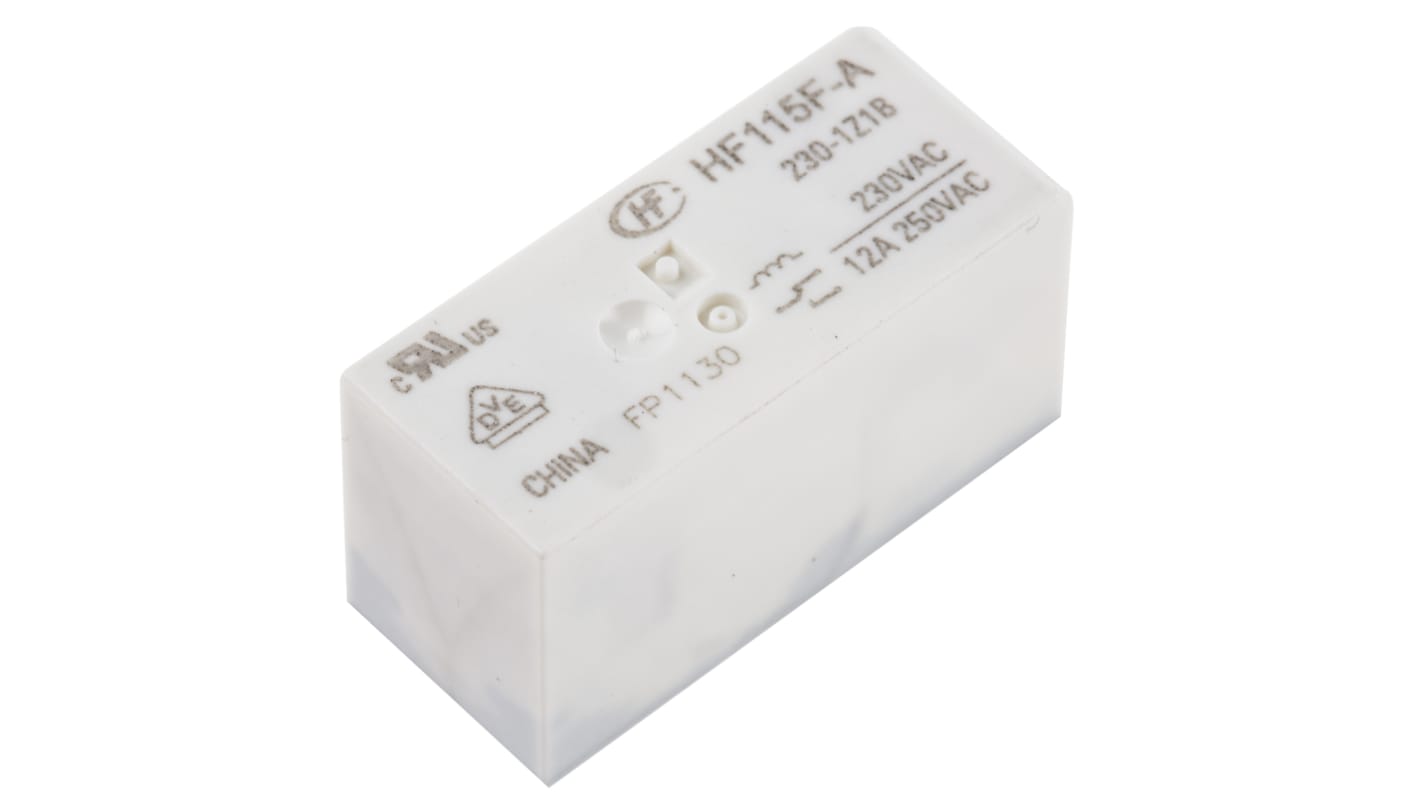

RS PRO PCB Power Relay, 230V ac Coil, 12A Switching Current, SPDT

View all Power Relays
Bulk discount available

Subtotal (1 unit)*

£9.23

(exc. VAT)

£11.08

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 69 unit(s) ready to ship
  • Plus 72 unit(s) ready to ship from another location
  • Plus 502 unit(s) shipping from 06 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units
Per unit
1 - 19£9.23
20 - 49£8.64
50 - 99£7.79
100 - 249£6.95
250 +£5.83

*price indicative

Packaging Options:
RS Stock No.:
800-4479
Distrelec Article No.:
304-04-905
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Coil Voltage

230V ac

Product Type

Power Relay

Contact Configuration

SPDT

Mount Type

PCB

Series

HF

Terminal Type

Solder

Switching Current

12A

Switching AC Voltage

300V ac

Switching DC Voltage

300V dc

Switching Power

3kVA

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

70°C

Coil Resistance

32.5kΩ

Height

15.7mm

Standards/Approvals

CQC, UR

Length

29mm

Coil Power

750mW

Width

12.7mm

Contact Material

Silver Alloy

Contact Resistance

100mΩ

COO (Country of Origin):
CN

High Inrush Relays


High inrush: TV-5 80A (at 125Vac)

Low profile: 15.7mm max height

5mm pinning

5kV dielectric strength (between coil and contacts)

Surge voltage up to 10kV (between coil and contacts)

Wash tight

Creepage distance 10mm

Conforms to VDE 0435/ 0631/ 0700

Approvals

UL (File no. E134517), VDE (File no.116934), CQC (File no. CQC02001001951)

Standards

IEC 60335-1
