MPN

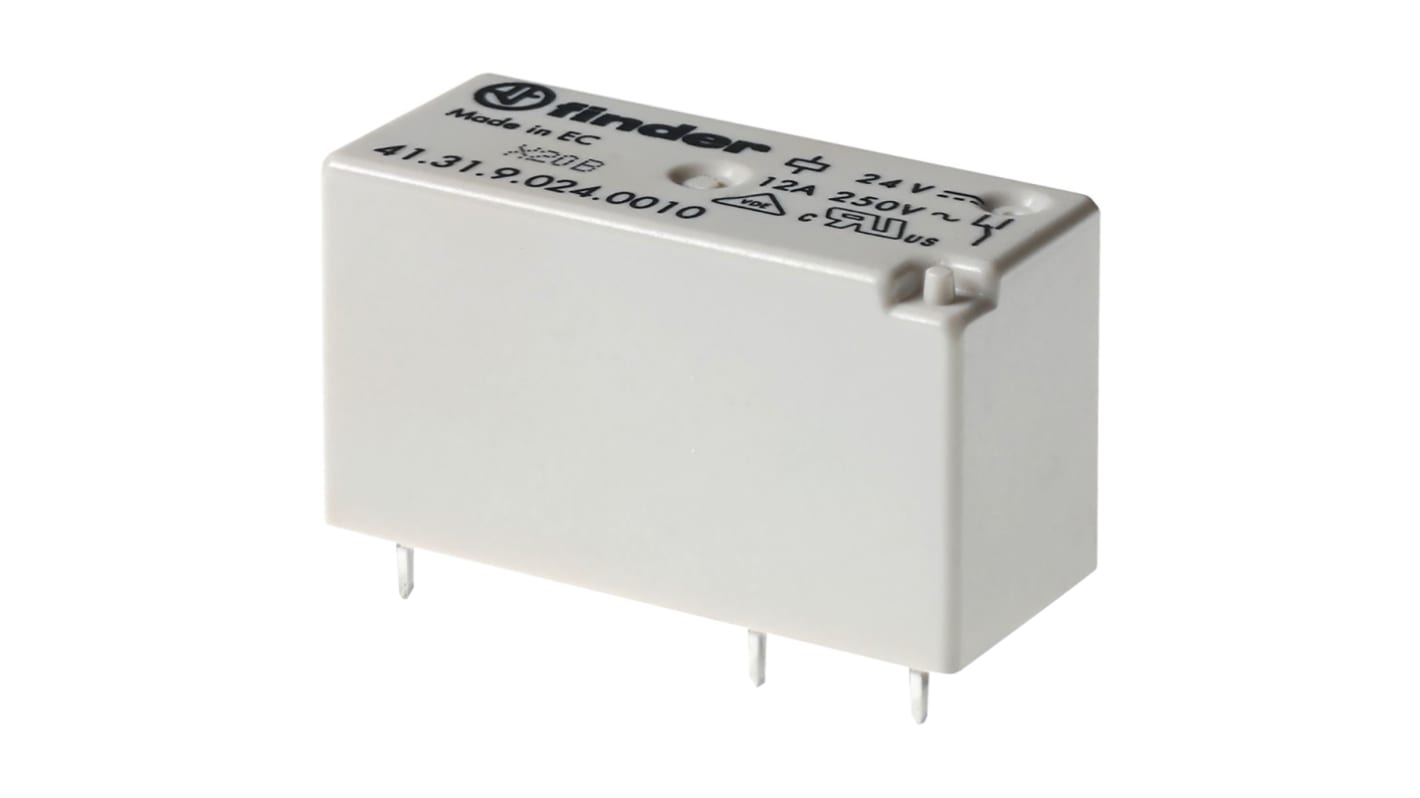

Finder PCB Mount Power Relay, 24V ac Coil, 12A Switching Current, SPDT

RS Stock No.:: 894-9417
Mfr. Part No.:: 41.31.8.024.0000
Brand:: Finder

Finder PCB Mount Power Relay, 24V ac Coil, 12A Switching Current, SPDT

Bulk discount available

Subtotal (1 unit)*

£6.92

(exc. VAT)

£8.30

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

2 unit(s) ready to ship
Plus 11 unit(s) ready to ship from another location
Plus 46 unit(s) shipping from 25 September 2025

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 - 4	£6.92
5 - 9	£6.57
10 +	£6.34

*price indicative

RS Stock No.:: 894-9417
Mfr. Part No.:: 41.31.8.024.0000
Brand:: Finder

41 Series - 41.52, 41.31 & 41.61

PCB mount power relays with ac and dc coils.

Low profile
Flux proof, RTII
Minimum switching load 300mW
8mm creepage and clearance between coil and contacts
Dimensions 15.7x12.5x29 mm

Approvals

UL (Canada & US); VDE

Finder 41 Series Power Relay, 24V AC Coil Voltage, 12A Switching Current - 41.31.8.024.0000

This power relay is a versatile PCB mount relay designed for a range of applications requiring reliable switching. Engineered for 24V AC operation and with dimensions of 29 x 12.6 x 15.7 mm, this SPDT relay can handle switching currents of up to 12 A. With a robust isolation of 6 kV between the coil and contacts, it is suitable for demanding environments.

Features & Benefits

• Capable of switching 12 A for efficient control
• Designed for PCB mounting with a compact low profile
• High current capacity with a maximum switching voltage of 400V AC
• Features a silver alloy contact for enhanced conductivity
• Provides a wide operating temperature range from -40 °C to +70 °C
• Complies with various standards for reliable performance

Applications

• Utilised in medical and dental equipment
• Employed in industrial robots for precise control
• Integrated into building automation systems
• Ideal for control systems in lighting
• Used in timers for enhanced operational efficiency
• Serves in vending machines for automated transactions

What is the maximum switching capacity for this relay?

It can switch currents up to 12 A at a maximum voltage of 400V AC, making it suitable for high-power applications.

How does the contact material influence performance?

The silver alloy contact material provides excellent conductivity and ensures a longer operational life, reducing the need for frequent replacements.

Can this relay be used in outdoor environments?

While suitable for various applications, ensure the installation is protected from extreme weather conditions to maintain performance integrity.

What is the expected electrical lifespan under rated load conditions?

This relay is rated for an electrical life of approximately 60,000 cycles when operated under its specified conditions.

How does the low profile design benefit installations?

The compact height of 15.7 mm allows for space-saving designs on circuit boards, facilitating easier integration into tighter spaces.

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Finder
	Coil Voltage	24V ac
	Contact Configuration	SPDT
	Mounting Type	PCB Mount
	Switching Current	12A
	Number of Poles	1
	Series	41 Series
	Terminal Type	PCB Pin
	Maximum Switching Voltage AC	400V ac
	Maximum Switching Voltage DC	110V dc
	Maximum Switching Current AC	25 A
	Length	29mm
	Coil Power	400mW
	Maximum Operating Temperature	+70°C
	Contact Material	Silver Alloy
	Minimum Operating Temperature	-40°C
	Standards Met	cULus, EAC, PCT, RINA, UL, VDE
	Height	15.7mm
	Depth	12.6mm
	Life	60000 Cycles
	Isolation Coil To Contact	6kV
	Number of Coils	Single
	Dimensions	29 x 12.6 x 15.7mm

	Select all
	Brand Finder
	Coil Voltage 24V ac
	Contact Configuration SPDT
	Mounting Type PCB Mount
	Switching Current 12A
	Number of Poles 1
	Series 41 Series
	Terminal Type PCB Pin
	Maximum Switching Voltage AC 400V ac
	Maximum Switching Voltage DC 110V dc
	Maximum Switching Current AC 25 A
	Length 29mm
	Coil Power 400mW
	Maximum Operating Temperature +70°C
	Contact Material Silver Alloy
	Minimum Operating Temperature -40°C
	Standards Met cULus, EAC, PCT, RINA, UL, VDE
	Height 15.7mm
	Depth 12.6mm
	Life 60000 Cycles
	Isolation Coil To Contact 6kV
	Number of Coils Single
	Dimensions 29 x 12.6 x 15.7mm
