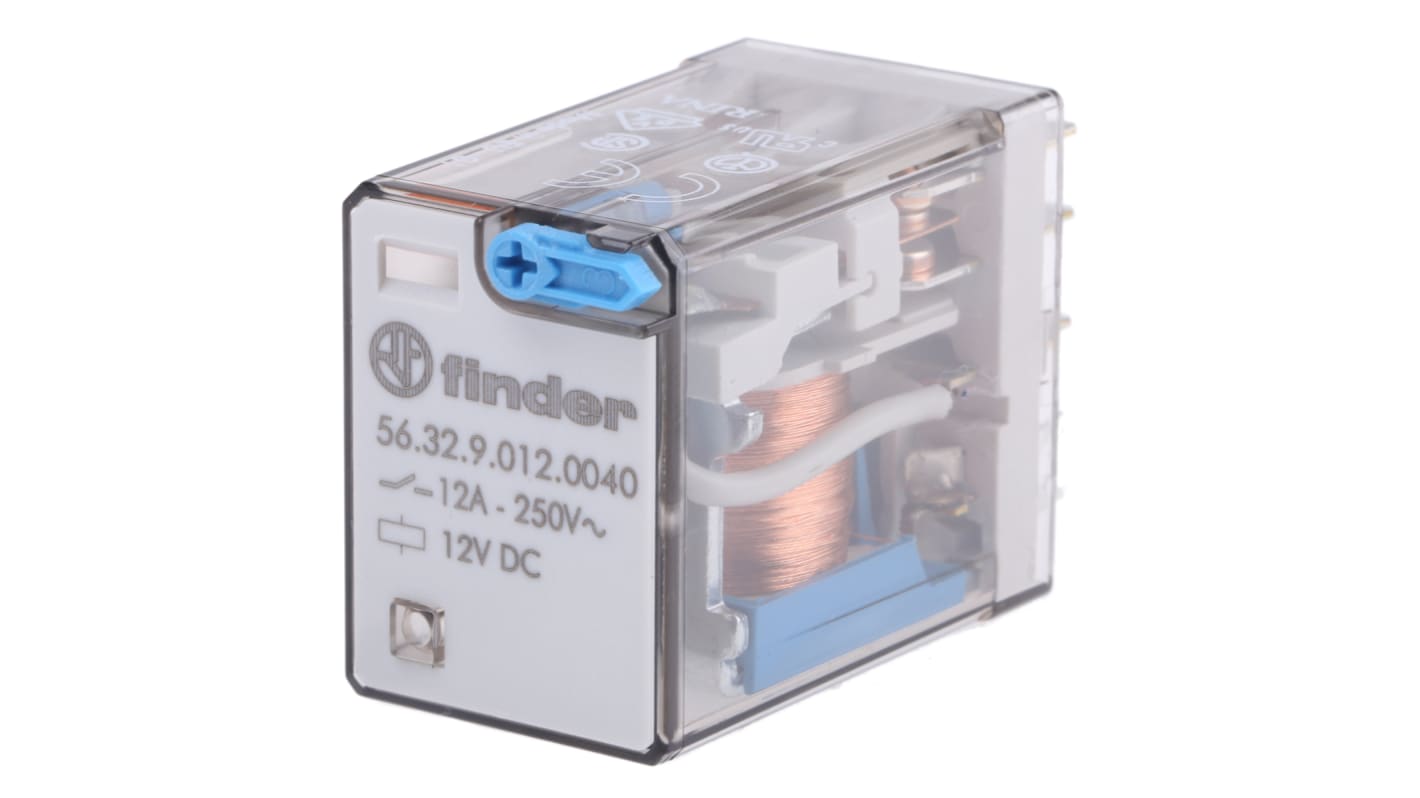

Finder Plug In Power Relay, 12V dc Coil, 12A Switching Current, DPDT

View all Power Relays
Bulk discount available

Subtotal (1 unit)*

£14.51

(exc. VAT)

£17.41

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 170 unit(s) ready to ship
  • Plus 57 unit(s) ready to ship from another location
  • Plus 999,999,829 unit(s) shipping from 07 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£14.51
5 - 9£14.06
10 +£13.45

*price indicative

RS Stock No.:
154-605
Mfr. Part No.:
56.32.9.012.0040
Brand:
Finder
Find similar products by selecting one or more attributes.
Select all

Brand

Finder

Coil Voltage

12V dc

Contact Configuration

DPDT

Mounting Type

Plug In

Switching Current

12A

Number of Poles

2

Latching

No

Series

56 Series

Terminal Type

Quick Connect

Maximum Switching Voltage AC

400V ac

Length

27.7mm

Coil Resistance

140Ω

Coil Power

1.5W

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

+70°C

Depth

20.7mm

Height

37.2mm

Contact Material

Silver Alloy

Maximum Switching Power AC

3 kVA

Application

General Purpose

COO (Country of Origin):
IT

Finder 56 series Power Relay, 12V DC Coil Voltage, 12A Switching Current - 56.32.9.012.0040


This power relay is a reliable component designed for various applications requiring robust control and management of electric power. The relay operates at a 12V DC coil voltage and features a double pole double throw (DPDT) configuration. Compact in size, it measures 27.7mm in length, 20.7mm in depth, and 37.2mm in height, making it suitable for space-constrained environments.

Features & Benefits


• Operates with a 12A switching current, ideal for various loads
• Quick connect terminal type simplifies installation and wiring
• Capable of switching up to 400V AC and 220V DC efficiently
• Silver alloy contact material enhances durability and performance
• Compact plug-in design allows for easy replacement and maintenance
• Meets CE standards ensuring compatibility with safety regulations

Applications


• Ideal for controlling industrial motors to enhance automation
• Used within control panels for electric power management
• Suitable for circuit breakers and switches in hardware systems
• Applicable in carousel warehouses for efficient storage solutions
• Utilised in vending machines ensuring reliable functionality

What are the operational temperature limits for this relay?


The relay can function efficiently in temperature ranges from -40°C to +70°C, ensuring reliability in extreme conditions.

How does the contact configuration improve performance?


The DPDT configuration allows for versatile switching options, effectively managing multiple circuits, thereby enhancing system flexibility and performance.

Can the relay handle high-voltage applications?


Yes, it is designed to switch voltages up to 400V AC and 220V DC, making it suitable for high-voltage applications in various industries.

What kind of maintenance does this relay require?


The relay benefits from minimal maintenance due to its robust design and long electrical life, rated at 100,000 cycles, although regular checks for connection integrity are advisable.

Is this relay suitable for outdoor use?


It is not rated for outdoor use

ensure installation is within an enclosure that protects against environmental factors to maintain optimal performance.
