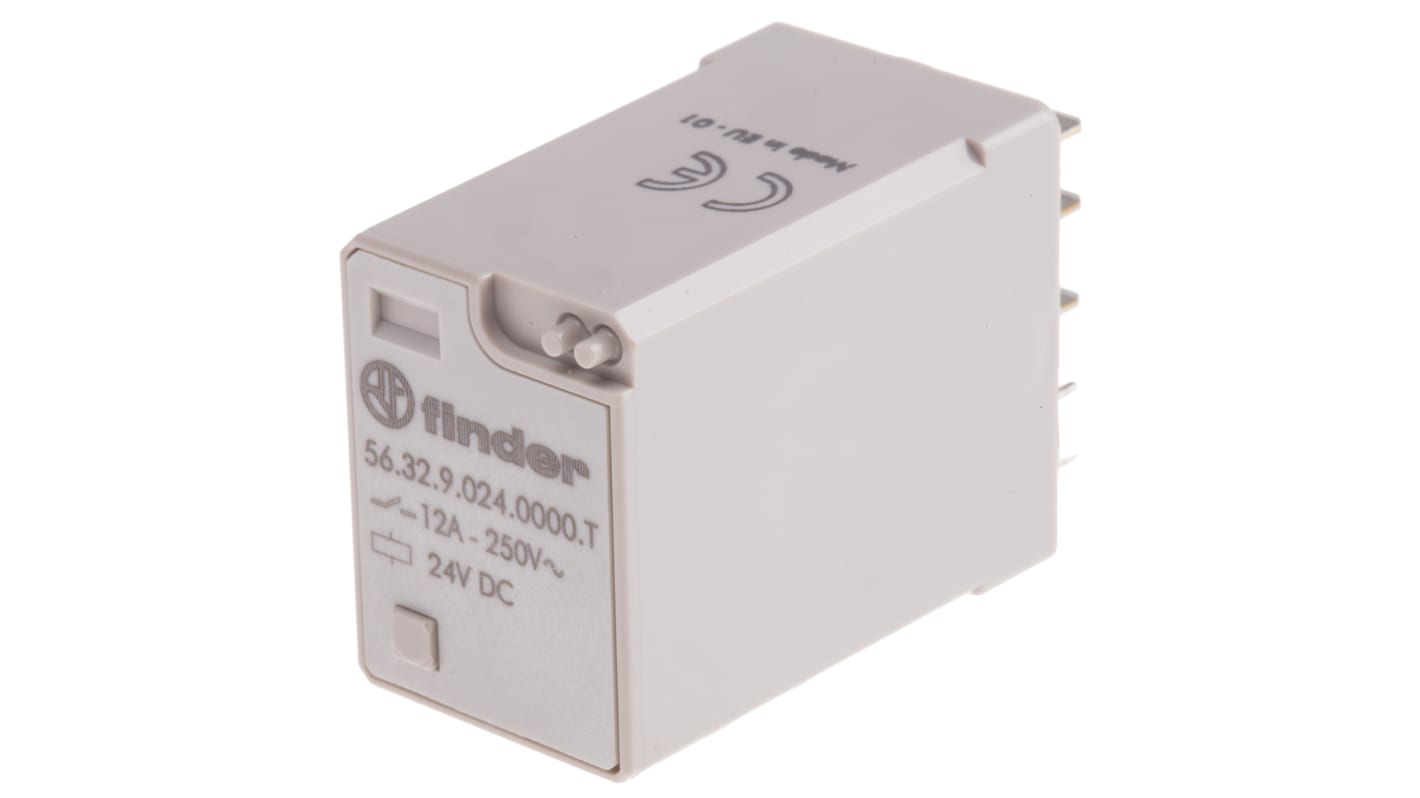

Finder Plug In Power Relay, 24V dc Coil, 12A Switching Current, DPDT

RS Stock No.:: 800-2815
Mfr. Part No.:: 56.32.9.024.0000T
Brand:: Finder

Finder Plug In Power Relay, 24V dc Coil, 12A Switching Current, DPDT

Bulk discount available

Subtotal (1 unit)*

£21.86

(exc. VAT)

£26.23

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

18 unit(s) ready to ship
Plus 76 unit(s) shipping from 09 October 2025
Plus 999,999,905 unit(s) shipping from 04 December 2025

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 - 4	£21.86
5 - 9	£21.20
10 +	£20.30

*price indicative

RS Stock No.:: 800-2815
Mfr. Part No.:: 56.32.9.024.0000T
Brand:: Finder

46 and 56 Series - Relays for Railway Applications

46 and 56 series plug-in power relays specially designed for railway applications.

8 A, 2 pole
12 A, 2 and 4 pole
DC coils with extended range
Complies with UNI CEI 11170-3 (protection against fire of materials), EN 61373 (resistance against random vibrations and shock, Category 1, Class B), EN 50155 (resistance to temperature and humidity, TX class)
Cadmium free
Different contact material options
Coil EMC suppression modules
Suitable with 97 series sockets and accessories

Finder 56 Series Power Relay, 24V DC Coil Voltage, 12A Switching Current - 56.32.9.024.0000T

This power relay is a versatile component specifically designed for industrial and railway applications. With a coil voltage of 24V DC and a compact design measuring 27.7mm in length, 20.7mm in depth, and 37.2mm in height, it optimally fits into various control panels. Its DPDT configuration allows for efficient switching operations and enables seamless integration in power control systems.

Features & Benefits

• Designed for a 12A switching current to handle substantial loads
• Quick connect terminals simplify installation and maintenance
• Robust silver alloy contacts ensure prolonged reliability and performance
• Insulation between the coil and contacts rated at 4 kV for enhanced safety
• Maximum switching voltage capabilities of 400V AC and 220V DC
• Mechanical life expectancy of up to 100,000 electrical cycles

Applications

• Utilised in railway signalling systems for safe power management
• Employed in industrial motors for efficient machine control
• Integrated within vending machines to operate dispensing mechanisms
• Applicable in the control and management of electric power distribution
• Used in circuit breakers and switches for reliable power interruption

What are the thermal operating limits of this relay?

The relay operates effectively in environments ranging from -40 °C to +70 °C, making it suitable for various climate conditions.

How can this relay improve system reliability?

With an electrical life of 100,000 cycles and robust insulation, it significantly reduces the risks of failure in critical applications.

Is it compatible with other relay terminals?

Yes, it features quick connect terminals that are widely compatible with common relay sockets, facilitating easy integration into existing systems.

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Finder
	Coil Voltage	24V dc
	Contact Configuration	DPDT
	Mounting Type	Plug In
	Switching Current	12A
	Number of Poles	2
	Latching	No
	Series	56 Series
	Terminal Type	Quick Connect
	Maximum Switching Voltage AC	400V ac
	Maximum Switching Voltage DC	220V dc
	Maximum Switching Current AC	20 A
	Length	27.7mm
	Coil Resistance	600Ω
	Coil Power	1.5W
	Height	37.2mm
	Contact Material	Silver Alloy
	Maximum Operating Temperature	+70°C
	Isolation Coil To Contact	4kV
	Depth	20.7mm
	Standards Met	cURus, EAC
	Life	100000 (Electrical) cycles
	Minimum Operating Temperature	-40°C
	Maximum Switching Power AC	3 kVA
	Number of Coils	Single
	Application	Railways

	Select all
	Brand Finder
	Coil Voltage 24V dc
	Contact Configuration DPDT
	Mounting Type Plug In
	Switching Current 12A
	Number of Poles 2
	Latching No
	Series 56 Series
	Terminal Type Quick Connect
	Maximum Switching Voltage AC 400V ac
	Maximum Switching Voltage DC 220V dc
	Maximum Switching Current AC 20 A
	Length 27.7mm
	Coil Resistance 600Ω
	Coil Power 1.5W
	Height 37.2mm
	Contact Material Silver Alloy
	Maximum Operating Temperature +70°C
	Isolation Coil To Contact 4kV
	Depth 20.7mm
	Standards Met cURus, EAC
	Life 100000 (Electrical) cycles
	Minimum Operating Temperature -40°C
	Maximum Switching Power AC 3 kVA
	Number of Coils Single
	Application Railways
