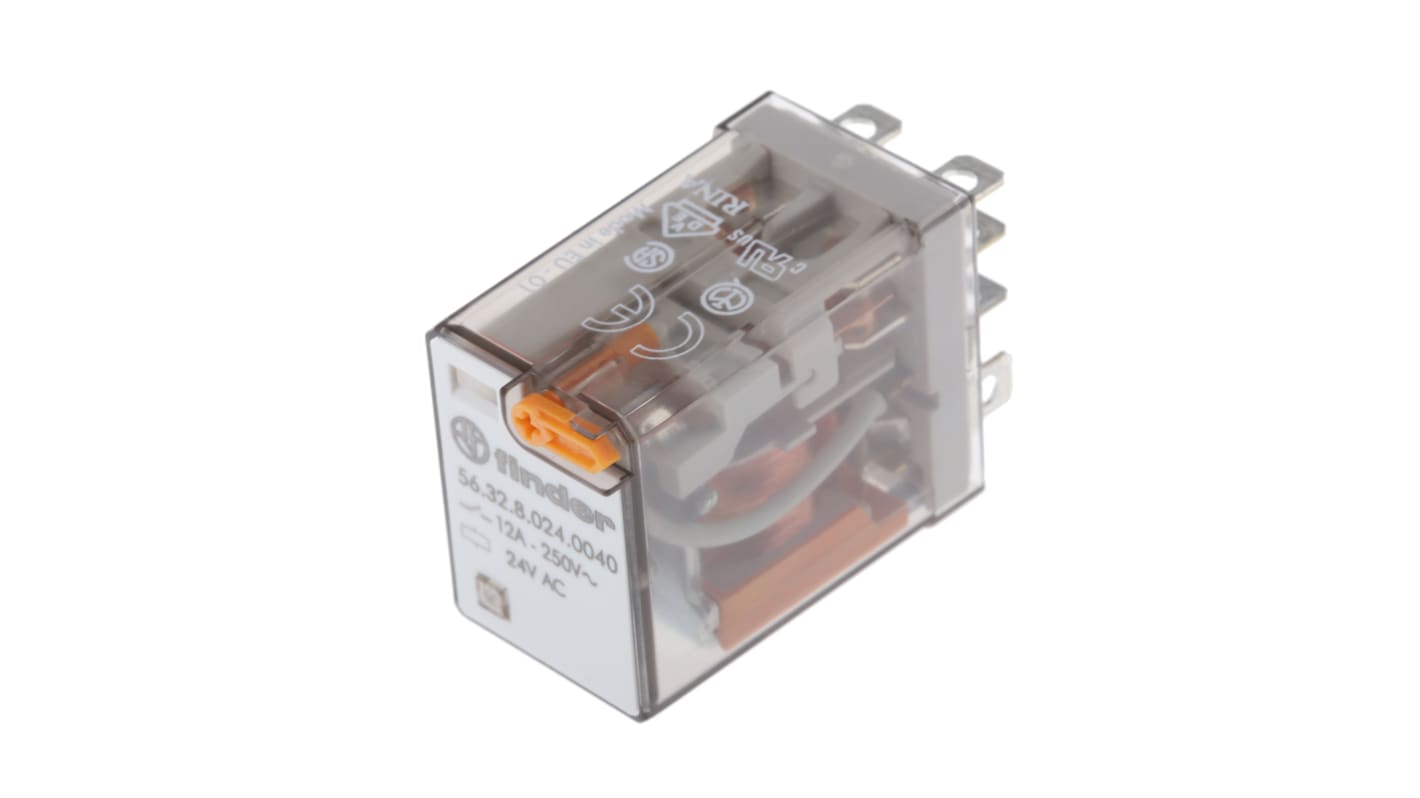

Finder Plug In Power Relay, 24V ac Coil, 12A Switching Current, DPDT

View all Power Relays
Bulk discount available

Subtotal (1 unit)*

£14.10

(exc. VAT)

£16.92

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 70 unit(s) ready to ship
  • Plus 19 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£14.10
5 - 9£13.66
10 +£13.07

*price indicative

RS Stock No.:
154-378
Mfr. Part No.:
56.32.8.024.0040
Brand:
Finder
Find similar products by selecting one or more attributes.
Select all

Brand

Finder

Coil Voltage

24V ac

Contact Configuration

DPDT

Mounting Type

Plug In

Switching Current

12A

Number of Poles

2

Series

56 Series

Latching

No

Terminal Type

Quick Connect

Maximum Switching Voltage AC

400V ac

Length

27.7mm

Coil Resistance

190Ω

Coil Power

1.5W

Minimum Operating Temperature

-40°C

Height

37.2mm

Depth

20.7mm

Contact Material

Silver Alloy

Maximum Operating Temperature

+70°C

Maximum Switching Power AC

3 kVA

Application

General Purpose

COO (Country of Origin):
IT

Finder 56 series Power Relay, 24V AC Coil Voltage, 12A Switching Current - 56.32.8.024.0040


This power relay is a versatile component within the 56 Series, ideal for general-purpose applications. Measuring 27.7mm in length, 20.7mm in depth, and 37.2mm in height, it is designed for plug-in installations. The relay operates at a coil voltage of 24V AC and supports a maximum switching current of 12A, ensuring reliable performance in various electrical settings.

Features & Benefits


• Provides dual-pole changeover contacts for complex switching
• Quick connect terminal type ensures effortless installation
• Silver alloy contact material enhances durability and conductivity
• AC relay with a maximum switching voltage of 400V
• Rated for up to 100,000 electrical cycles for longevity
• Operates effectively in ambient temperatures between -40°C and +70°C

Applications


• Used in industrial motors for efficient operation
• Suitable for control panels in automation systems
• Implements switching tasks in vending machines and controllers
• Effectively manages electrical loads in furnaces and ovens
• Utilised in carousel warehouses for optimised logistics

What is the electrical lifespan of this relay under rated load?


The relay offers an impressive electrical lifespan of 100,000 cycles at rated load conditions, ensuring long-term reliability.

How can I determine the optimal power requirements for this relay?


The relay operates with a coil voltage of 24V AC and has a rated current capacity of 12A. Users should match their application’s power needs accordingly.

Is there a specific temperature range within which this relay operates effectively?


It maintains functionality across an ambient temperature range of -40°C to +70°C, making it suitable for various environments.
