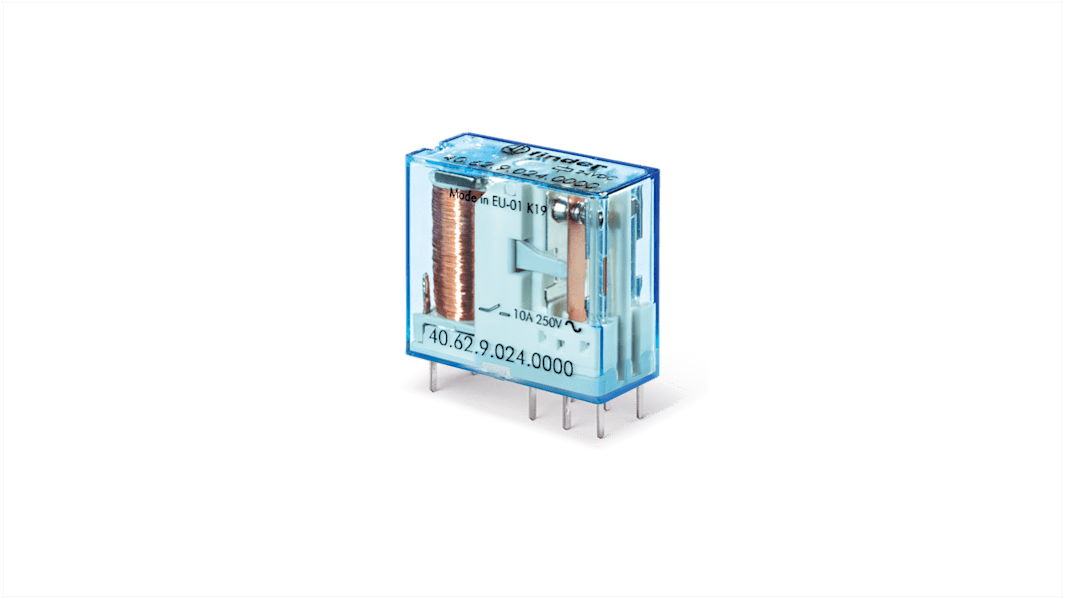

Finder PCB Mount Relay, 24V dc Coil, 10A Switching Current, DPDT
- RS Stock No.:
- 249-4439
- Mfr. Part No.:
- 40.62.7.024.0000
- Brand:
- Finder
Subtotal (1 unit)*
£8.15
(exc. VAT)
£9.78
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 189 unit(s) ready to ship
- Plus 52 unit(s) ready to ship from another location
- Plus 150 unit(s) shipping from 21 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £8.15 |
*price indicative
- RS Stock No.:
- 249-4439
- Mfr. Part No.:
- 40.62.7.024.0000
- Brand:
- Finder
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Finder | |
Coil Voltage | 24V dc | |
Contact Configuration | DPDT | |
Mounting Type | PCB Mount | |
Switching Current | 10A | |
Number of Poles | 2 | |
Series | 40 Series | |
Latching | No | |
Maximum Switching Voltage AC | 400V ac | |
Coil Resistance | 1.15 kO | |
Coil Power | 500mW | |
Maximum Operating Temperature | +85°C | |
Contact Material | Silver Alloy | |
Life | 100000 Cycles | |
Minimum Operating Temperature | -40°C | |
Isolation Coil To Contact | 6kV | |
Standards Met | cRUus Recognized, CSA, EAC | |
Maximum Switching Power DC | 300 mW | |
Maximum Switching Power AC | 750 VA | |
Dimensions | 12.4x25x29mm | |
Select all | ||
---|---|---|
Brand Finder | ||
Coil Voltage 24V dc | ||
Contact Configuration DPDT | ||
Mounting Type PCB Mount | ||
Switching Current 10A | ||
Number of Poles 2 | ||
Series 40 Series | ||
Latching No | ||
Maximum Switching Voltage AC 400V ac | ||
Coil Resistance 1.15 kO | ||
Coil Power 500mW | ||
Maximum Operating Temperature +85°C | ||
Contact Material Silver Alloy | ||
Life 100000 Cycles | ||
Minimum Operating Temperature -40°C | ||
Isolation Coil To Contact 6kV | ||
Standards Met cRUus Recognized, CSA, EAC | ||
Maximum Switching Power DC 300 mW | ||
Maximum Switching Power AC 750 VA | ||
Dimensions 12.4x25x29mm | ||
- COO (Country of Origin):
- IT
Finder 40 Series Relay, 24V DC Coil Voltage, DPDT Contact Configuration - 40.62.7.024.0000
This relay is a compact, versatile component designed for PCB mounting applications. Operating at a coil voltage of 24V DC, it provides efficient switching capabilities suited for various electrical systems. With dimensions of 12.4x25x29mm, this relay integrates seamlessly into control panels and electronic circuit boards.
Features & Benefits
• Offers a switching current of 10A for reliable operation
• DPDT configuration allows for flexible circuit management
• High-voltage capability with a maximum switching voltage of 400V AC
• AgNi contact material enhances longevity and performance
• Insulation between coil and contacts rated at 6kV ensures safety
• Endures up to 100,000 life cycles for durability and extended use
• DPDT configuration allows for flexible circuit management
• High-voltage capability with a maximum switching voltage of 400V AC
• AgNi contact material enhances longevity and performance
• Insulation between coil and contacts rated at 6kV ensures safety
• Endures up to 100,000 life cycles for durability and extended use
Applications
• Used in control panels for automation systems
• Suitable for joining electrical distribution panels
• Ideal for remote door and gate openers
• Utilised in vending machines to manage electronic components
• Perfect for modular automation setups, including blinds and shutters
• Suitable for joining electrical distribution panels
• Ideal for remote door and gate openers
• Utilised in vending machines to manage electronic components
• Perfect for modular automation setups, including blinds and shutters
What is the maximum switching power for this component?
The component can switch a maximum power of 750VA for AC loads and 300mW for DC loads, making it suitable for varied applications.
How does the insulation rating benefit user applications?
With an insulation rating of 6kV between the coil and contact, it ensures protection against electrical surges, increasing overall system reliability.
Can this relay operate effectively in extreme temperatures?
Yes, it is designed to function within an ambient temperature range of -40°C to 85°C, accommodating diverse environmental conditions.
What installation methods are available for this relay?
It is designed for PCB mounting, facilitating easy integration into existing systems and ensuring secure placement in various applications.
How does the contact material influence performance?
Using AgNi contact material promotes better conductivity and reduces wear, significantly enhancing the relay's operational life and effectiveness.
