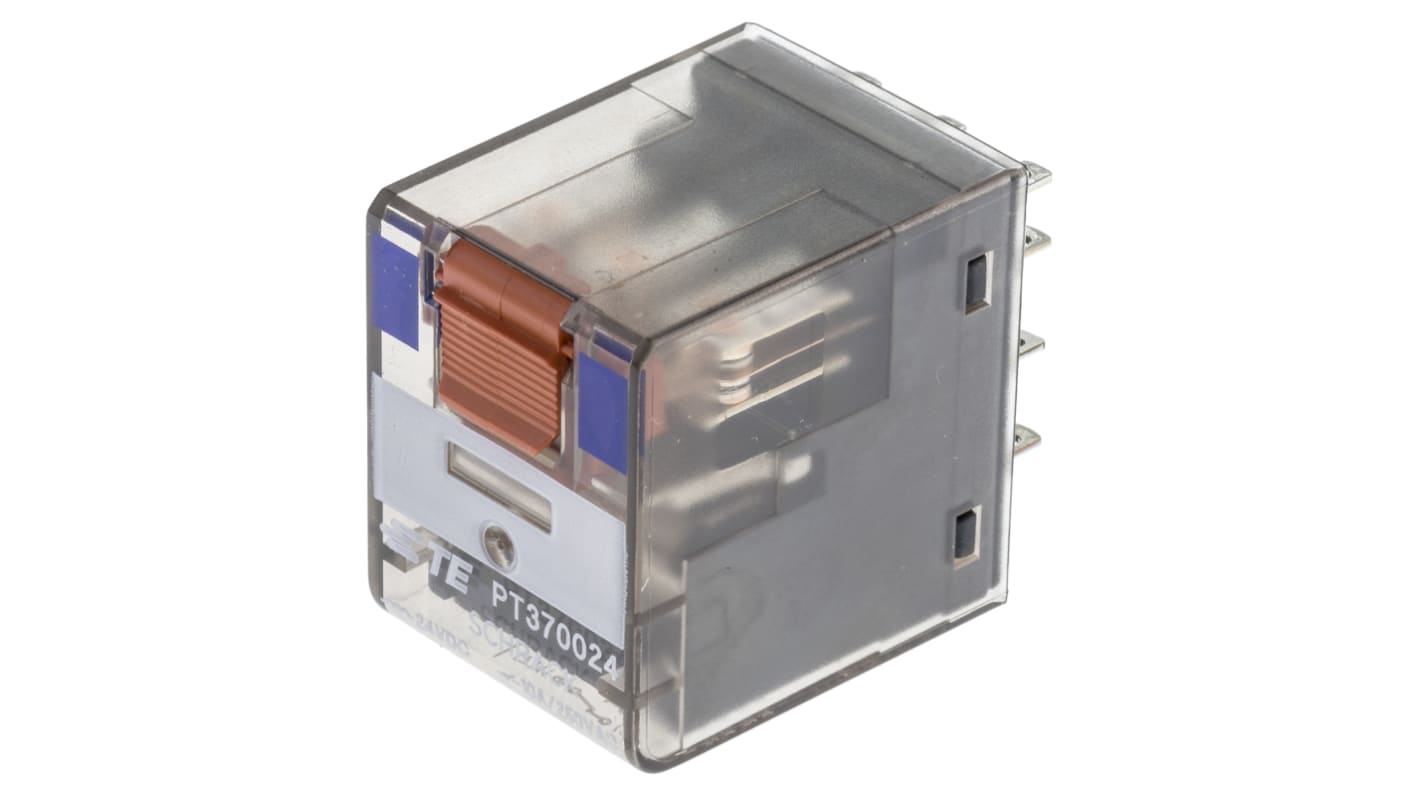

TE Connectivity PCB Power Relay, 24V dc Coil, 10A Switching Current, 3PDT
- RS Stock No.:
- 333-9963
- Distrelec Article No.:
- 300-29-039
- Mfr. Part No.:
- PT370024 6-1419111-1
- Brand:
- TE Connectivity
Bulk discount available
Subtotal (1 unit)*
£8.17
(exc. VAT)
£9.80
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 - 4 | £8.17 |
| 5 - 9 | £7.94 |
| 10 + | £7.60 |
*price indicative
- RS Stock No.:
- 333-9963
- Distrelec Article No.:
- 300-29-039
- Mfr. Part No.:
- PT370024 6-1419111-1
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Coil Voltage | 24V dc | |
| Product Type | Power Relay | |
| Contact Configuration | 3PDT | |
| Mount Type | PCB | |
| Series | PT | |
| Terminal Type | Quick Connect | |
| Switching Current | 10A | |
| Switching AC Voltage | 400V ac | |
| Switching Power | 2.5kVA | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 70°C | |
| Coil Resistance | 777Ω | |
| Height | 35mm | |
| Length | 28mm | |
| Standards/Approvals | UL, RoHS, IEC, VDE | |
| Width | 22.5mm | |
| Contact Material | Silver Nickel Alloy | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Coil Voltage 24V dc | ||
Product Type Power Relay | ||
Contact Configuration 3PDT | ||
Mount Type PCB | ||
Series PT | ||
Terminal Type Quick Connect | ||
Switching Current 10A | ||
Switching AC Voltage 400V ac | ||
Switching Power 2.5kVA | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 70°C | ||
Coil Resistance 777Ω | ||
Height 35mm | ||
Length 28mm | ||
Standards/Approvals UL, RoHS, IEC, VDE | ||
Width 22.5mm | ||
Contact Material Silver Nickel Alloy | ||
- COO (Country of Origin):
- AT
PT Series With Mechanical Indicator
Cadmium-free contacts
LED and mechanical indicator
Manual/ lockable test facility
Contact material: AgNi or Gold Plated
Mechanical life: AC; 2 x 107, DC; 3 x 107 or DC; 30 x 10⒍
Isolation coil to contact: 2.5kV(ac)
Dimensions: W22.5 x D28 x H29mm
or DC; 30 x 10
Approvals
VDE; UL; CSA
