Releco PCB Mount Power Relay, 24V ac/dc Coil, 10A Switching Current, 3PDT
- RS Stock No.:
- 177-863
- Mfr. Part No.:
- C3-A38 BX 24V
- Brand:
- Releco
Bulk discount available
Subtotal (1 unit)*
£60.73
(exc. VAT)
£72.88
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship
- Plus 999,999,998 unit(s) shipping from 13 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £60.73 |
| 5 - 9 | £59.51 |
| 10 - 14 | £58.30 |
| 15 + | £57.09 |
*price indicative
- RS Stock No.:
- 177-863
- Mfr. Part No.:
- C3-A38 BX 24V
- Brand:
- Releco
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Releco | |
| Coil Voltage | 24V ac/dc | |
| Contact Configuration | 3PDT | |
| Mounting Type | PCB Mount | |
| Switching Current | 10A | |
| Number of Poles | 3 | |
| Latching | No | |
| Series | C3 | |
| Terminal Type | Through Hole | |
| Maximum Switching Voltage AC | 250V ac | |
| Maximum Switching Voltage DC | 30V dc | |
| Length | 35mm | |
| Coil Resistance | 443 (dc) Ω, 67 (ac) Ω | |
| Coil Power | 2.2W | |
| Height | 66mm | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +60°C | |
| Depth | 35mm | |
| Life | 10 Million (AC Mechanical) cycles, 100000 (Electrical) cycles, 20 Million (DC Mechanical) cycles | |
| Contact Material | Silver Alloy | |
| Isolation Coil To Contact | 2.5kV | |
| Maximum Switching Power AC | 2.5 kVA | |
| Application | Power | |
Select all | ||
|---|---|---|
Brand Releco | ||
Coil Voltage 24V ac/dc | ||
Contact Configuration 3PDT | ||
Mounting Type PCB Mount | ||
Switching Current 10A | ||
Number of Poles 3 | ||
Latching No | ||
Series C3 | ||
Terminal Type Through Hole | ||
Maximum Switching Voltage AC 250V ac | ||
Maximum Switching Voltage DC 30V dc | ||
Length 35mm | ||
Coil Resistance 443 (dc) Ω, 67 (ac) Ω | ||
Coil Power 2.2W | ||
Height 66mm | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +60°C | ||
Depth 35mm | ||
Life 10 Million (AC Mechanical) cycles, 100000 (Electrical) cycles, 20 Million (DC Mechanical) cycles | ||
Contact Material Silver Alloy | ||
Isolation Coil To Contact 2.5kV | ||
Maximum Switching Power AC 2.5 kVA | ||
Application Power | ||

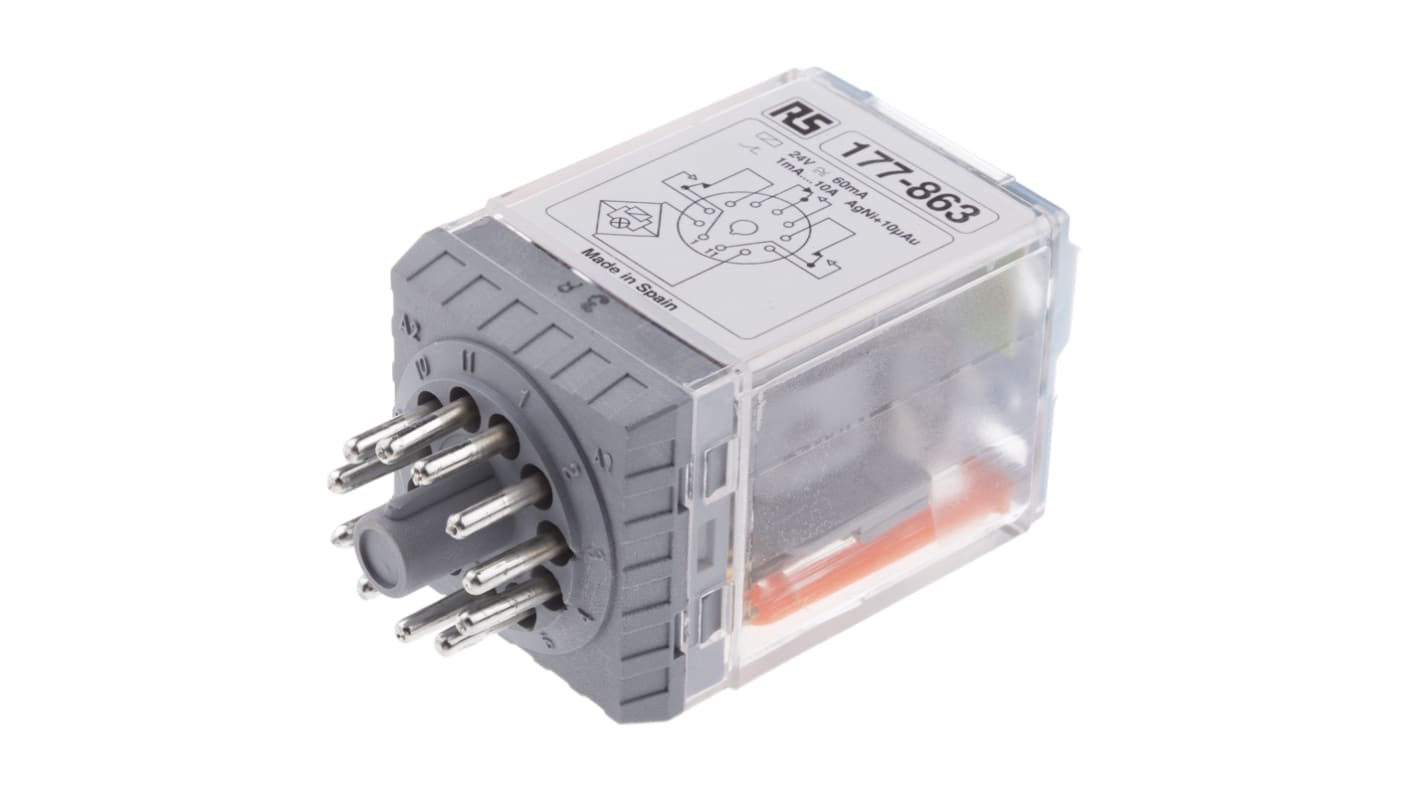

RELECO 3PDT Plug-In Relay
The RELECO C3 series 3-pole PCB mount non-latching relay has a contact configuration of 3PDT. It is actuated with a 24V coil voltage and 10A switching current. This relay has a test button, LED indicator and mechanical flag indicator. The test button is colour coded and dual function, push to test or lift to latch. This relay has a built-in bridge rectifier for AC or DC operation. The bridge rectifier suppresses back EMF during DC operation.
Features and Benefits
Coil power is 2.2W
Operating temperature ranges between -20°C and 60°C
Contact material silver-nickel with 10μ gold (AgNi)
Through hole terminal type
Coil to contact isolation is 2.5kV
Operating temperature ranges between -20°C and 60°C
Contact material silver-nickel with 10μ gold (AgNi)
Through hole terminal type
Coil to contact isolation is 2.5kV
Certifications
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
IP40 rated
BS EN 61340-5-1:2007
IP40 rated
