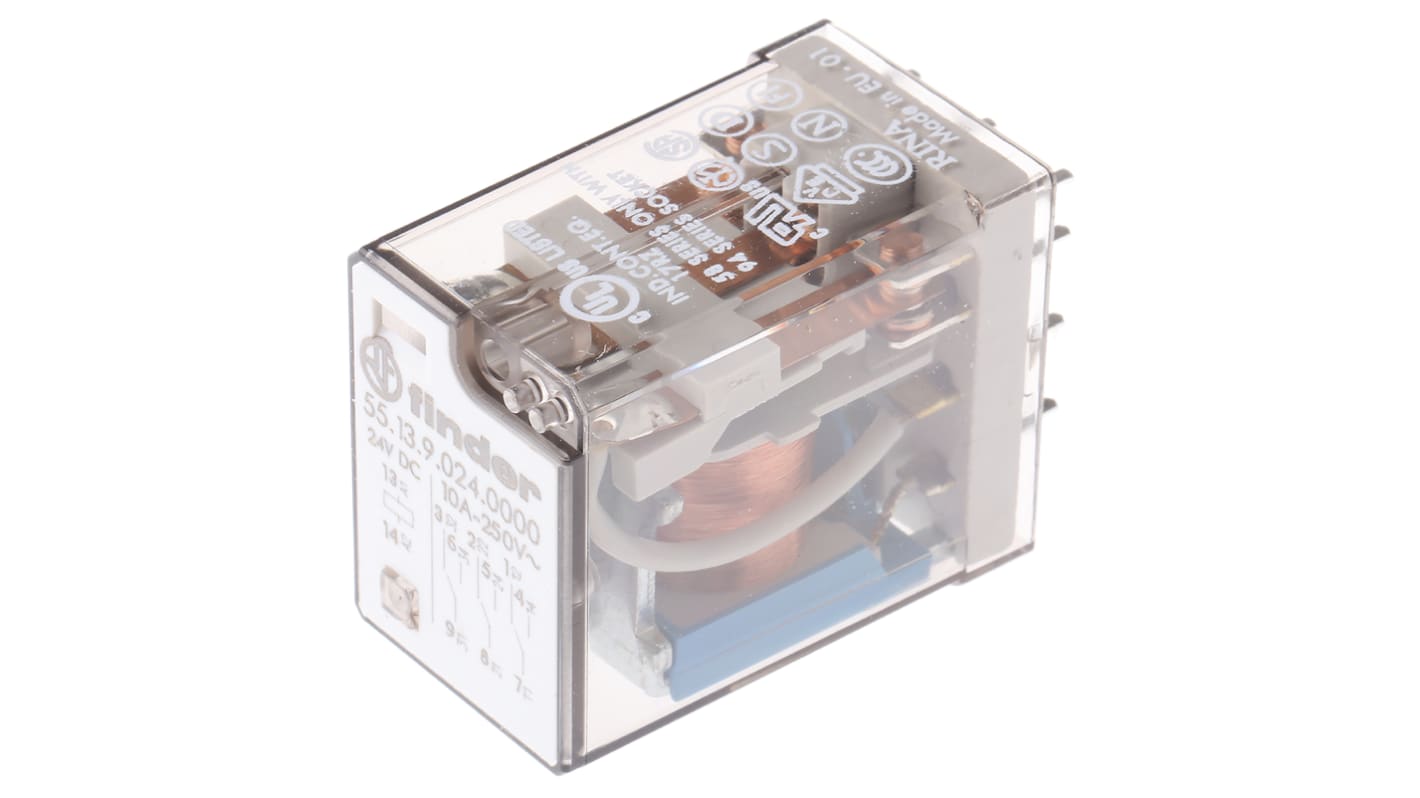

Finder PCB Mount Power Relay, 24V dc Coil, 10A Switching Current, 3PDT

View all Power Relays
Bulk discount available

Subtotal (1 unit)*

£12.71

(exc. VAT)

£15.25

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 90 unit(s) ready to ship from another location
  • Plus 20 unit(s) shipping from 30 October 2025
  • Plus 999,999,977 unit(s) shipping from 07 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£12.71
5 - 9£12.35
10 +£11.78

*price indicative

RS Stock No.:
253-3473
Distrelec Article No.:
137-44-401
Mfr. Part No.:
55.13.9.024.0000
Brand:
Finder
Find similar products by selecting one or more attributes.
Select all

Brand

Finder

Coil Voltage

24V dc

Contact Configuration

3PDT

Mounting Type

PCB Mount

Switching Current

10A

Number of Poles

3

Series

55 Series

Latching

No

Terminal Type

Through Hole

Maximum Switching Voltage AC

400V ac

Length

27.7mm

Coil Resistance

600Ω

Coil Power

1W

Contact Material

Silver Alloy

Life

10000000 (AC Mechanical) cycles, 200000 (Electrical) cycles, 20000000 (DC Mechanical) cycles

Isolation Coil To Contact

4kV

Maximum Operating Temperature

+85°C

Minimum Operating Temperature

-40°C

Depth

20.7mm

Height

35.8mm

Maximum Switching Power AC

2.5 kVA

COO (Country of Origin):
IT

Finder 55 series Power Relay, 24V DC Coil Voltage, 10A Switching Current - 55.13.9.024.0000


This power relay is a pivotal component for automation and control applications, specifically designed for 24V DC systems. With a 3PDT configuration, it allows for versatile switching capabilities, delivering reliable performance in a compact PCB mount format. Dimensions include a height of 35.8mm, depth of 20.7mm, and length of 27.7mm, making it suitable for various installation scenarios.

Features & Benefits


• 10A switching capacity ensures effective control of high currents
• Operates with a maximum switching voltage of 400V AC
• Silver alloy contact material enhances durability and conductivity
• Long mechanical life of 10 million cycles for reliable operation

Applications


• Utilised in industrial automation to control machinery
• Ideal for lighting control and HVAC systems
• Can be used in the automotive and transport sectors
• Effective in security and alarm systems for triggering functions

How does the relay's isolation voltage enhance safety?


The relay provides an isolation voltage of 4kV, which safeguards circuits from high-voltage surges, thus ensuring operator safety and equipment integrity.

What advantages does the use of silver alloy contacts present?


Silver alloy contacts improve electrical performance and longevity, reducing wear and ensuring consistent connectivity over time.

Can this relay accommodate different environmental conditions?


Yes, it operates effectively within an extensive temperature range of -40°C to +85°C, making it versatile for various environments and applications.
