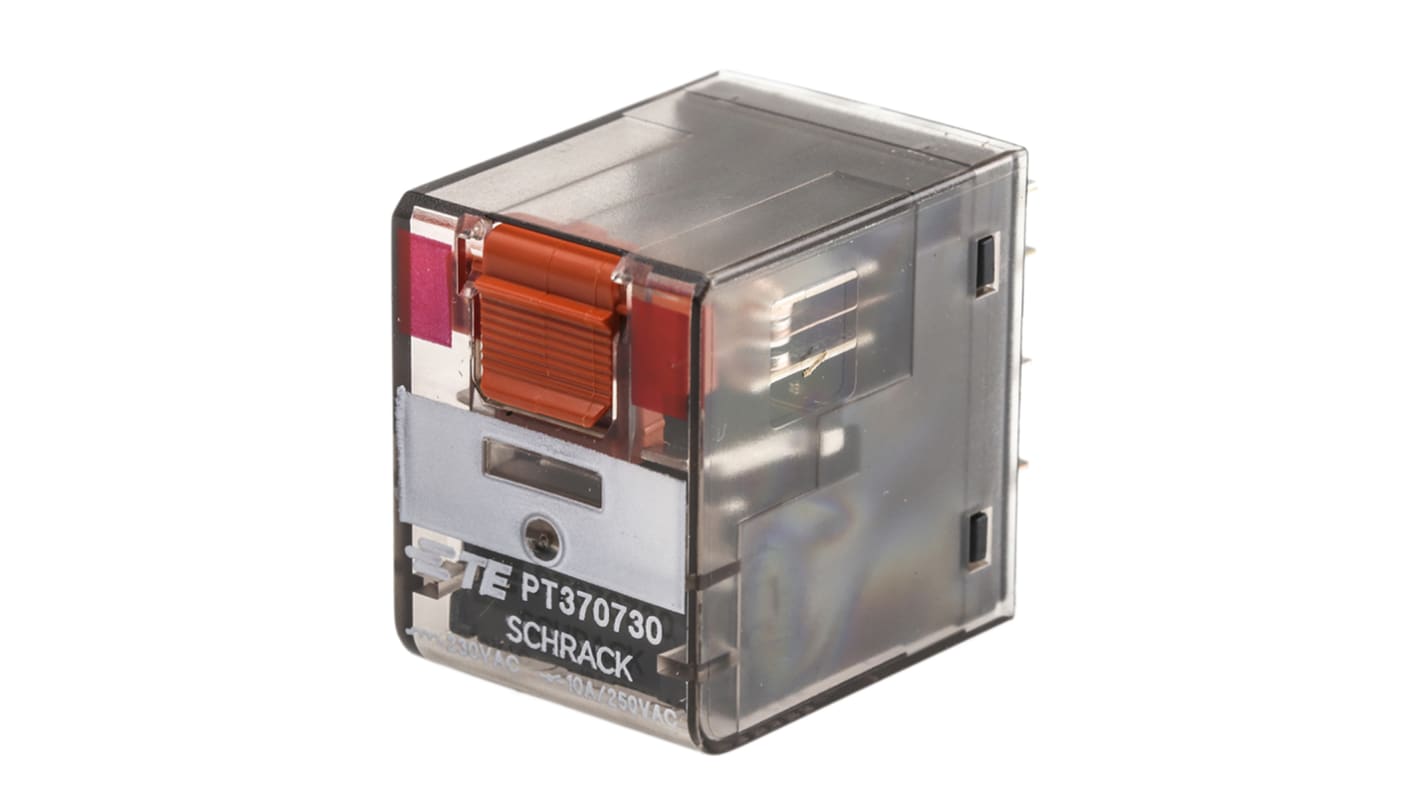

TE Connectivity PCB Mount Power Relay, 230V ac Coil, 10A Switching Current, 3PDT
- RS Stock No.:
- 333-9991
- Mfr. Part No.:
- PT370730 6-1419111-9
- Brand:
- TE Connectivity
165 In stock - FREE next working day delivery available
3 available from Europe for delivery within 1 working day(s).
Added
Price Each
£9.66
(exc. VAT)
£11.59
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £9.66 |
| 5 - 9 | £9.36 |
| 10 + | £8.98 |
- RS Stock No.:
- 333-9991
- Mfr. Part No.:
- PT370730 6-1419111-9
- Brand:
- TE Connectivity
Legislation and Compliance
- COO (Country of Origin):
- AT
Product Details
PT Series With Mechanical Indicator
Cadmium-free contacts
LED and mechanical indicator
Manual/ lockable test facility
Contact material: AgNi or Gold Plated
Mechanical life: AC; 2 x 107, DC; 3 x 107 or DC; 30 x 10⒍
Isolation coil to contact: 2.5kV(ac)
Dimensions: W22.5 x D28 x H29mm
LED and mechanical indicator
Manual/ lockable test facility
Contact material: AgNi or Gold Plated
Mechanical life: AC; 2 x 107, DC; 3 x 107 or DC; 30 x 10⒍
Isolation coil to contact: 2.5kV(ac)
Dimensions: W22.5 x D28 x H29mm
or DC; 30 x 10
Approvals
VDE; UL; CSA
Specifications
Attribute | Value |
|---|---|
| Coil Voltage | 230V ac |
| Contact Configuration | 3PDT |
| Mounting Type | PCB Mount |
| Switching Current | 10A |
| Number of Poles | 3 |
| Latching | No |
| Terminal Type | Quick Connect |
| Length | 28mm |
| Coil Resistance | 19465Ω |
| Depth | 22.5mm |
| Series | PT |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +70°C |
| Contact Material | Silver Nickel Alloy |
| Height | 35mm |
| Maximum Switching Power AC | 2.5 kVA |
| Application | Compact |
