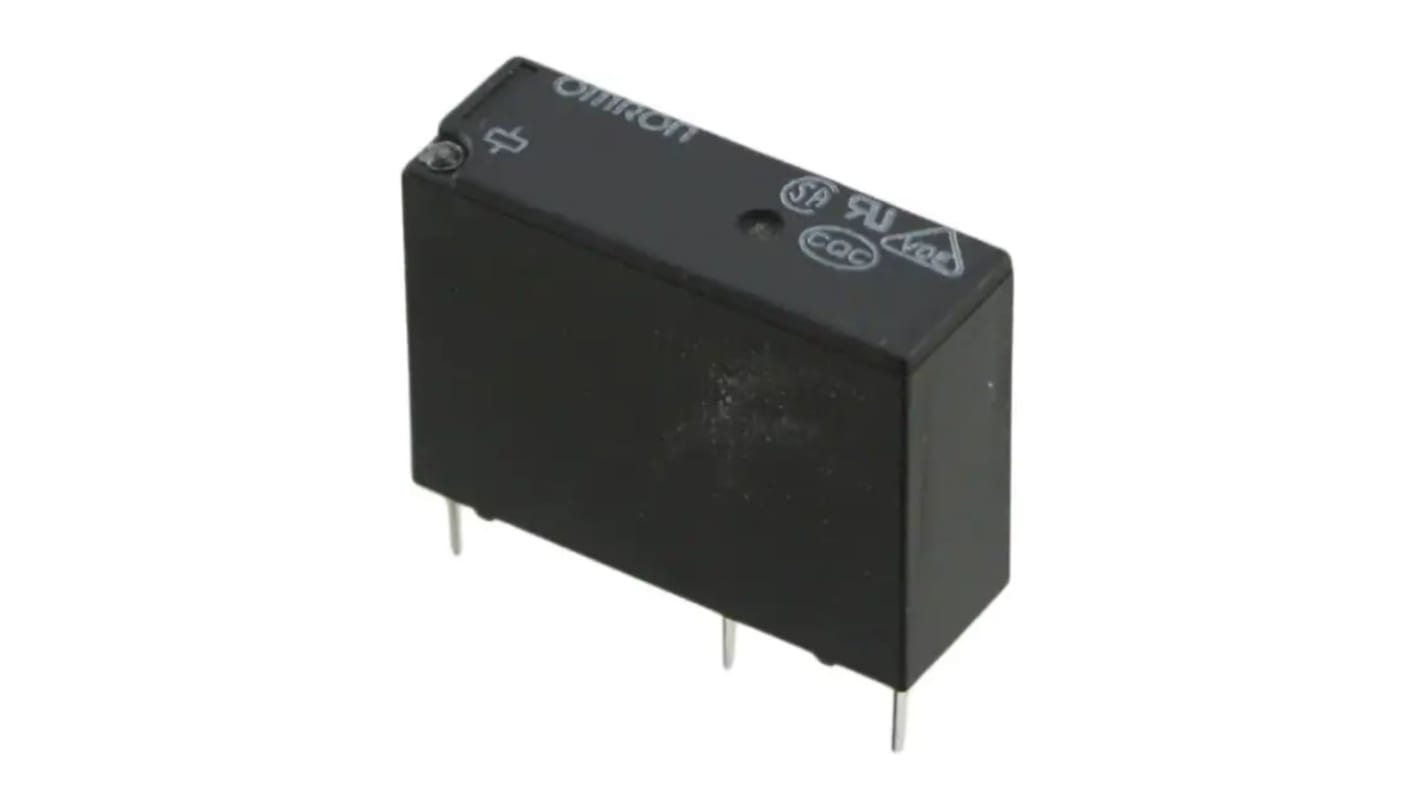

Omron PCB Mount Power Relay, 12V dc Coil, 3A Switching Current, SPST
- RS Stock No.:
- 213-2125
- Mfr. Part No.:
- G5NB-1A4 DC12
- Brand:
- Omron
Subtotal (1 tray of 500 units)*
£688.00
(exc. VAT)
£825.50
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 01 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tray* |
---|---|---|
500 + | £1.376 | £688.00 |
*price indicative
- RS Stock No.:
- 213-2125
- Mfr. Part No.:
- G5NB-1A4 DC12
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Omron | |
Coil Voltage | 12V dc | |
Contact Configuration | SPST | |
Mounting Type | PCB Mount | |
Switching Current | 3A | |
Number of Poles | 1 | |
Series | G5NB | |
Latching | No | |
Coil Resistance | 720Ω | |
Coil Power | 200mW | |
Isolation Coil To Contact | 4kV ac | |
Select all | ||
---|---|---|
Brand Omron | ||
Coil Voltage 12V dc | ||
Contact Configuration SPST | ||
Mounting Type PCB Mount | ||
Switching Current 3A | ||
Number of Poles 1 | ||
Series G5NB | ||
Latching No | ||
Coil Resistance 720Ω | ||
Coil Power 200mW | ||
Isolation Coil To Contact 4kV ac | ||
- COO (Country of Origin):
- MY
G5NB Series
Compact slim body (20.5x15.3x7.2mm) single pole relays with high isolation between coil and contacts
High withstand voltage rating of 10kV (1.2 x 50μs) between coil and contacts
Highly efficient magnetic circuit for high sensitivity (200 mW)
Tracking resistance: CTI>250
High withstand voltage rating of 10kV (1.2 x 50μs) between coil and contacts
Highly efficient magnetic circuit for high sensitivity (200 mW)
Tracking resistance: CTI>250
Approvals
UL, CSA, VDE
The Omron G5NB PCB Power Relay has 1-pole 3A Switching Capability and 10 kV Impulse Withstand Voltage. The G5NB PCB Power Relay has application such as Water heaters, Refrigerators, Air conditioners, Home appliances and Small electric appliances.
Highly efficient magnetic circuit for high sensitivity (200 mW)
PCB terminals
PCB terminals
