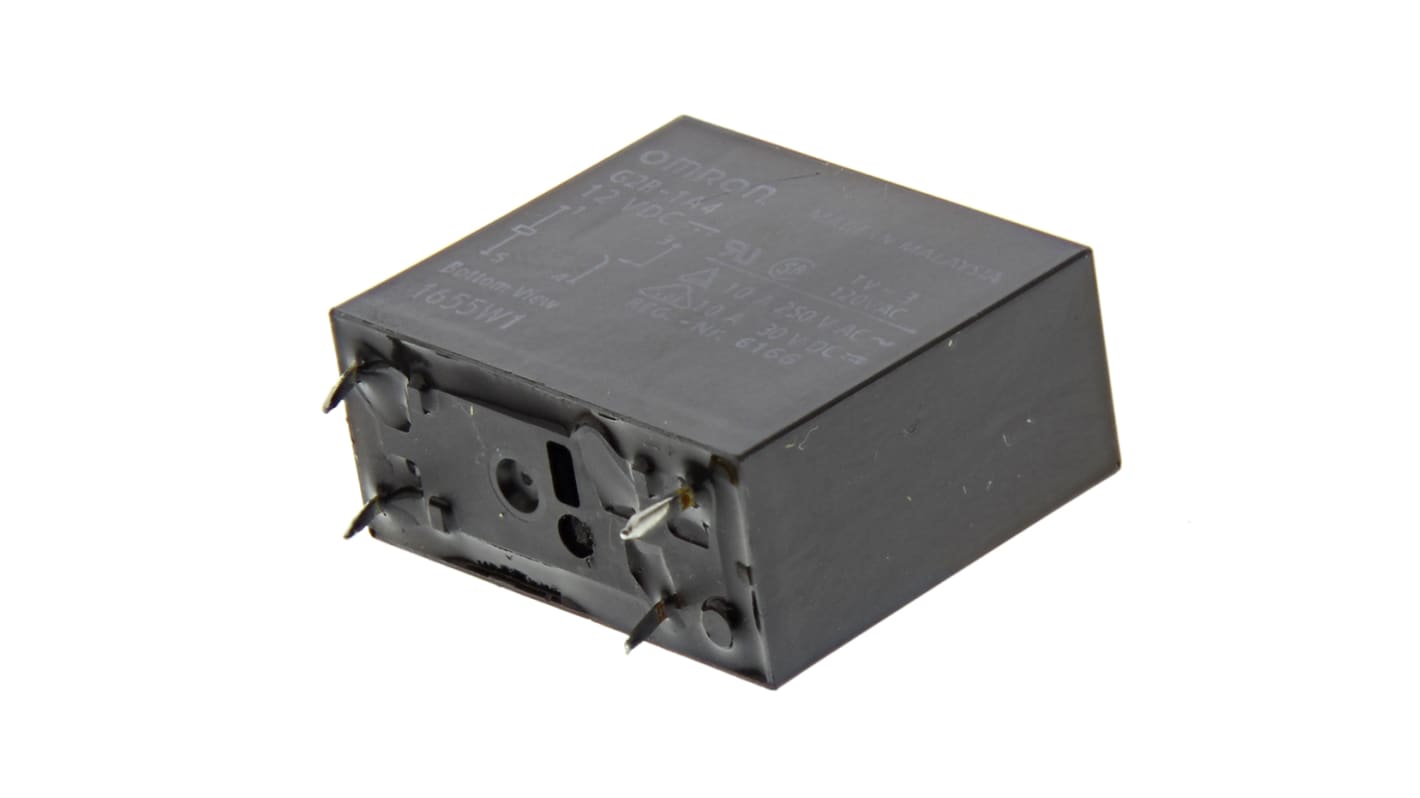

Omron PCB Mount Power Relay, 12V dc Coil, 8A Switching Current, SPST
- RS Stock No.:
- 683-8703
- Mfr. Part No.:
- G2R-1A4 DC12
- Brand:
- Omron
4 In stock - FREE next working day delivery available
Added
Price Each
£3.32
(exc. VAT)
£3.98
(inc. VAT)
| Units | Per unit |
| 1 - 24 | £3.32 |
| 25 - 49 | £2.95 |
| 50 - 99 | £2.60 |
| 100 - 249 | £2.24 |
| 250 + | £1.85 |
- RS Stock No.:
- 683-8703
- Mfr. Part No.:
- G2R-1A4 DC12
- Brand:
- Omron
Technical Reference
Legislation and Compliance
Product Details
G2R Series
General purpose PCB power relay used in various domestic and commercial applications
8mm creepage/clearance
H25.5 x W13 x D29 mm
8mm creepage/clearance
H25.5 x W13 x D29 mm
Approvals
UL508; CSA22.2; EN 61810-1; SEV; SEMKO
Specifications
Attribute | Value |
|---|---|
| Coil Voltage | 12V dc |
| Contact Configuration | SPST |
| Mounting Type | PCB Mount |
| Switching Current | 8A |
| Number of Poles | 1 |
| Latching | No |
| Terminal Type | Through Hole |
| Length | 29mm |
| Coil Resistance | 275Ω |
| Series | G2R-1 |
| Depth | 13.5mm |
| Height | 25.5mm |
| Maximum Operating Temperature | +70°C |
| Contact Material | Silver |
| Minimum Operating Temperature | -40°C |
| Maximum Switching Power AC | 2 kVA |
| Maximum Switching Power DC | 240 W |
| Application | Power |
