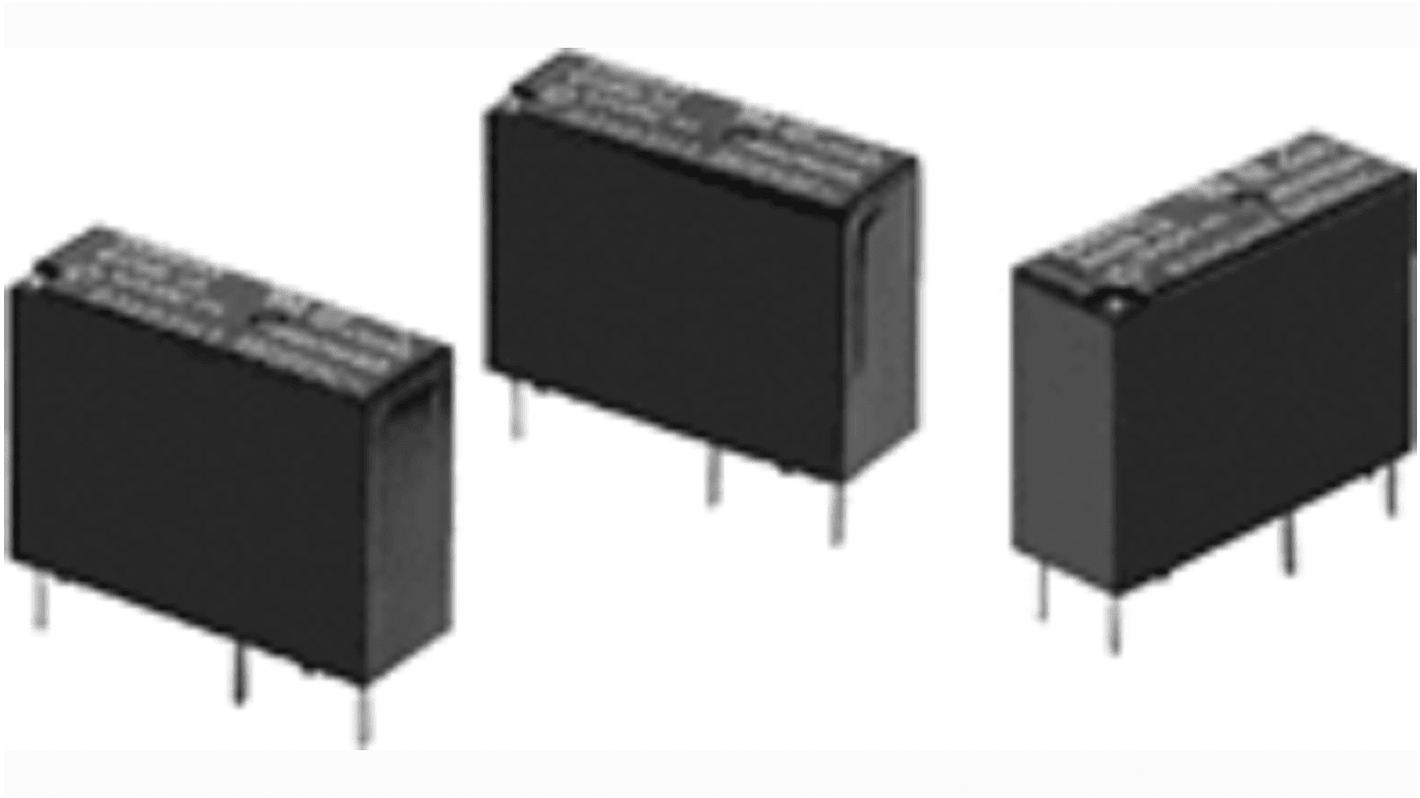

Omron PCB Power Relay, 12V dc Coil, 5A Switching Current, SPST
- RS Stock No.:
- 254-3129
- Mfr. Part No.:
- G5NB-1A4-EL-HA DC12
- Brand:
- Omron
Bulk discount available
Subtotal (1 tray of 500 units)*
£515.00
(exc. VAT)
£620.00
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 07 December 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tray* |
|---|---|---|
| 500 - 500 | £1.03 | £515.00 |
| 1000 - 2000 | £1.005 | £502.50 |
| 2500 + | £0.968 | £484.00 |
*price indicative
- RS Stock No.:
- 254-3129
- Mfr. Part No.:
- G5NB-1A4-EL-HA DC12
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Coil Voltage | 12V dc | |
| Product Type | Power Relay | |
| Contact Configuration | SPST | |
| Mount Type | PCB | |
| Series | G5NB | |
| Terminal Type | PCB Pin | |
| Switching Current | 5A | |
| Switching DC Voltage | 30V dc | |
| Minimum Operating Temperature | -40°C | |
| Switching AC Voltage | 250V ac | |
| Maximum Operating Temperature | 85°C | |
| Coil Resistance | 2.9kΩ | |
| Width | 7.2mm | |
| Length | 20.5mm | |
| Coil Power | 200mW | |
| Standards/Approvals | EN61010, EN/IEC, UL/CSA, VDE | |
| Height | 18.7mm | |
| Contact Material | Silver Alloy | |
| Contact Resistance | 100mΩ | |
| Select all | ||
|---|---|---|
Brand Omron | ||
Coil Voltage 12V dc | ||
Product Type Power Relay | ||
Contact Configuration SPST | ||
Mount Type PCB | ||
Series G5NB | ||
Terminal Type PCB Pin | ||
Switching Current 5A | ||
Switching DC Voltage 30V dc | ||
Minimum Operating Temperature -40°C | ||
Switching AC Voltage 250V ac | ||
Maximum Operating Temperature 85°C | ||
Coil Resistance 2.9kΩ | ||
Width 7.2mm | ||
Length 20.5mm | ||
Coil Power 200mW | ||
Standards/Approvals EN61010, EN/IEC, UL/CSA, VDE | ||
Height 18.7mm | ||
Contact Material Silver Alloy | ||
Contact Resistance 100mΩ | ||
The Omron power relay is a miniature relay wIth 1-pole 3a/5a switching capabilIty and 10 kv impulse wIthstand voltage. It is highly efficient magnetic circuIt for high sensItivIty.
Standard model conforms to UL/CSA/VDE standards
Satisfies EN61010 reinforced insulation requirements
IEC/EN 60335-1 conformed(-HA Model)
IEC/EN 60079-15 conformed(only for G5NB-1A4, G5NB-1A4-E Model)
Reduced power consumption with voltage holding and pulse width modulation (PWM) control (only for G5NB-@-PW model)
