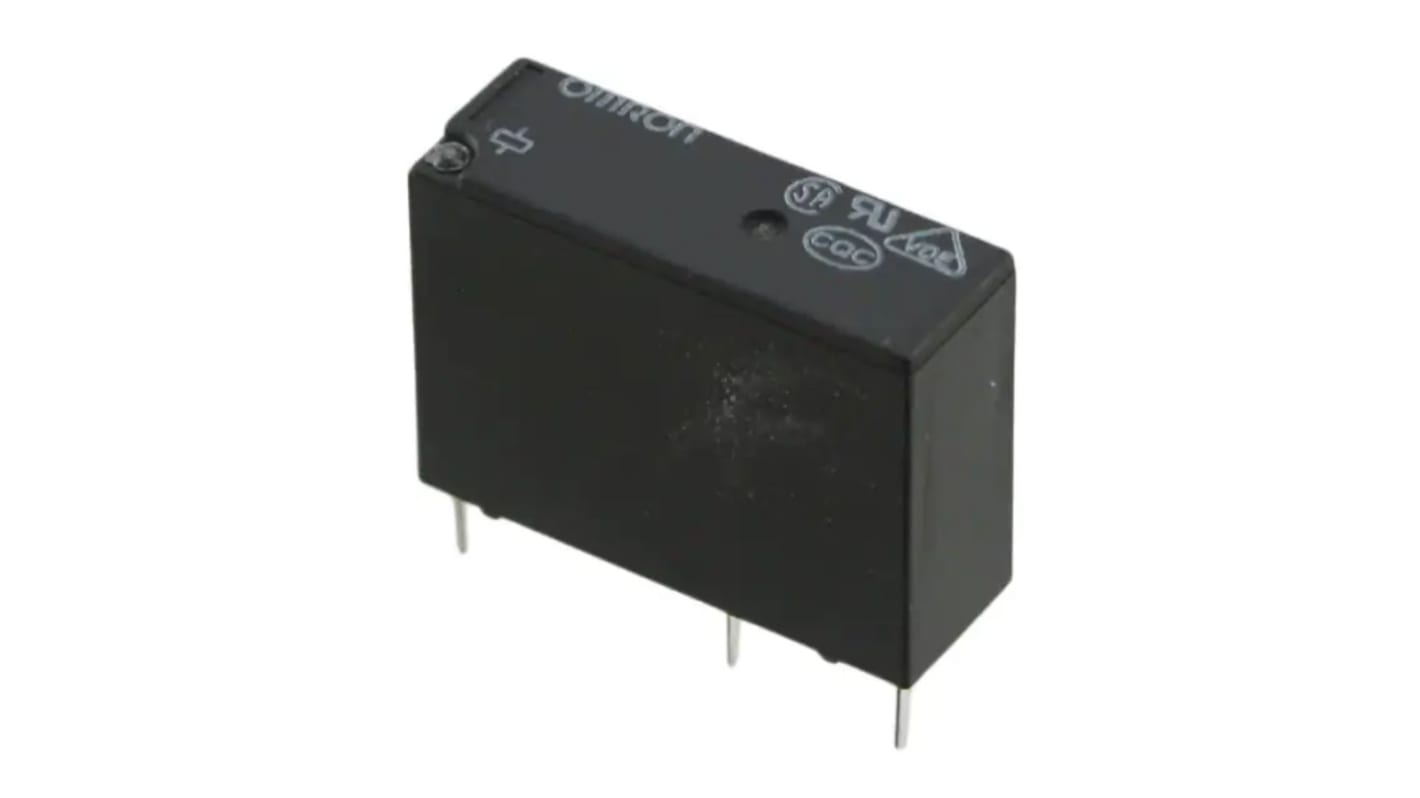

Omron PCB Power Relay, 5V dc Coil, 3A Switching Current, SPST
- RS Stock No.:
- 213-2129
- Mfr. Part No.:
- G5NB-1A4 DC5
- Brand:
- Omron
Subtotal (1 tray of 500 units)*
£1,525.50
(exc. VAT)
£1,830.50
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 29 March 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tray* |
|---|---|---|
| 500 + | £3.051 | £1,525.50 |
*price indicative
- RS Stock No.:
- 213-2129
- Mfr. Part No.:
- G5NB-1A4 DC5
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Coil Voltage | 5V dc | |
| Product Type | Power Relay | |
| Contact Configuration | SPST | |
| Mount Type | PCB | |
| Series | G5NB | |
| Terminal Type | PCB Pin | |
| Switching Current | 3A | |
| Switching AC Voltage | 250V ac | |
| Switching DC Voltage | 30V dc | |
| Switching Power | 375VA | |
| Minimum Operating Temperature | -40°C | |
| Coil Resistance | 125Ω | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | RoHS | |
| Width | 7.2mm | |
| Length | 20.5mm | |
| Coil Power | 200mW | |
| Height | 15.3mm | |
| Contact Resistance | 100mΩ | |
| Select all | ||
|---|---|---|
Brand Omron | ||
Coil Voltage 5V dc | ||
Product Type Power Relay | ||
Contact Configuration SPST | ||
Mount Type PCB | ||
Series G5NB | ||
Terminal Type PCB Pin | ||
Switching Current 3A | ||
Switching AC Voltage 250V ac | ||
Switching DC Voltage 30V dc | ||
Switching Power 375VA | ||
Minimum Operating Temperature -40°C | ||
Coil Resistance 125Ω | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals RoHS | ||
Width 7.2mm | ||
Length 20.5mm | ||
Coil Power 200mW | ||
Height 15.3mm | ||
Contact Resistance 100mΩ | ||
- COO (Country of Origin):
- MY
The Omron G5NB PCB Power Relay has 1-pole 3A Switching Capability and 10 kV Impulse Withstand Voltage. The G5NB PCB Power Relay has application such as Water heaters, Refrigerators, Air conditioners, Home appliances and Small electric appliances.
Highly efficient magnetic circuit for high sensitivity (200 mW)
PCB terminals
G5NB Series
Compact slim body (20.5x15.3x7.2mm) single pole relays with high isolation between coil and contacts
High withstand voltage rating of 10kV (1.2 x 50μs) between coil and contacts
Highly efficient magnetic circuit for high sensitivity (200 mW)
Tracking resistance: CTI>250
Approvals
UL, CSA, VDE
