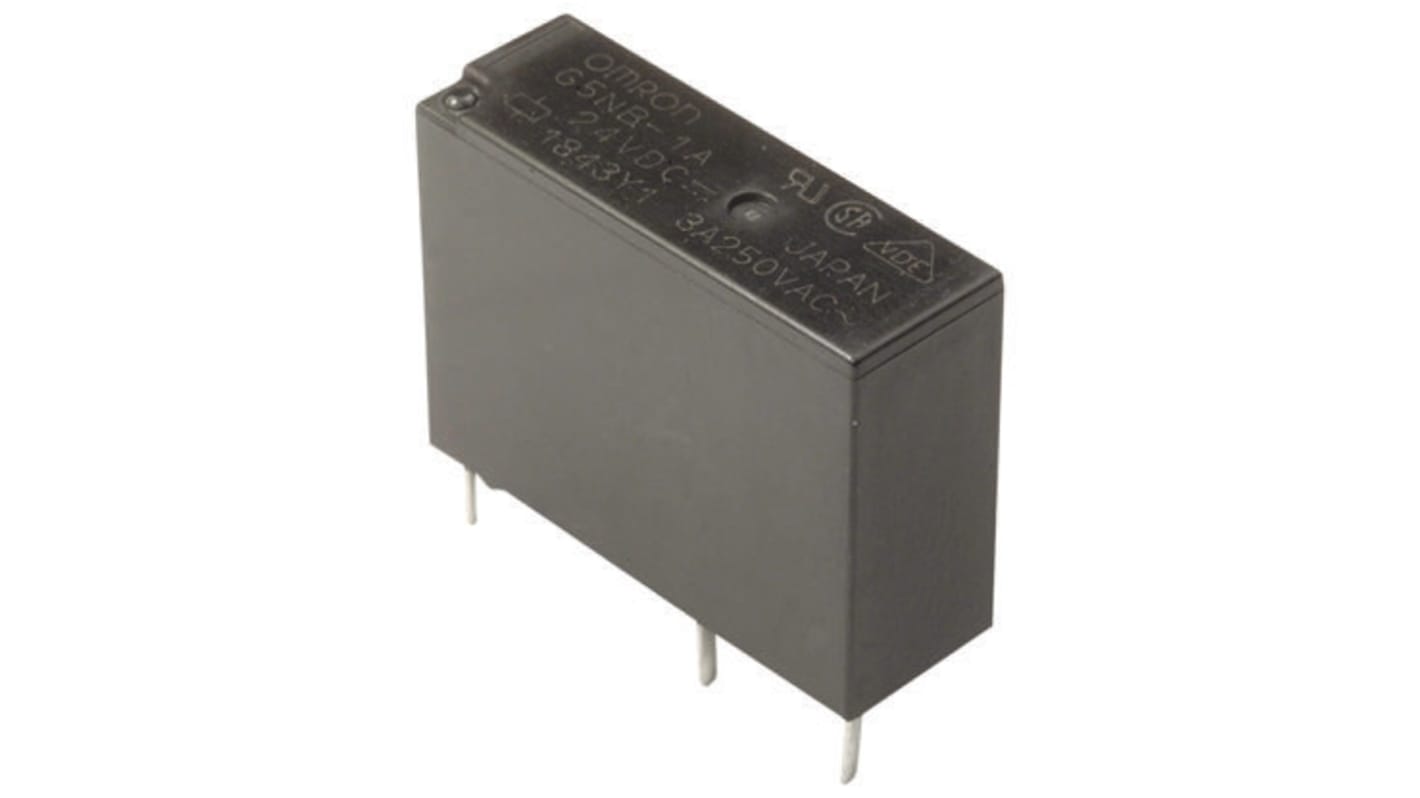

Omron PCB Mount Power Relay, 24V dc Coil, 3A Switching Current, SPST

RS Stock No.:: 683-9208
Mfr. Part No.:: G5NB-1A4 DC24
Brand:: Omron

Omron PCB Mount Power Relay, 24V dc Coil, 3A Switching Current, SPST

175 In stock - FREE next working day delivery available

Price Each (In a Pack of 5)

£1.85

(exc. VAT)

£2.22

(inc. VAT)

Units	Per unit	Per Pack*
5 - 120	£1.85	£9.25
125 - 245	£1.31	£6.55
250 - 495	£1.222	£6.11
500 - 1245	£1.196	£5.98
1250 +	£1.16	£5.80

*price indicative

RS Stock No.:: 683-9208
Mfr. Part No.:: G5NB-1A4 DC24
Brand:: Omron

Technical Reference

PCB Relay G5NB Data Sheet

Legislation and Compliance

COO (Country of Origin):: CN

Product Details

G5NB Series

Compact slim body (20.5x15.3x7.2mm) single pole relays with high isolation between coil and contacts
High withstand voltage rating of 10kV (1.2 x 50μs) between coil and contacts
Highly efficient magnetic circuit for high sensitivity (200 mW)
Tracking resistance: CTI>250

Approvals

UL, CSA, VDE

The Omron G5NB PCB Power Relay has 1-pole 3A Switching Capability and 10 kV Impulse Withstand Voltage. The G5NB PCB Power Relay has application such as Water heaters, Refrigerators, Air conditioners, Home appliances and Small electric appliances.

Highly efficient magnetic circuit for high sensitivity (200 mW)
PCB terminals

Specifications

Attribute	Value
Coil Voltage	24V dc
Contact Configuration	SPST
Mounting Type	PCB Mount
Switching Current	3A
Number of Poles	1
Latching	No
Terminal Type	Through Hole
Length	20.5mm
Coil Resistance	2880Ω
Maximum Operating Temperature	+70°C
Minimum Operating Temperature	-40°C
Depth	7.2mm
Series	G5NB
Height	15.3mm
Maximum Switching Power DC	90 W
Maximum Switching Power AC	375VA
Application	Power
