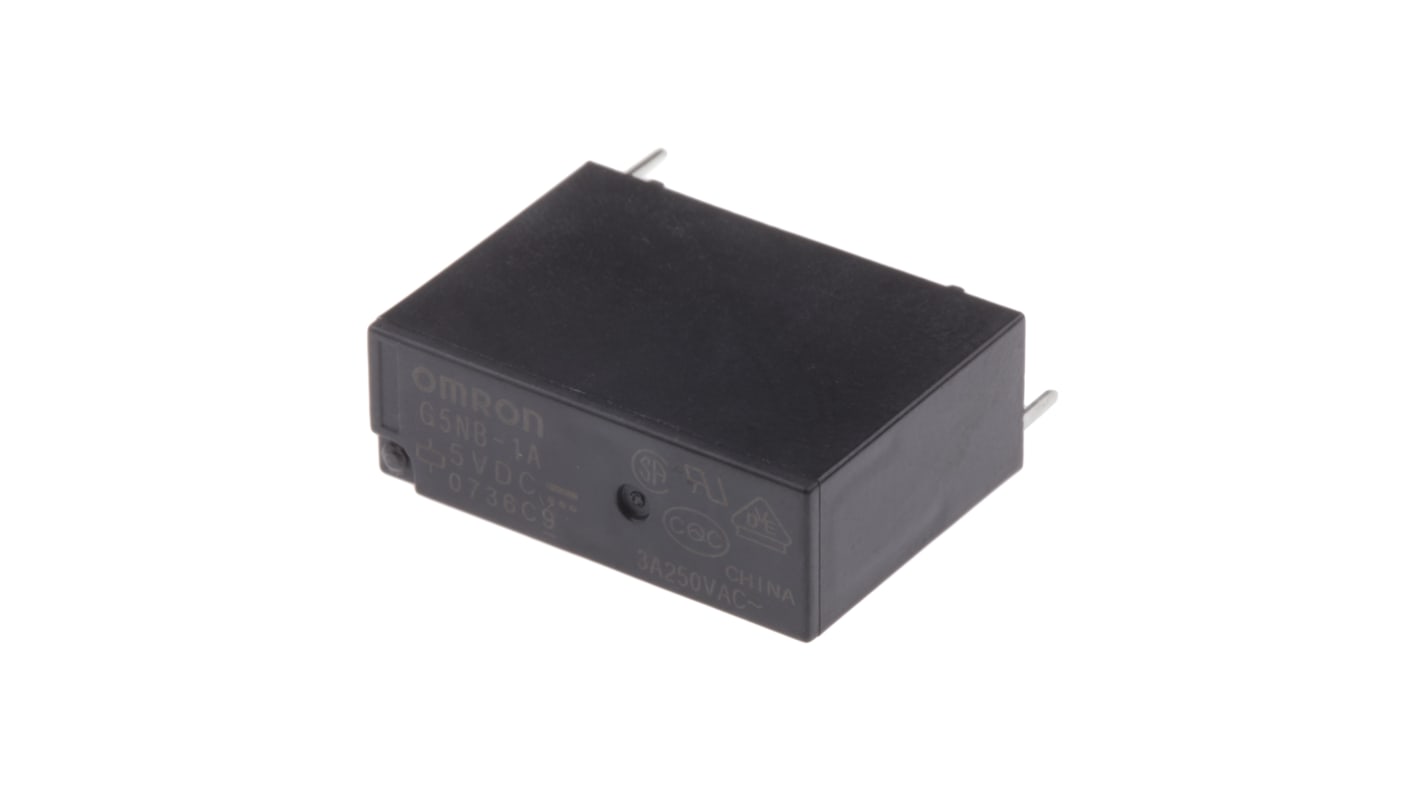

Omron PCB Mount Power Relay, 5V dc Coil, 5A Switching Current, SPST

View all Power Relays
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Packaging Options:
RS Stock No.:
683-9205
Mfr. Part No.:
G5NB-1A DC5
Brand:
Omron
Find similar products by selecting one or more attributes.
Select all

Brand

Omron

Coil Voltage

5V dc

Contact Configuration

SPST

Mounting Type

PCB Mount

Switching Current

5A

Number of Poles

1

Latching

No

Terminal Type

Through Hole

Length

20.5mm

Coil Resistance

125Ω

Depth

7.2mm

Height

15.3mm

Maximum Operating Temperature

+70°C

Series

G5NB

Minimum Operating Temperature

-40°C

Maximum Switching Power DC

90 W

Maximum Switching Power AC

375VA

Application

Power

G5NB Series


Compact slim body (20.5x15.3x7.2mm) single pole relays with high isolation between coil and contacts
High withstand voltage rating of 10kV (1.2 x 50μs) between coil and contacts
Highly efficient magnetic circuit for high sensitivity (200 mW)
Tracking resistance: CTI>250

Approvals

UL, CSA, VDE
