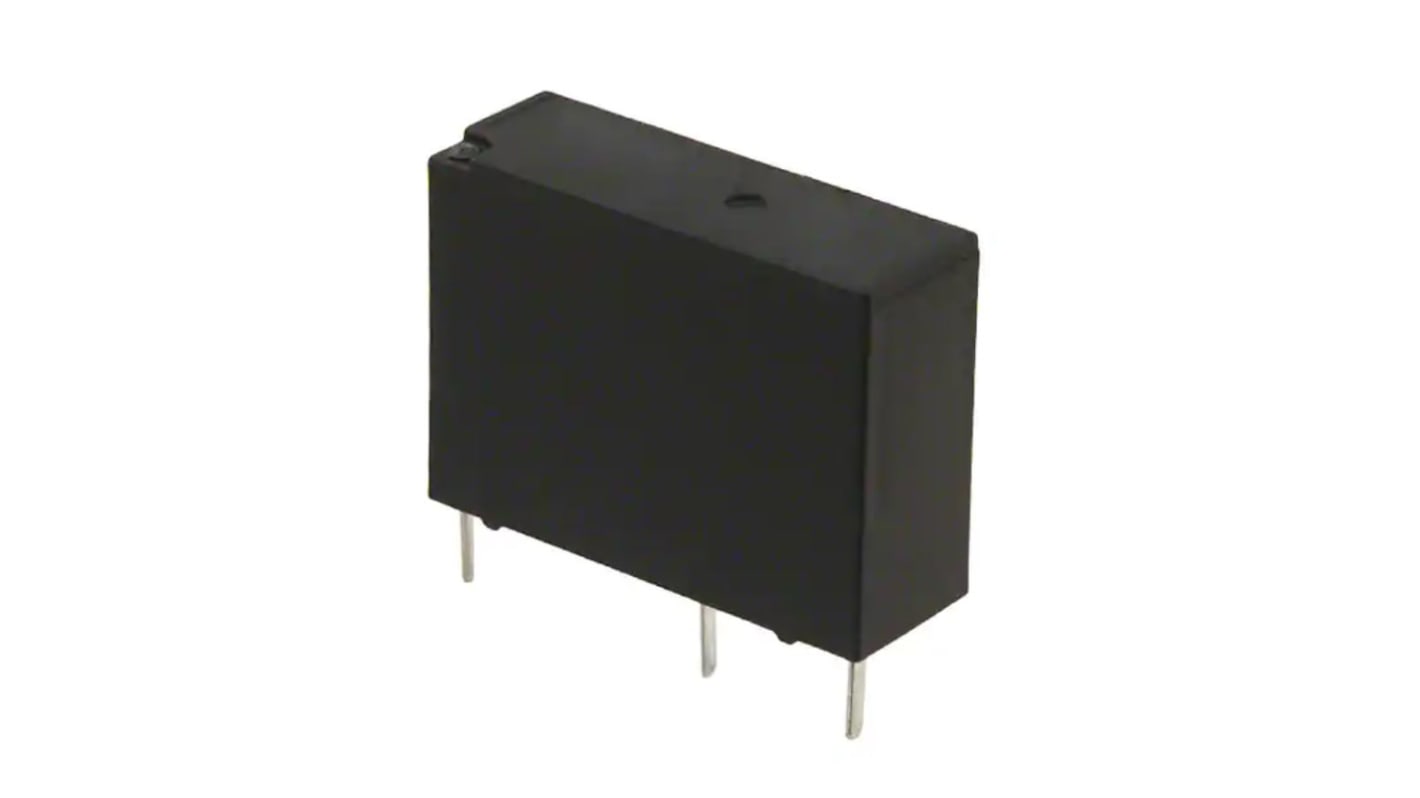

Aratas PCB Power Relay, 12V dc Coil, 5A Switching Current, SPST
- RS Stock No.:
- 213-2133
- Mfr. Part No.:
- G5NB-1A-E DC12
- Brand:
- Aratas
Subtotal (1 tray of 500 units)*
£1,299.50
(exc. VAT)
£1,559.50
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 21 April 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tray* |
|---|---|---|
| 500 + | £2.599 | £1,299.50 |
*price indicative
- RS Stock No.:
- 213-2133
- Mfr. Part No.:
- G5NB-1A-E DC12
- Brand:
- Aratas
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Aratas | |
| Coil Voltage | 12V dc | |
| Product Type | Power Relay | |
| Contact Configuration | SPST | |
| Mount Type | PCB | |
| Series | G5NB | |
| Terminal Type | PCB Pin | |
| Switching Current | 5A | |
| Minimum Operating Temperature | -40°C | |
| Switching Power | 1.3kVA | |
| Switching AC Voltage | 250V ac | |
| Switching DC Voltage | 30V dc | |
| Maximum Operating Temperature | 70°C | |
| Coil Resistance | 720Ω | |
| Width | 7.2mm | |
| Standards/Approvals | RoHS | |
| Length | 20.5mm | |
| Coil Power | 200mW | |
| Height | 15.3mm | |
| Contact Resistance | 100mΩ | |
| Select all | ||
|---|---|---|
Brand Aratas | ||
Coil Voltage 12V dc | ||
Product Type Power Relay | ||
Contact Configuration SPST | ||
Mount Type PCB | ||
Series G5NB | ||
Terminal Type PCB Pin | ||
Switching Current 5A | ||
Minimum Operating Temperature -40°C | ||
Switching Power 1.3kVA | ||
Switching AC Voltage 250V ac | ||
Switching DC Voltage 30V dc | ||
Maximum Operating Temperature 70°C | ||
Coil Resistance 720Ω | ||
Width 7.2mm | ||
Standards/Approvals RoHS | ||
Length 20.5mm | ||
Coil Power 200mW | ||
Height 15.3mm | ||
Contact Resistance 100mΩ | ||
- COO (Country of Origin):
- MY
The Omron G5NB PCB Power Relay has 1-pole 5A Switching Capability and 10 kV Impulse Withstand Voltage. The G5NB PCB Power Relay has application such as Water heaters, Refrigerators, Air conditioners, Home appliances and Small electric appliances.
Highly efficient magnetic circuit for high sensitivity (200 mW)
PCB terminals
