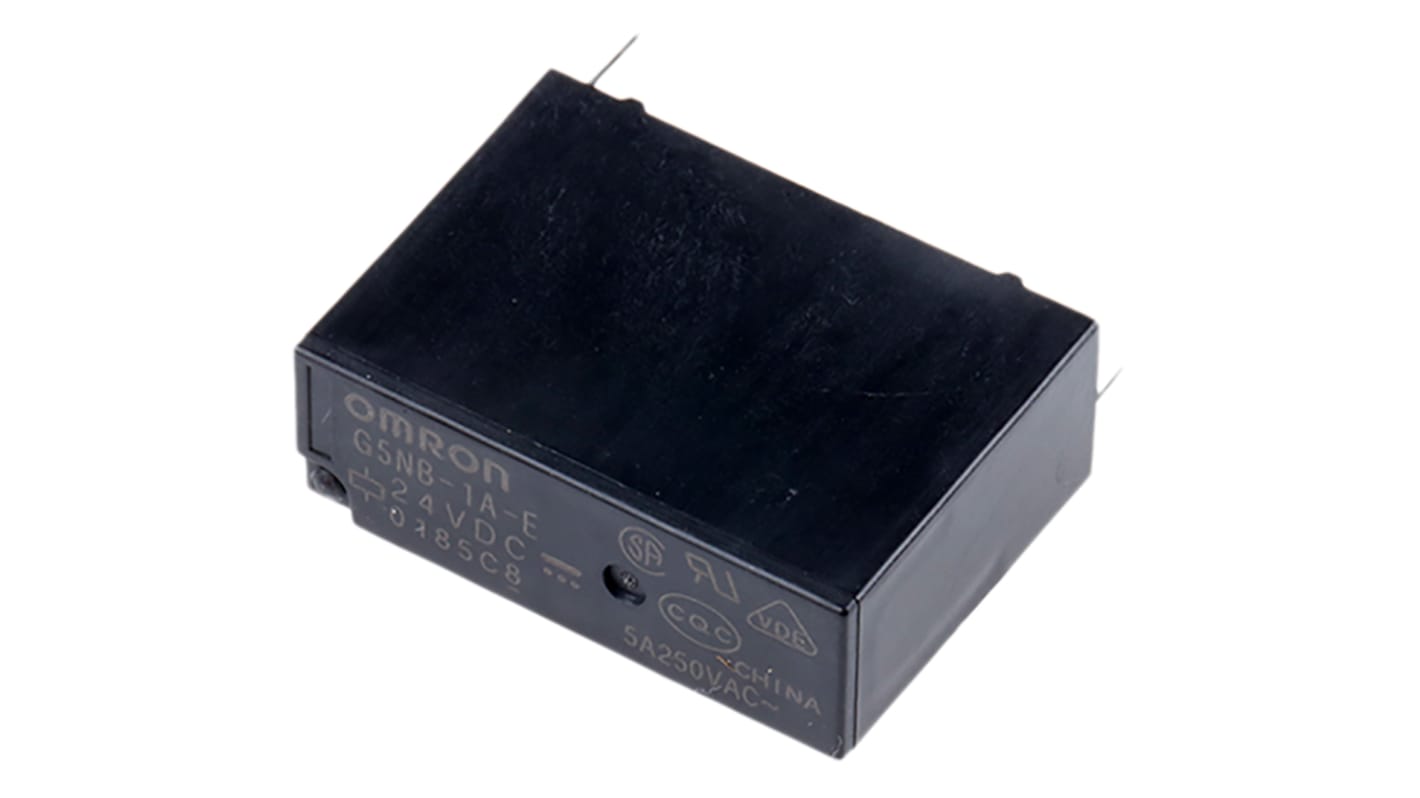

Omron PCB Mount Power Relay, 24V dc Coil, 5A Switching Current, SPST
- RS Stock No.:
- 600-8274
- Mfr. Part No.:
- G5NB-1A-E DC24
- Brand:
- Omron
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£1.65
(exc. VAT)
£1.98
(inc. VAT)
- RS Stock No.:
- 600-8274
- Mfr. Part No.:
- G5NB-1A-E DC24
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Omron | |
Coil Voltage | 24V dc | |
Contact Configuration | SPST | |
Mounting Type | PCB Mount | |
Switching Current | 5A | |
Number of Poles | 1 | |
Series | G5NB | |
Latching | No | |
Terminal Type | Through Hole | |
Length | 20.5mm | |
Coil Resistance | 2880Ω | |
Coil Power | 200mW | |
Life | 100000 (Electrical) cycles | |
Height | 15.3mm | |
Minimum Operating Temperature | -40°C | |
Depth | 7.2mm | |
Isolation Coil To Contact | 4kV ac | |
Maximum Operating Temperature | +70°C | |
Maximum Switching Power DC | 90 W | |
Maximum Switching Power AC | 1.25 kVA | |
Application | Power | |
Select all | ||
---|---|---|
Brand Omron | ||
Coil Voltage 24V dc | ||
Contact Configuration SPST | ||
Mounting Type PCB Mount | ||
Switching Current 5A | ||
Number of Poles 1 | ||
Series G5NB | ||
Latching No | ||
Terminal Type Through Hole | ||
Length 20.5mm | ||
Coil Resistance 2880Ω | ||
Coil Power 200mW | ||
Life 100000 (Electrical) cycles | ||
Height 15.3mm | ||
Minimum Operating Temperature -40°C | ||
Depth 7.2mm | ||
Isolation Coil To Contact 4kV ac | ||
Maximum Operating Temperature +70°C | ||
Maximum Switching Power DC 90 W | ||
Maximum Switching Power AC 1.25 kVA | ||
Application Power | ||
- COO (Country of Origin):
- CN
G5NB Series
Compact slim body (20.5x15.3x7.2mm) single pole relays with high isolation between coil and contacts
High withstand voltage rating of 10kV (1.2 x 50μs) between coil and contacts
Highly efficient magnetic circuit for high sensitivity (200 mW)
Tracking resistance: CTI>250
High withstand voltage rating of 10kV (1.2 x 50μs) between coil and contacts
Highly efficient magnetic circuit for high sensitivity (200 mW)
Tracking resistance: CTI>250
Approvals
UL, CSA, VDE
