Omron PCB Power Relay, 24V dc Coil, 10A Switching Current, SPST
- RS Stock No.:
- 434-1579
- Distrelec Article No.:
- 301-61-152
- Mfr. Part No.:
- G5Q-1A DC24 (TY)
- Brand:
- Omron

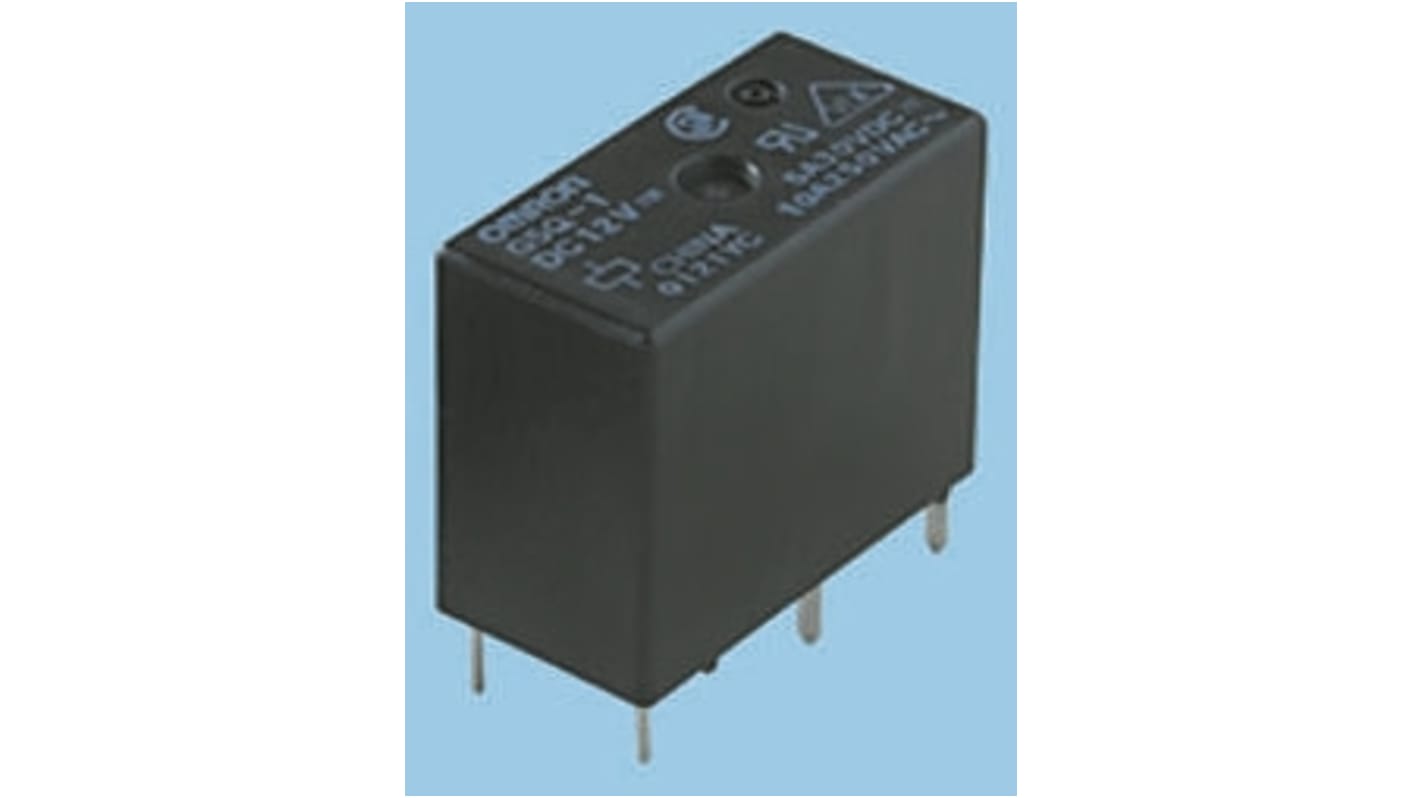

Image representative of range
Subtotal (1 unit)*
£1.84
(exc. VAT)
£2.21
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £1.84 |
*price indicative
- RS Stock No.:
- 434-1579
- Distrelec Article No.:
- 301-61-152
- Mfr. Part No.:
- G5Q-1A DC24 (TY)
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Coil Voltage | 24V dc | |
| Product Type | Power Relay | |
| Contact Configuration | SPST | |
| Mount Type | PCB | |
| Series | G5Q | |
| Terminal Type | Solder | |
| Switching Current | 10A | |
| Minimum Operating Temperature | -40°C | |
| Switching AC Voltage | 400V ac | |
| Maximum Operating Temperature | 85°C | |
| Coil Resistance | 2.9kΩ | |
| Coil Power | 4kW | |
| Length | 20.3mm | |
| Width | 10.3mm | |
| Height | 15.8mm | |
| Standards/Approvals | UL, RoHS, IEC, EN, CE | |
| Contact Material | Silver Alloy | |
| Select all | ||
|---|---|---|
Brand Omron | ||
Coil Voltage 24V dc | ||
Product Type Power Relay | ||
Contact Configuration SPST | ||
Mount Type PCB | ||
Series G5Q | ||
Terminal Type Solder | ||
Switching Current 10A | ||
Minimum Operating Temperature -40°C | ||
Switching AC Voltage 400V ac | ||
Maximum Operating Temperature 85°C | ||
Coil Resistance 2.9kΩ | ||
Coil Power 4kW | ||
Length 20.3mm | ||
Width 10.3mm | ||
Height 15.8mm | ||
Standards/Approvals UL, RoHS, IEC, EN, CE | ||
Contact Material Silver Alloy | ||
G5Q Series (USA Version)
Compact (20.3x15.8x10.3mm) single pole relays with high isolation between coil and contacts
High withstand voltage rating of 8 kV (1.2 x 50μs) between coil and contacts
Low coil consumption
UL class F coil insulation
Approvals
UL, CSA, VDE
