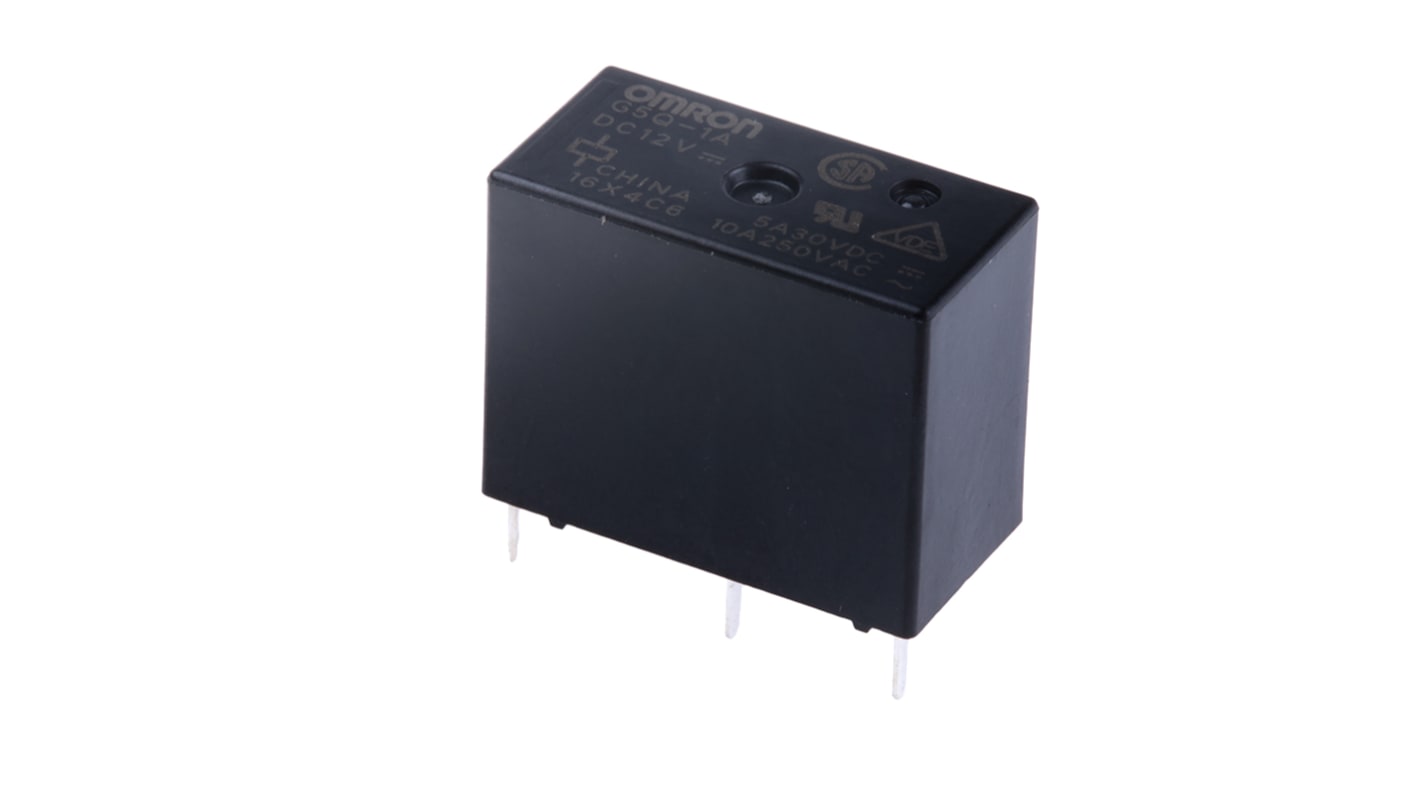

Omron PCB Mount Power Relay, 12V dc Coil, 10A Switching Current, SPST
- RS Stock No.:
- 434-1563
- Mfr. Part No.:
- G5Q-1A DC12 (TY)
- Brand:
- Omron
Bulk discount available
Subtotal (1 unit)*
£1.65
(exc. VAT)
£1.98
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 120 unit(s) shipping from 01 October 2025
- Plus 184 unit(s) shipping from 01 October 2025
- Plus 250 unit(s) shipping from 08 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 24 | £1.65 |
| 25 - 99 | £1.36 |
| 100 - 249 | £1.35 |
| 250 - 499 | £1.29 |
| 500 + | £1.22 |
*price indicative
- RS Stock No.:
- 434-1563
- Mfr. Part No.:
- G5Q-1A DC12 (TY)
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Coil Voltage | 12V dc | |
| Contact Configuration | SPST | |
| Mounting Type | PCB Mount | |
| Switching Current | 10A | |
| Number of Poles | 1 | |
| Series | G5Q | |
| Latching | No | |
| Terminal Type | Through Hole | |
| Length | 20.3mm | |
| Coil Resistance | 720Ω | |
| Minimum Operating Temperature | -40°C | |
| Height | 15.8mm | |
| Maximum Operating Temperature | +85°C | |
| Depth | 10.3mm | |
| Contact Material | Silver | |
| Maximum Switching Power DC | 150 W | |
| Maximum Switching Power AC | 1.25 kVA | |
| Application | Power | |
Select all | ||
|---|---|---|
Brand Omron | ||
Coil Voltage 12V dc | ||
Contact Configuration SPST | ||
Mounting Type PCB Mount | ||
Switching Current 10A | ||
Number of Poles 1 | ||
Series G5Q | ||
Latching No | ||
Terminal Type Through Hole | ||
Length 20.3mm | ||
Coil Resistance 720Ω | ||
Minimum Operating Temperature -40°C | ||
Height 15.8mm | ||
Maximum Operating Temperature +85°C | ||
Depth 10.3mm | ||
Contact Material Silver | ||
Maximum Switching Power DC 150 W | ||
Maximum Switching Power AC 1.25 kVA | ||
Application Power | ||
G5Q Series (USA Version)
Compact (20.3x15.8x10.3mm) single pole relays with high isolation between coil and contacts
High withstand voltage rating of 8 kV (1.2 x 50μs) between coil and contacts
Low coil consumption
UL class F coil insulation
High withstand voltage rating of 8 kV (1.2 x 50μs) between coil and contacts
Low coil consumption
UL class F coil insulation
Approvals
UL, CSA, VDE
