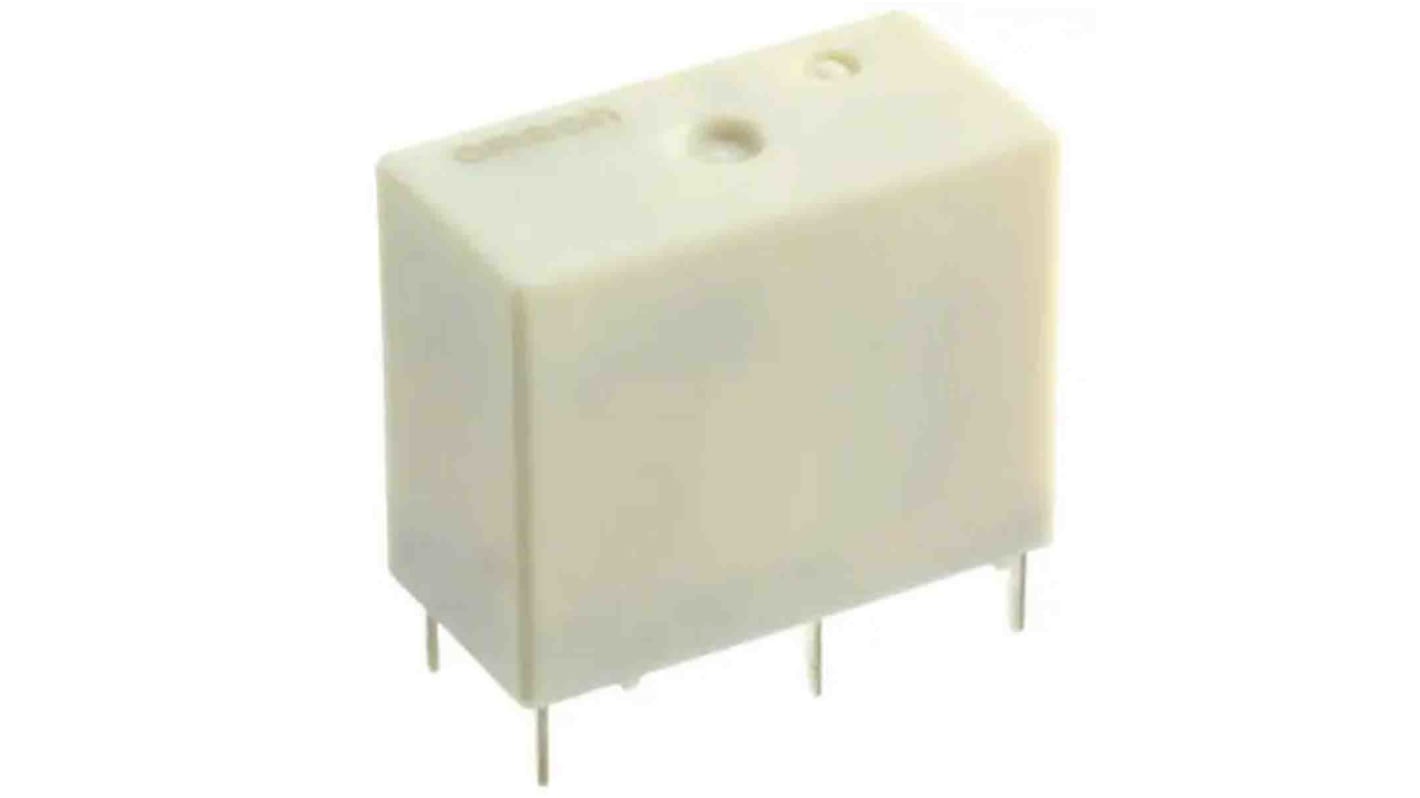

Omron PCB Power Relay, 24V dc Coil, 10A Switching Current, SPST

View all Power Relays

Subtotal (1 pack of 5 units)*

£6.67

(exc. VAT)

£8.005

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 240 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
5 +£1.334£6.67

*price indicative

RS Stock No.:
205-2015
Mfr. Part No.:
G5Q-1A-EL-HA-VH DC24 (TY)
Brand:
Omron
Find similar products by selecting one or more attributes.
Select all

Brand

Omron

Product Type

Power Relay

Coil Voltage

24V dc

Contact Configuration

SPST

Mount Type

PCB

Series

G5Q

Terminal Type

PCB Pin

Switching Current

10A

Switching AC Voltage

277V ac

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

85°C

Coil Resistance

1.4kΩ

Height

18.9mm

Length

20mm

Coil Power

400mW

Standards/Approvals

RoHS

Width

10mm

Contact Material

Silver Alloy

Contact Resistance

100mΩ

COO (Country of Origin):
CN
The Omron Electronic Components PCB Power Relay with High inrush capacity performance ideal for motor switching of 3 A with high inrush 30 A. It can be used for Home appliances, Building automation, Lighting control, Output of control system, FA Input or

1,000 MO minimum insulation resistance

5% to 85% ambient operating humidity

-40°C to 105°C ambient operating temperature
