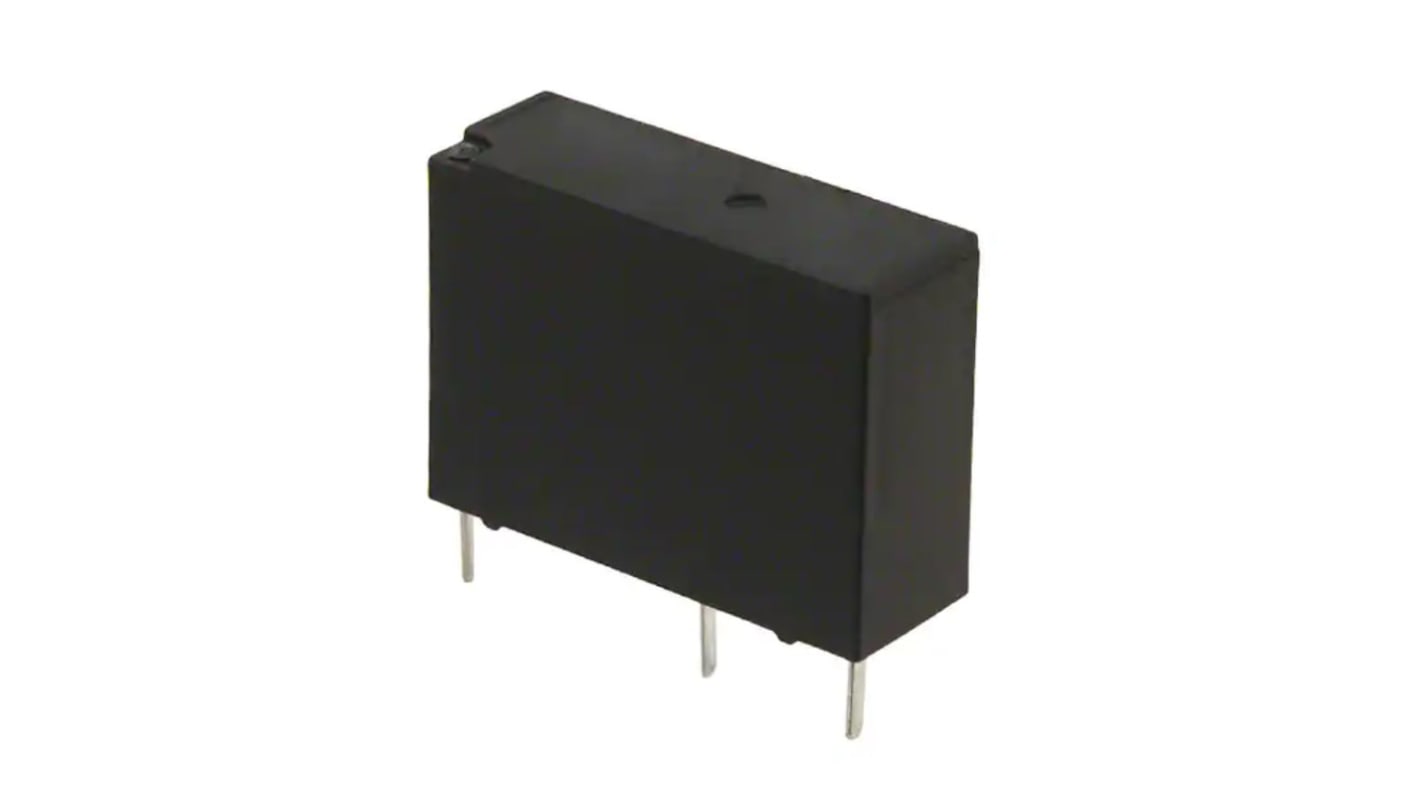

Aratas PCB Power Relay, 5V dc Coil, 5A Switching Current, SPST
- RS Stock No.:
- 213-2132
- Mfr. Part No.:
- G5NB-1A4-E DC5
- Brand:
- Aratas
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£3.16
(exc. VAT)
£3.79
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 317 unit(s) shipping from 05 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £3.16 |
| 10 - 24 | £3.01 |
| 25 - 49 | £2.80 |
| 50 - 99 | £2.67 |
| 100 + | £2.43 |
*price indicative
- RS Stock No.:
- 213-2132
- Mfr. Part No.:
- G5NB-1A4-E DC5
- Brand:
- Aratas
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Aratas | |
| Coil Voltage | 5V dc | |
| Product Type | Power Relay | |
| Contact Configuration | SPST | |
| Mount Type | PCB | |
| Series | G5NB | |
| Terminal Type | PCB Pin | |
| Switching Current | 5A | |
| Switching DC Voltage | 30V dc | |
| Minimum Operating Temperature | -40°C | |
| Switching Power | 1.3kVA | |
| Switching AC Voltage | 250V ac | |
| Coil Resistance | 125Ω | |
| Maximum Operating Temperature | 70°C | |
| Length | 20.5mm | |
| Height | 15.3mm | |
| Coil Power | 200mW | |
| Width | 7.2mm | |
| Standards/Approvals | RoHS | |
| Contact Resistance | 100mΩ | |
| Select all | ||
|---|---|---|
Brand Aratas | ||
Coil Voltage 5V dc | ||
Product Type Power Relay | ||
Contact Configuration SPST | ||
Mount Type PCB | ||
Series G5NB | ||
Terminal Type PCB Pin | ||
Switching Current 5A | ||
Switching DC Voltage 30V dc | ||
Minimum Operating Temperature -40°C | ||
Switching Power 1.3kVA | ||
Switching AC Voltage 250V ac | ||
Coil Resistance 125Ω | ||
Maximum Operating Temperature 70°C | ||
Length 20.5mm | ||
Height 15.3mm | ||
Coil Power 200mW | ||
Width 7.2mm | ||
Standards/Approvals RoHS | ||
Contact Resistance 100mΩ | ||
- COO (Country of Origin):
- MY
The Omron G5NB PCB Power Relay has 1-pole 5A Switching Capability and 10 kV Impulse Withstand Voltage. The G5NB PCB Power Relay has application such as Water heaters, Refrigerators, Air conditioners, Home appliances and Small electric appliances.
1a (SPST-NO) contact form
