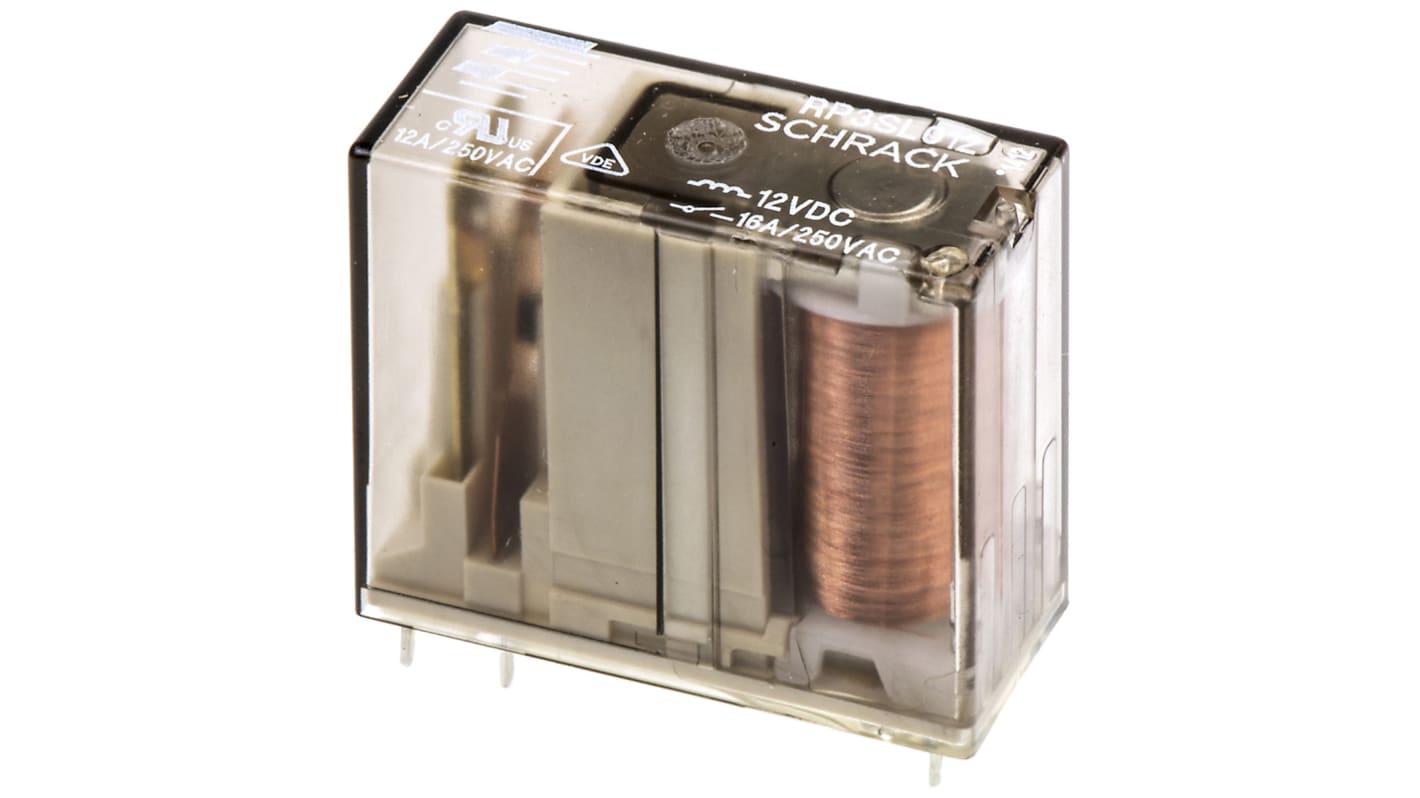

TE Connectivity PCB Mount Non-Latching Relay, 12V dc Coil, 16A Switching Current, SPST
- RS Stock No.:
- 376-751
- Mfr. Part No.:
- RP3SL012
- Brand:
- TE Connectivity
27 In stock - FREE next working day delivery available
16 available from Europe for delivery within 1 working day(s).
Added
Price Each
£13.94
(exc. VAT)
£16.73
(inc. VAT)
| Units | Per unit |
| 1 - 9 | £13.94 |
| 10 - 19 | £12.03 |
| 20 - 99 | £11.17 |
| 100 + | £10.30 |
- RS Stock No.:
- 376-751
- Mfr. Part No.:
- RP3SL012
- Brand:
- TE Connectivity
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CZ
Product Details
RP3SL Series
120A, 20ms inrush capability
5mm pins
DIN rail mounting sockets available see stock no. 400-9130
Applications: lighting control, timers, motor control, home automation
Coil power: 500 mW
Operating temperature range: -40 to +70°C
Creepage & clearance: 8 mm
Isolation coil to contact: 4000Vac
Switching voltage: 250Vac
H 25.5, W 29, D 12.6
5mm pins
DIN rail mounting sockets available see stock no. 400-9130
Applications: lighting control, timers, motor control, home automation
Coil power: 500 mW
Operating temperature range: -40 to +70°C
Creepage & clearance: 8 mm
Isolation coil to contact: 4000Vac
Switching voltage: 250Vac
H 25.5, W 29, D 12.6
Approvals
UL, CSA, VDE
Specifications
Attribute | Value |
|---|---|
| Coil Voltage | 12V dc |
| Contact Configuration | SPST |
| Mounting Type | PCB Mount |
| Switching Current | 16A |
| Number of Poles | 1 |
| Terminal Type | Through Hole |
| Length | 29mm |
| Coil Resistance | 270 Ω |
| Height | 25.5mm |
| Depth | 12.6mm |
| Contact Material | Silver Alloy |
| Maximum Operating Temperature | +70°C |
| Minimum Operating Temperature | -40°C |
| Maximum Switching Power AC | 4 kVA |
| Application | Power |
