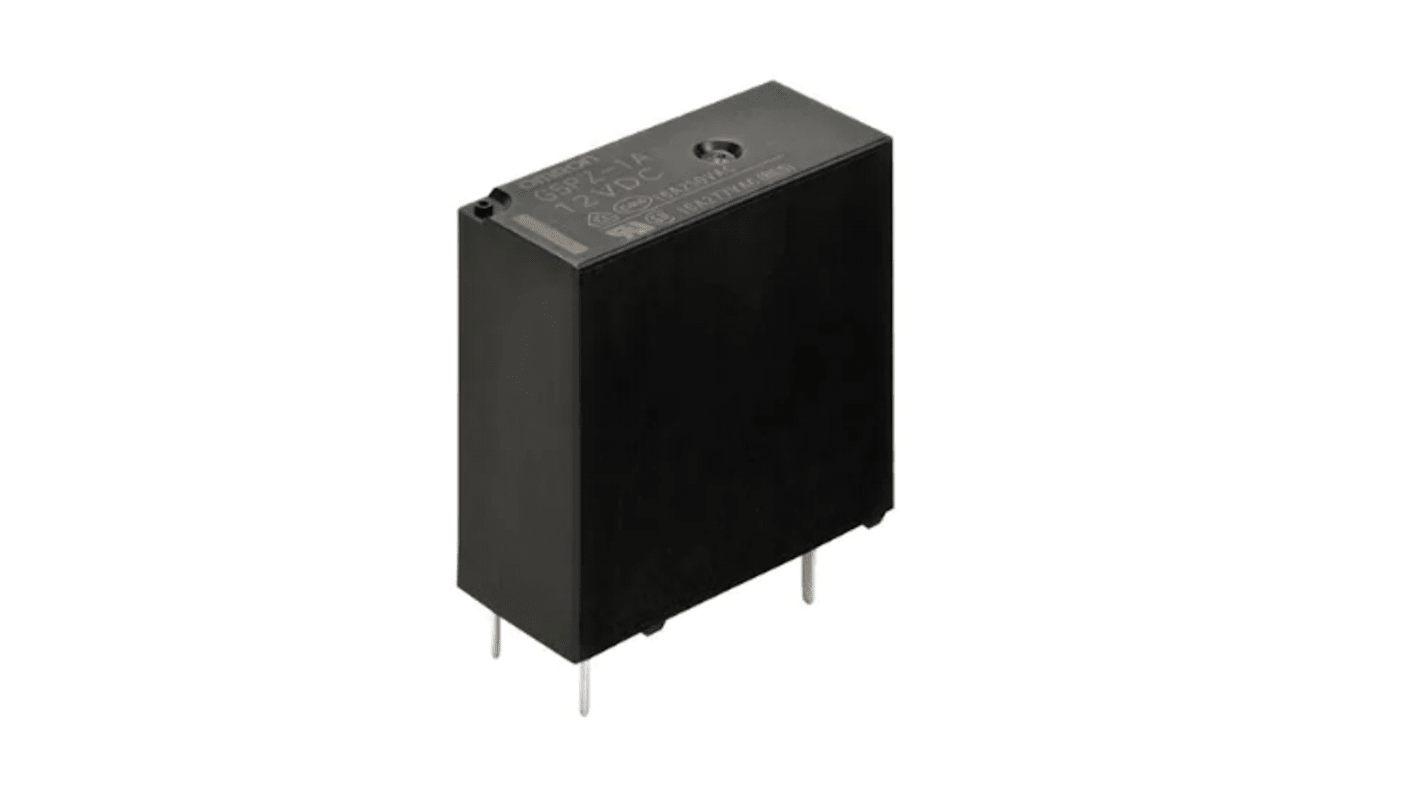

Omron PCB Non-Latching Relay, 24V dc Coil, 16A Switching Current, SPST
- RS Stock No.:
- 232-6261
- Distrelec Article No.:
- 301-93-226
- Mfr. Part No.:
- G5PZ-1A DC24
- Brand:
- Omron
Bulk discount available
Subtotal (1 unit)*
£2.32
(exc. VAT)
£2.78
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 37 unit(s) ready to ship
- Plus 84 unit(s) shipping from 24 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £2.32 |
| 10 - 49 | £2.26 |
| 50 + | £2.20 |
*price indicative
- RS Stock No.:
- 232-6261
- Distrelec Article No.:
- 301-93-226
- Mfr. Part No.:
- G5PZ-1A DC24
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Product Type | Non-Latching Relay | |
| Coil Voltage | 24V dc | |
| Contact Configuration | SPST | |
| Mount Type | PCB | |
| Series | G5PZ | |
| Terminal Type | Screw | |
| Switching Current | 16A | |
| Minimum Operating Temperature | -40°C | |
| Switching DC Voltage | 24V dc | |
| Coil Resistance | 272Ω | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | IEC60664-1, RoHS | |
| Width | 14mm | |
| Height | 20mm | |
| Length | 30mm | |
| Coil Power | 530mW | |
| Contact Material | Silver Alloy | |
| Select all | ||
|---|---|---|
Brand Omron | ||
Product Type Non-Latching Relay | ||
Coil Voltage 24V dc | ||
Contact Configuration SPST | ||
Mount Type PCB | ||
Series G5PZ | ||
Terminal Type Screw | ||
Switching Current 16A | ||
Minimum Operating Temperature -40°C | ||
Switching DC Voltage 24V dc | ||
Coil Resistance 272Ω | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals IEC60664-1, RoHS | ||
Width 14mm | ||
Height 20mm | ||
Length 30mm | ||
Coil Power 530mW | ||
Contact Material Silver Alloy | ||
The Omron G5PZ series for compact PCB power relay use for home conditioners and appliances. Switching current is 20 A and enclosure rating is flux protection.
10.5 mm (W) slim size and 1 pole 16 A/20 A switching capability
High sensitivity of 530 mW coil consumption and further saving energy with holding voltage 50%
Min. 6.4 mm of insulation distance and 10 kV impulse withstand voltage (between coil and contact
