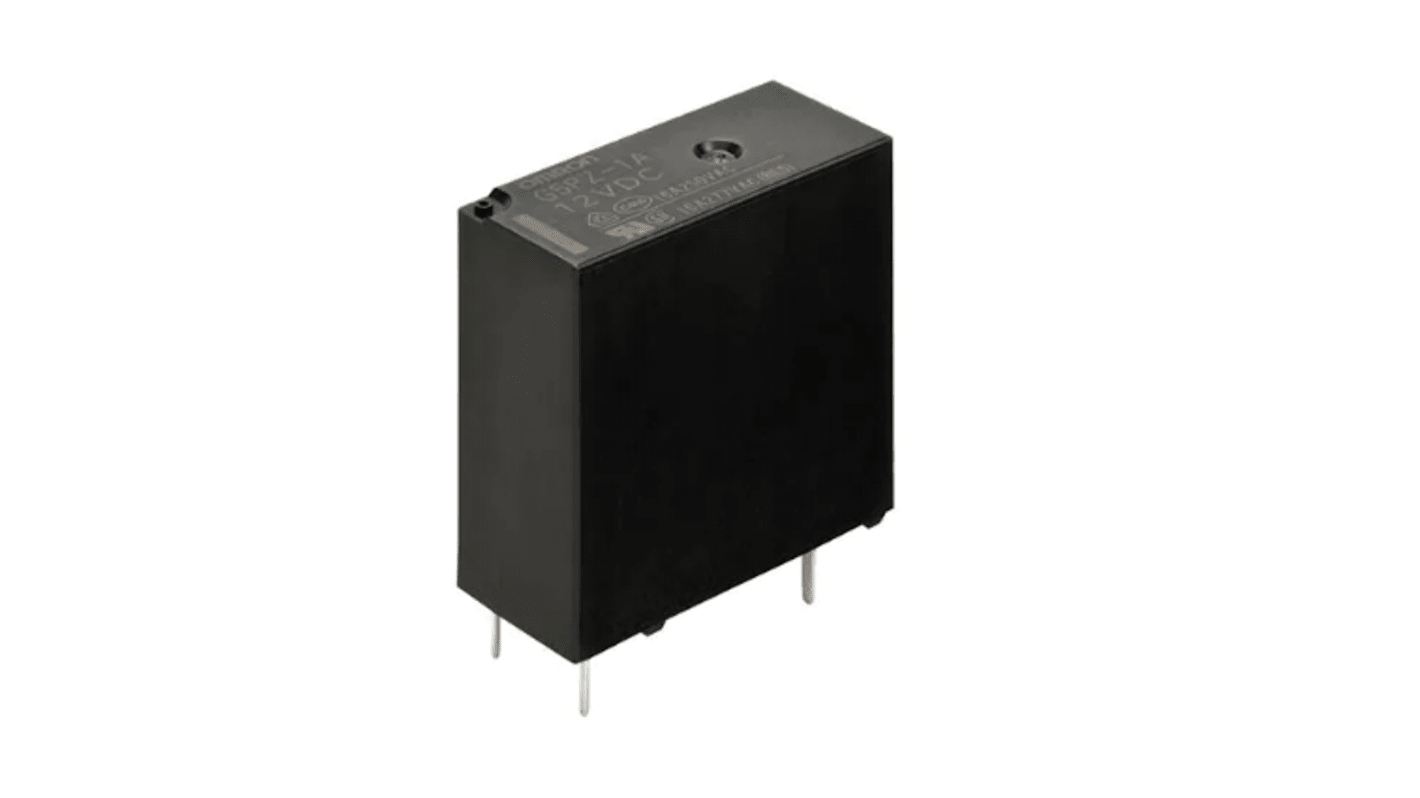

Omron PCB Mount Non-Latching Relay, 12V dc Coil, 16A Switching Current, SPST
- RS Stock No.:
- 232-6259
- Distrelec Article No.:
- 301-93-225
- Mfr. Part No.:
- G5PZ-1A DC12
- Brand:
- Omron
Bulk discount available
Subtotal (1 unit)*
£2.28
(exc. VAT)
£2.74
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 19 unit(s) shipping from 06 October 2025
- Plus 37 unit(s) shipping from 05 January 2026
- Plus 999,999,943 unit(s) shipping from 13 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 9 | £2.28 |
10 - 49 | £2.23 |
50 + | £2.16 |
*price indicative
- RS Stock No.:
- 232-6259
- Distrelec Article No.:
- 301-93-225
- Mfr. Part No.:
- G5PZ-1A DC12
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Omron | |
Coil Voltage | 12V dc | |
Contact Configuration | SPST | |
Mounting Type | PCB Mount | |
Switching Current | 16A | |
Number of Poles | 1 | |
Series | G5PZ | |
Coil Resistance | 272 Ω | |
Coil Power | 530mW | |
Isolation Coil To Contact | 10kV | |
Number of Coils | Single | |
Select all | ||
---|---|---|
Brand Omron | ||
Coil Voltage 12V dc | ||
Contact Configuration SPST | ||
Mounting Type PCB Mount | ||
Switching Current 16A | ||
Number of Poles 1 | ||
Series G5PZ | ||
Coil Resistance 272 Ω | ||
Coil Power 530mW | ||
Isolation Coil To Contact 10kV | ||
Number of Coils Single | ||
- COO (Country of Origin):
- CN
The Omron G5PZ series for compact PCB power relay use for home conditioners and appliances. Switching current is 20 A and enclosure rating is flux protection.
10.5 mm (W) slim size and 1 pole 16 A/20 A switching capability
High sensitivity of 530 mW coil consumption and further saving energy with holding voltage 50%
Min. 6.4 mm of insulation distance and 10 kV impulse withstand voltage (between coil and contact
High sensitivity of 530 mW coil consumption and further saving energy with holding voltage 50%
Min. 6.4 mm of insulation distance and 10 kV impulse withstand voltage (between coil and contact
