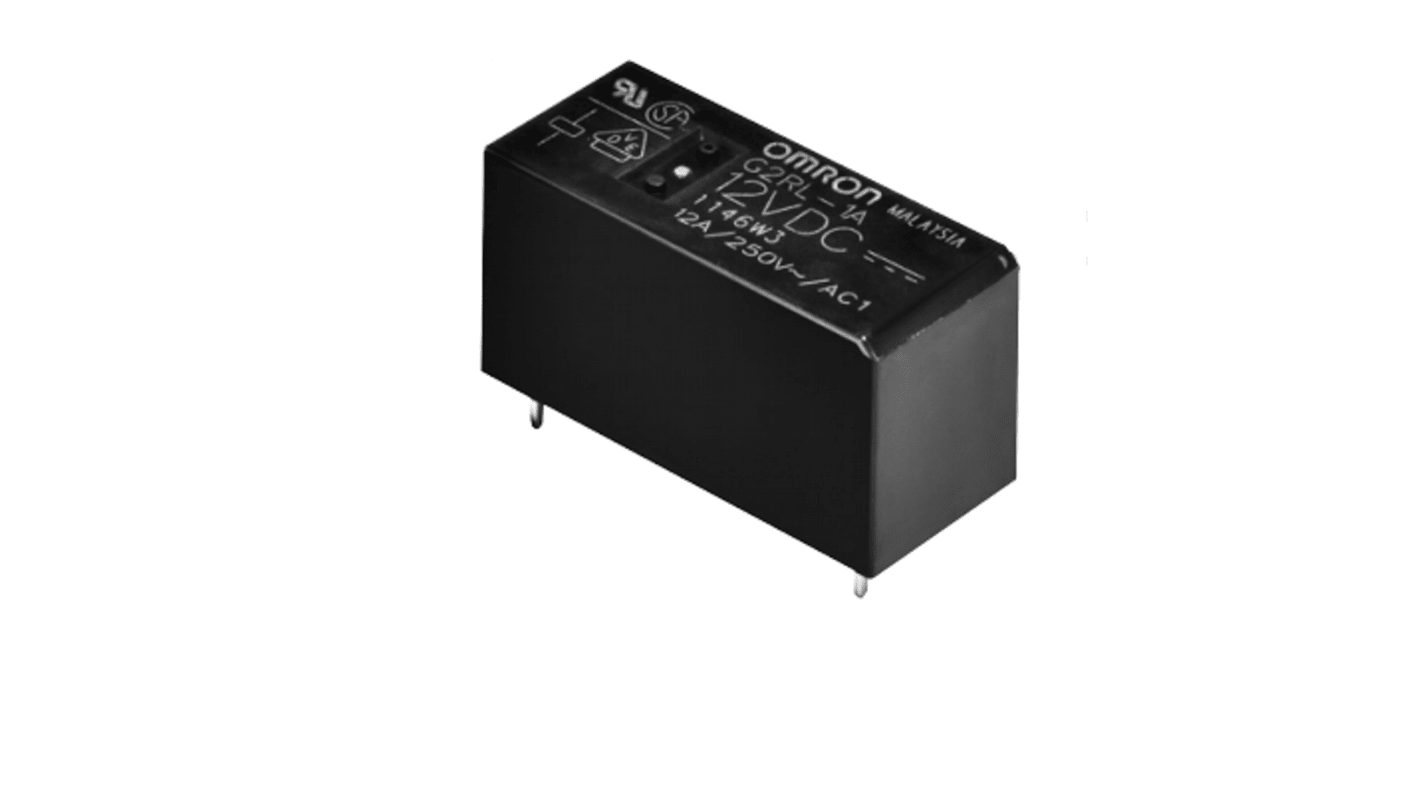

Omron PCB Mount Non-Latching Relay, 12V dc Coil, 12A Switching Current, SPST
- RS Stock No.:
- 232-6228
- Mfr. Part No.:
- G2RL-1A-PW1 DC12
- Brand:
- Omron
40 In stock - FREE next working day delivery available
Price Each
£3.92
(exc. VAT)
£4.70
(inc. VAT)
Units | Per unit |
---|---|
1 - 9 | £3.92 |
10 - 49 | £3.82 |
50 + | £3.73 |
- RS Stock No.:
- 232-6228
- Mfr. Part No.:
- G2RL-1A-PW1 DC12
- Brand:
- Omron
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- MY
Product Details
The Omron G2RL series low profile power relay with 15.7 mm height, ideal for incorporation in miniature equipment's. It has a 1 pole and use for home appliances and industrial machinery.
A wide variety of single pole high-capacity (16 A)
IEC/EN 60335-1 conformed. (-HA Model)
Satisfies ambient operating temperature requirement of 85°C and 105°C (-CV Model)
Clearance and creepage distance: 8 mm / 8 mm min
Reduced power consumption with volt
IEC/EN 60335-1 conformed. (-HA Model)
Satisfies ambient operating temperature requirement of 85°C and 105°C (-CV Model)
Clearance and creepage distance: 8 mm / 8 mm min
Reduced power consumption with volt
Specifications
Attribute | Value |
---|---|
Coil Voltage | 12V dc |
Contact Configuration | SPST |
Mounting Type | PCB Mount |
Switching Current | 12A |
Number of Poles | 1 |
Coil Resistance | 360 Ω |
Coil Power | 400mW |
Isolation Coil To Contact | 10kV |
Series | G2RL |
Number of Coils | Single |
