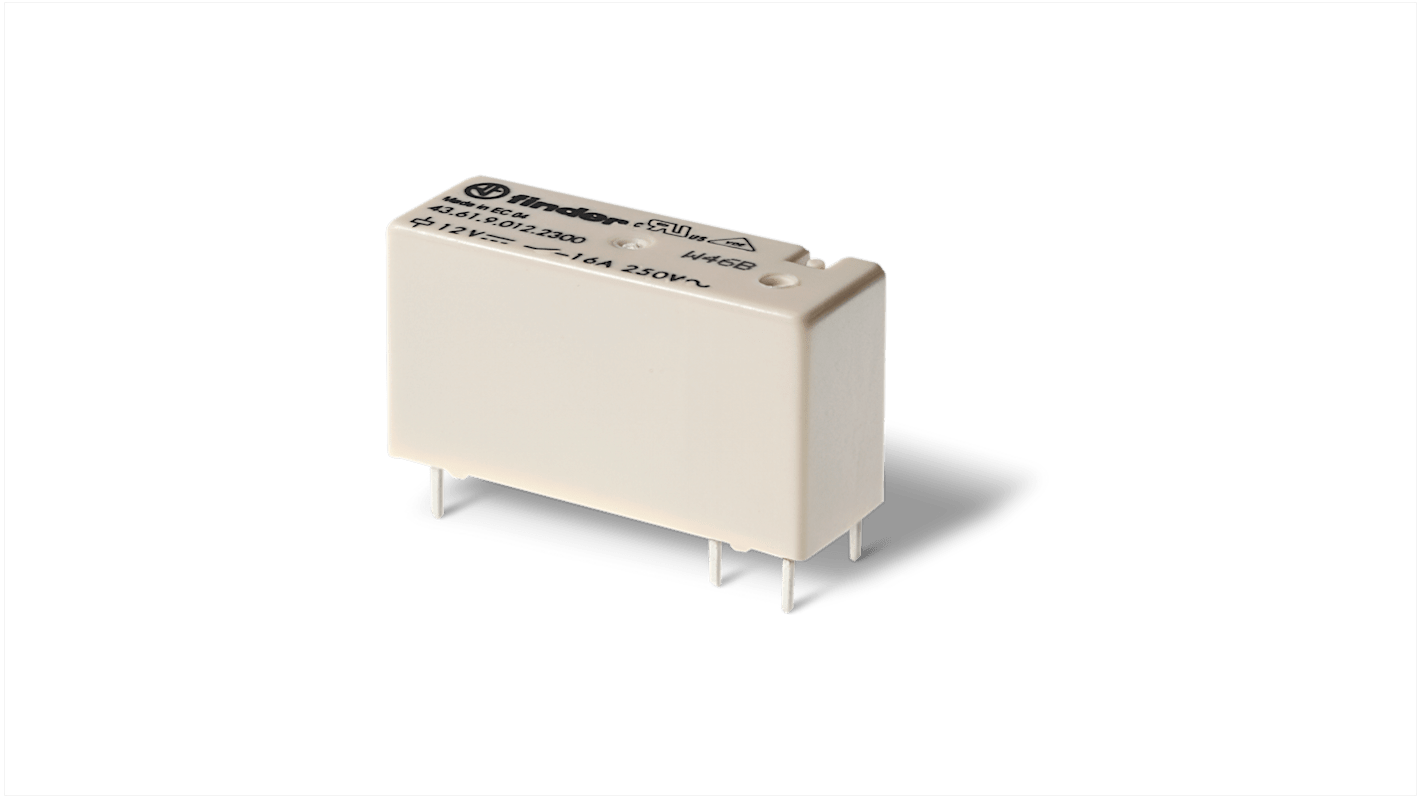

Finder PCB Non-Latching Relay, 48V dc Coil, 16A Switching Current, SPST
- RS Stock No.:
- 248-1378
- Mfr. Part No.:
- 436190482300
- Brand:
- Finder
Subtotal (1 pack of 20 units)*
£124.26
(exc. VAT)
£149.12
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 03 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 20 + | £6.213 | £124.26 |
*price indicative
- RS Stock No.:
- 248-1378
- Mfr. Part No.:
- 436190482300
- Brand:
- Finder
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Finder | |
| Product Type | Non-Latching Relay | |
| Coil Voltage | 48V dc | |
| Contact Configuration | SPST | |
| Mount Type | PCB | |
| Terminal Type | Solder | |
| Switching Current | 16A | |
| Minimum Operating Temperature | -40°C | |
| Switching AC Voltage | 250V ac | |
| Coil Resistance | 350Ω | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | CE, EAC, RoHS, UL, VDE | |
| Coil Power | 0.5W | |
| Height | 15mm | |
| Length | 29mm | |
| Width | 12mm | |
| Contact Material | Silver Nickel Alloy | |
| Select all | ||
|---|---|---|
Brand Finder | ||
Product Type Non-Latching Relay | ||
Coil Voltage 48V dc | ||
Contact Configuration SPST | ||
Mount Type PCB | ||
Terminal Type Solder | ||
Switching Current 16A | ||
Minimum Operating Temperature -40°C | ||
Switching AC Voltage 250V ac | ||
Coil Resistance 350Ω | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals CE, EAC, RoHS, UL, VDE | ||
Coil Power 0.5W | ||
Height 15mm | ||
Length 29mm | ||
Width 12mm | ||
Contact Material Silver Nickel Alloy | ||
The Finder's 43 series of miniature PCB relay has 5 mm pinning(NO/SPST, 10 A). It has 1 pole and sensitive DC coil with 48 V coil voltage. It is a flux proof device.
It is flux proof device with AgCdO contacts
