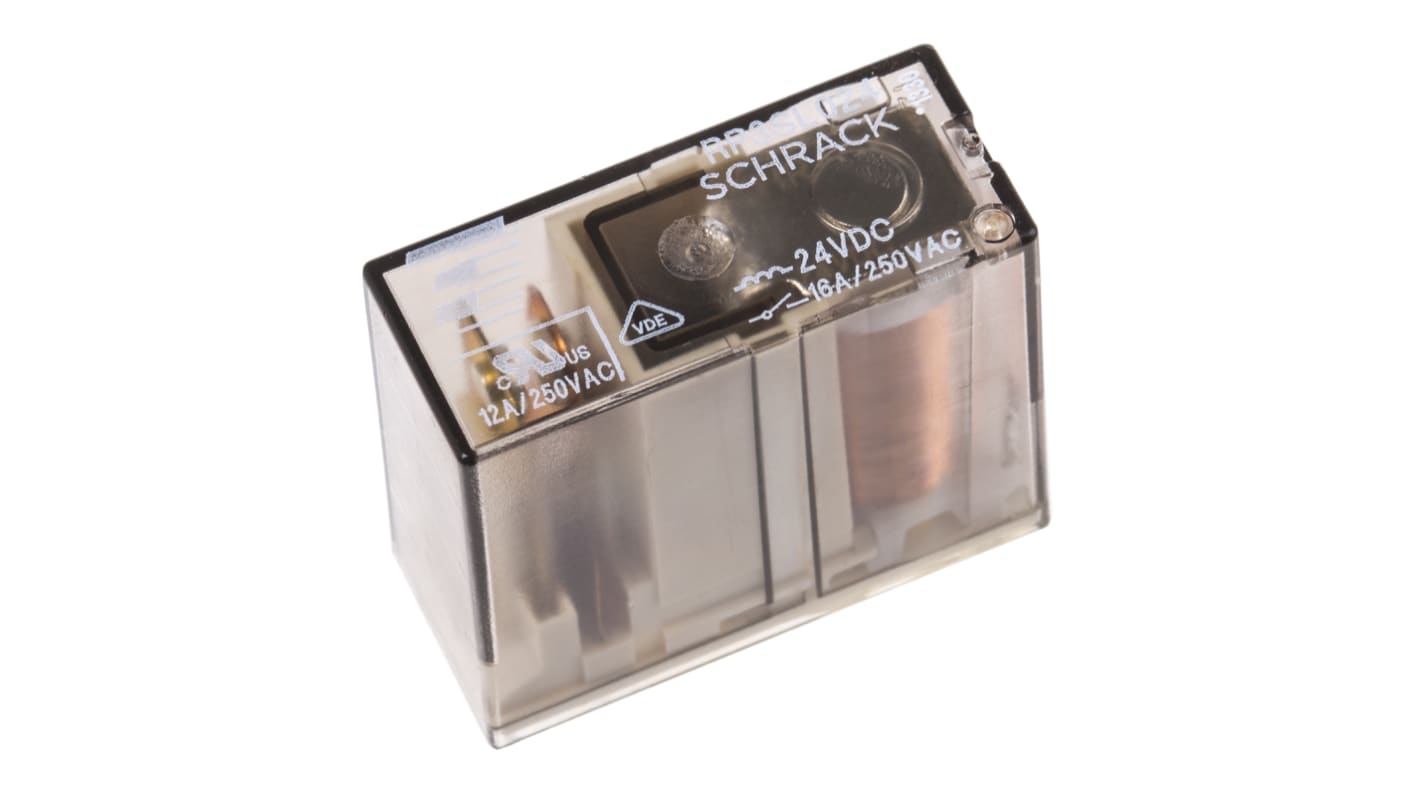

TE Connectivity PCB Non-Latching Relay, 24V dc Coil, 16A Switching Current, SPST
- RS Stock No.:
- 135-4475
- Mfr. Part No.:
- RP3SL024
- Brand:
- TE Connectivity
Bulk discount available
Subtotal (1 box of 20 units)*
£339.80
(exc. VAT)
£407.80
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Box* |
|---|---|---|
| 20 - 180 | £16.99 | £339.80 |
| 200 - 480 | £16.089 | £321.78 |
| 500 + | £15.58 | £311.60 |
*price indicative
- RS Stock No.:
- 135-4475
- Mfr. Part No.:
- RP3SL024
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Coil Voltage | 24V dc | |
| Product Type | Non-Latching Relay | |
| Contact Configuration | SPST | |
| Mount Type | PCB | |
| Series | MY4 | |
| Terminal Type | Solder | |
| Switching Current | 16A | |
| Switching AC Voltage | 250V ac | |
| Minimum Operating Temperature | -40°C | |
| Switching Power | 4kVA | |
| Coil Resistance | 1.1kΩ | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | RoHS | |
| Height | 25.5mm | |
| Width | 12.6mm | |
| Length | 29mm | |
| Contact Material | Silver Alloy | |
| Contact Resistance | 50mΩ | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Coil Voltage 24V dc | ||
Product Type Non-Latching Relay | ||
Contact Configuration SPST | ||
Mount Type PCB | ||
Series MY4 | ||
Terminal Type Solder | ||
Switching Current 16A | ||
Switching AC Voltage 250V ac | ||
Minimum Operating Temperature -40°C | ||
Switching Power 4kVA | ||
Coil Resistance 1.1kΩ | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals RoHS | ||
Height 25.5mm | ||
Width 12.6mm | ||
Length 29mm | ||
Contact Material Silver Alloy | ||
Contact Resistance 50mΩ | ||
RP3SL Series
120A, 20ms inrush capability
5mm pins
DIN rail mounting sockets available see stock no. 400-9130
Applications: lighting control, timers, motor control, home automation
Coil power: 500 mW
Operating temperature range: -40 to +70°C
Creepage & clearance: 8 mm
Isolation Coil to contact: 4000Vac
Switching voltage: 250Vac
H 25.5, W 29, D 12.6
Approvals
UL, CSA, VDE
