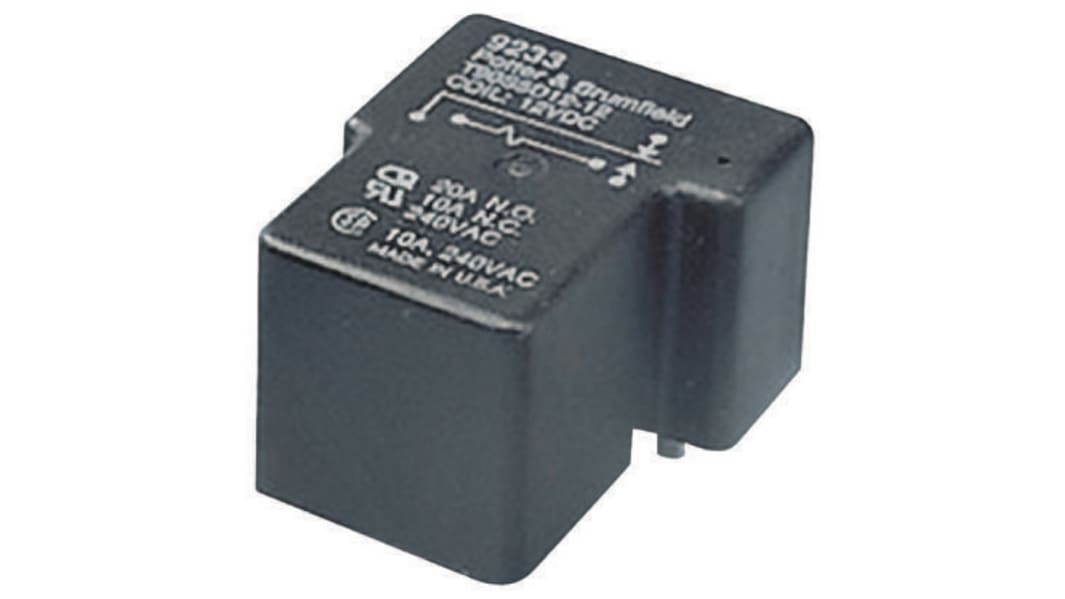

TE Connectivity PCB Mount Non-Latching Relay, 12V dc Coil, 30A Switching Current, SPST
- RS Stock No.:
- 745-5693
- Distrelec Article No.:
- 304-15-752
- Mfr. Part No.:
- 1-1419104-7
- Brand:
- TE Connectivity
Bulk discount available
Subtotal (1 unit)**
£4.19
(exc. VAT)
£5.03
(inc. VAT)
6 In stock - FREE next working day delivery available*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over £50.00
Check stock levels
Units | Per unit |
|---|---|
| 1 - 14 | £4.19 |
| 15 - 49 | £4.07 |
| 50 - 99 | £3.98 |
| 100 - 249 | £3.86 |
| 250 + | £3.77 |
**price indicative
- RS Stock No.:
- 745-5693
- Distrelec Article No.:
- 304-15-752
- Mfr. Part No.:
- 1-1419104-7
- Brand:
- TE Connectivity
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Coil Voltage | 12V dc | |
| Contact Configuration | SPST | |
| Mounting Type | PCB Mount | |
| Switching Current | 30A | |
| Number of Poles | 1 | |
| Terminal Type | Through Hole | |
| Maximum Switching Voltage AC | 277V | |
| Length | 27.43mm | |
| Coil Resistance | 144 Ω | |
| Coil Power | 1W | |
| Minimum Operating Temperature | -55°C | |
| Isolation Coil To Contact | 2.5kV rms | |
| Series | T9A | |
| Depth | 27.94mm | |
| Maximum Operating Temperature | +85°C | |
| Height | 32.51mm | |
| Contact Material | Silver Alloy | |
| Application | Power | |
Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Coil Voltage 12V dc | ||
Contact Configuration SPST | ||
Mounting Type PCB Mount | ||
Switching Current 30A | ||
Number of Poles 1 | ||
Terminal Type Through Hole | ||
Maximum Switching Voltage AC 277V | ||
Length 27.43mm | ||
Coil Resistance 144 Ω | ||
Coil Power 1W | ||
Minimum Operating Temperature -55°C | ||
Isolation Coil To Contact 2.5kV rms | ||
Series T9A | ||
Depth 27.94mm | ||
Maximum Operating Temperature +85°C | ||
Height 32.51mm | ||
Contact Material Silver Alloy | ||
Application Power | ||
