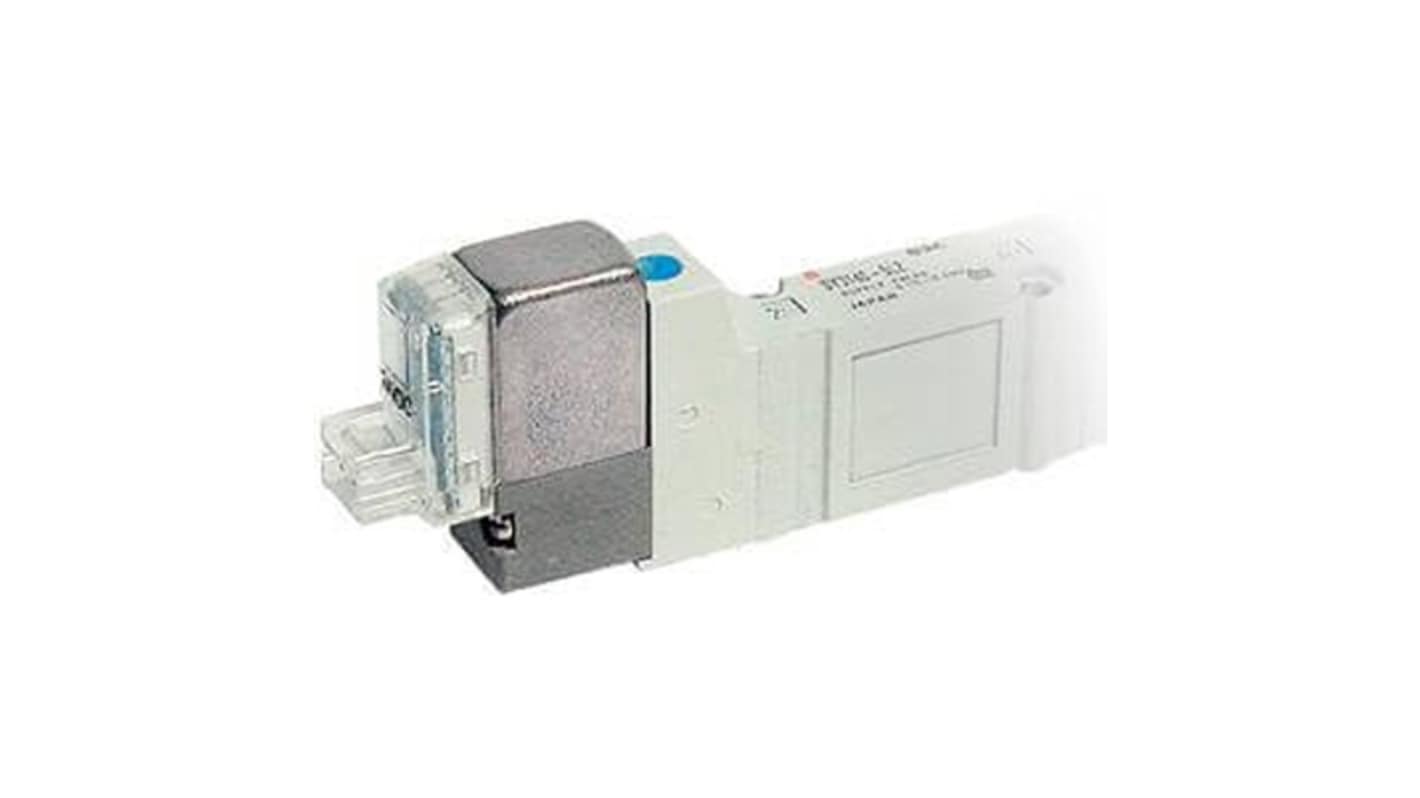

SMC Pneumatic Solenoid Valve - 3 Position Double Check Double Solenoid G 1/8 SY5000 Series 24V dc

Subtotal (1 unit)*

£79.73

(exc. VAT)

£95.68

(inc. VAT)

Add to Basket
Select or type quantity
Stocked by manufacturer
  • Ready to ship from 07 December 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£79.73

*price indicative

RS Stock No.:
363-158
Mfr. Part No.:
SY5220-5YZ-01F-Q
Brand:
SMC
Find similar products by selecting one or more attributes.
Select all

Brand

SMC

Product Type

Pneumatic Solenoid Valve

Port Size

1/8 in

Connection Thread Standard

G 1/8

Actuation Type

Double Solenoid

Seal Material

Rubber

Voltage

24V dc

Series

SY5000

Mount Type

DIN Rail

Number of Ports

5

Body Material

Aluminium

Maximum Operating Pressure

1 Mpa

Minimum Pilot Pressure

0.1MPa

Maximum Pilot Pressure

0.7MPa

Valve Function

3 Position Double Check

Minimum Operating Temperature

-10°C

Maximum Operating Temperature

50°C

Solenoid Power Consumption

0.5W

Hazardous Area Certification

No

Standards/Approvals

RoHS, CE

COO (Country of Origin):
JP
The SMC Solenoid valve designed for efficient pneumatic control in industrial systems. Its body-ported design ensures straightforward integration, while its durable construction supports reliable performance under challenging conditions. Compact and lightweight, it is well-suited for confined spaces and promotes energy efficiency for cost-effective operations.

2 position double actuation

Rated voltage of 24 VDC

DIN terminal with connector

with light and surge voltage suppressor

1 by 8 port size

CE Compliant
