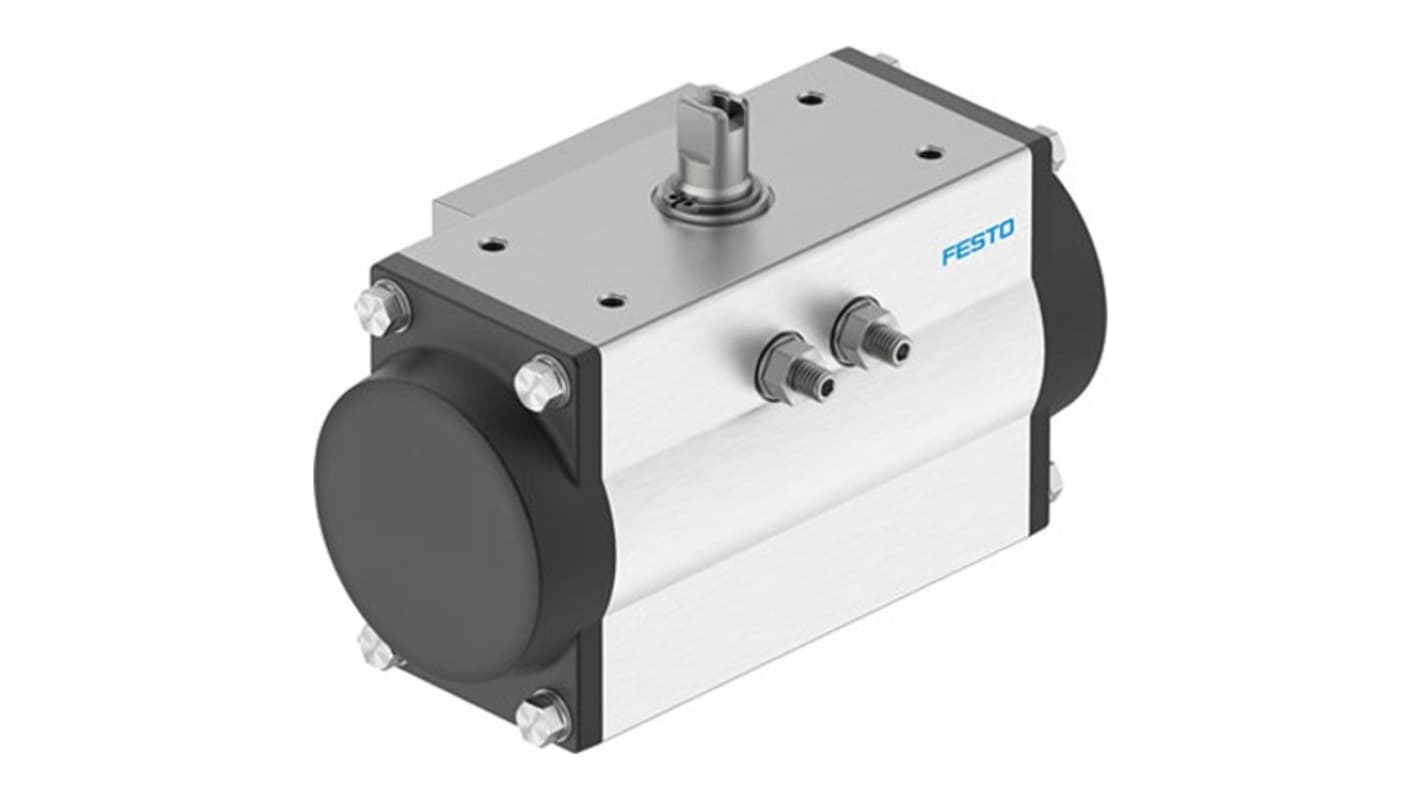

Festo DFPD Series 8 bar Single Acting Action Pneumatic Rotary Actuator, 20 mm Bore, 90 °

RS Stock No.:: 343-610
Mfr. Part No.:: DFPD-20-RP-90-RS45-F05-R3-C
Brand:: Festo

Festo DFPD Series 8 bar Single Acting Action Pneumatic Rotary Actuator, 20 mm Bore, 90 °

Subtotal (1 unit)*

£169.08

(exc. VAT)

£202.90

(inc. VAT)

FREE delivery for orders over £60.00

Stocked by manufacturer

Ready to ship from 05 June 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£169.08

*price indicative

RS Stock No.:: 343-610
Mfr. Part No.:: DFPD-20-RP-90-RS45-F05-R3-C
Brand:: Festo

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Festo
	Product Type	Pneumatic Rotary Actuator
	Action Type	Single Acting
	Bore Size	20mm
	Connection Thread Standard	G, ISO 5211
	Series	DFPD
	Maximum Operating Pressure	8 bar
	Angle of Rotation	90°
	Maximum Torque Rating	11Nm
	Minimum Operating Temperature	-20°C
	Maximum Operating Temperature	80°C
	Weight	1399g
	Standards/Approvals	EPL Db (GB), Zone 22 (ATEX), ISO 8573-1:2010 (7:4:4), Zone 2 (ATEX), ATEX category dust II 2D, ISO 13849, VDI/VDE 3845 (NAMUR), ISO 5211, ATEX category gas II 2G, IEC 61508 (SIL), Zone 1 (UKEX), VDI/VDE 3845 size AA 3, Ex h IIIC T105°C Db X, RoHS, Zone 21 (UKEX), Zone 21 (ATEX), German Technical Control Board (TÜV) Rheinland 968/V 1106.01/2023, EPL Gb (GB), VDMA24364-B1/B2-L, Zone 1 (ATEX), Ex h IIC T4 Gb X, DNV TAP00001CE, VDMA 66413
	Port Thread Size	1/8 in

	Select all
	Brand Festo
	Product Type Pneumatic Rotary Actuator
	Action Type Single Acting
	Bore Size 20mm
	Connection Thread Standard G, ISO 5211
	Series DFPD
	Maximum Operating Pressure 8 bar
	Angle of Rotation 90°
	Maximum Torque Rating 11Nm
	Minimum Operating Temperature -20°C
	Maximum Operating Temperature 80°C
	Weight 1399g
	Standards/Approvals EPL Db (GB), Zone 22 (ATEX), ISO 8573-1:2010 (7:4:4), Zone 2 (ATEX), ATEX category dust II 2D, ISO 13849, VDI/VDE 3845 (NAMUR), ISO 5211, ATEX category gas II 2G, IEC 61508 (SIL), Zone 1 (UKEX), VDI/VDE 3845 size AA 3, Ex h IIIC T105°C Db X, RoHS, Zone 21 (UKEX), Zone 21 (ATEX), German Technical Control Board (TÜV) Rheinland 968/V 1106.01/2023, EPL Gb (GB), VDMA24364-B1/B2-L, Zone 1 (ATEX), Ex h IIC T4 Gb X, DNV TAP00001CE, VDMA 66413
	Port Thread Size 1/8 in

Datasheet - DFPD-20-RP-90-RS45-F05-R3-C

The Festo Semi-rotary drive offers exceptional performance and reliability for industrial applications. Designed with a robust rack and pinion mechanism, it delivers precise control with a swivel angle of up to 90 degrees. The actuator's single-acting mode fosters efficient operation, while its compliance with international standards ensures compatibility across various systems. With integrated safety features certified to IEC 61508 and ISO 13849, it optimises operational safety while maintaining functionality even in hazardous environments. The device seamlessly integrates into existing setups and is resistant to different operating conditions, making it a versatile choice for demanding applications.

Compact design with a maximum swivel angle for versatile positioning

Durable materials increase longevity and reduce maintenance needs

Designed for easy installation with multiple mounting options

Complies with essential safety standards for peace of mind

Features a low air consumption rate, enhancing energy efficiency
