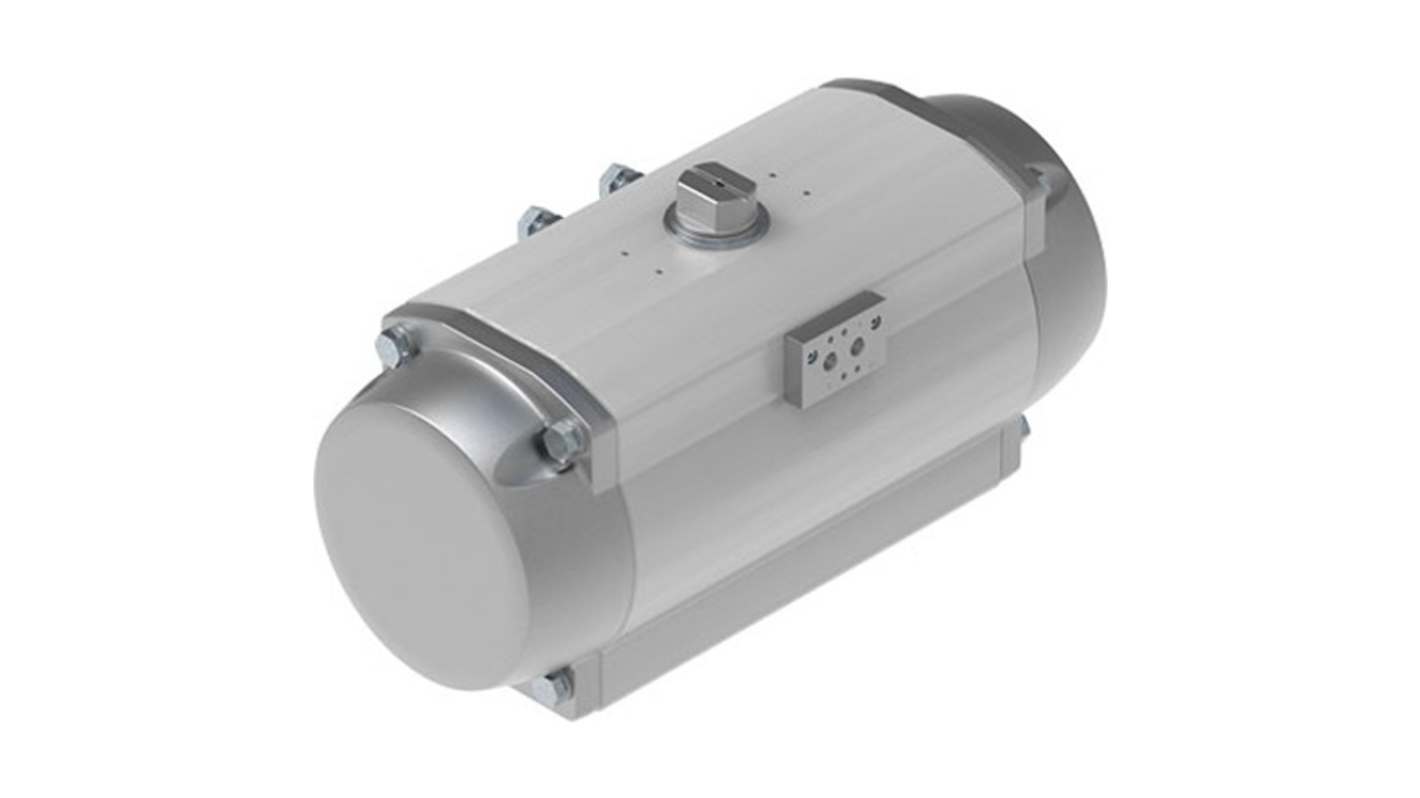

Festo DFPD Series 8 bar Single Acting Action Pneumatic Rotary Actuator, 1200 mm Bore, 90 °

RS Stock No.:: 343-604
Mfr. Part No.:: DFPD-1200-RP-90-RS60-F14
Brand:: Festo

Festo DFPD Series 8 bar Single Acting Action Pneumatic Rotary Actuator, 1200 mm Bore, 90 °

Subtotal (1 unit)*

£1,415.43

(exc. VAT)

£1,698.52

(inc. VAT)

FREE delivery for orders over £60.00

Stocked by manufacturer

Ready to ship from 18 May 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£1,415.43

*price indicative

Explore our Valves Range

When paired correctly, the actuator and valve work together to deliver smooth rotary motion for tasks such as positioning, clamping, or indexing. Choosing the right valve can significantly enhance the performance and responsiveness of your pneumatic system.

Shop Now

RS Stock No.:: 343-604
Mfr. Part No.:: DFPD-1200-RP-90-RS60-F14
Brand:: Festo

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Festo
	Product Type	Pneumatic Rotary Actuator
	Action Type	Single Acting
	Shaft Type	T36
	Bore Size	1200mm
	Connection Thread Standard	G
	Series	DFPD
	Maximum Operating Pressure	8 bar
	Sub Type	Actuator
	Maximum Torque Rating	796.3Nm
	Angle of Rotation	90°
	Minimum Operating Temperature	-20°C
	Maximum Operating Temperature	80°C
	Weight	43022g
	Standards/Approvals	Zone 2 (ATEX), EPL Db (GB), ATEX category gas II 2G, Zone 1 (ATEX), ISO 13849, Zone 21 (UKEX), EPL Gb (GB), Zone 21 (ATEX), Zone 22 (ATEX), VDMA 66413, German Technical Control Board (TÜV) Rheinland 968/V 1106.01/2023, IEC 61508 (SIL), VDI/VDE 3845 size AA 3, ISO 8573-1:2010 (7:4:4), Zone 1 (UKEX), VDI/VDE 3845 (NAMUR), ATEX category dust II 2D, DNV TAP00001CE, Ex h IIC T4 Gb X, VDMA24364-B1/B2-L, Ex h IIIC T105°C Db X, ISO 5211, RoHS
	Port Thread Size	1/4 in

	Select all
	Brand Festo
	Product Type Pneumatic Rotary Actuator
	Action Type Single Acting
	Shaft Type T36
	Bore Size 1200mm
	Connection Thread Standard G
	Series DFPD
	Maximum Operating Pressure 8 bar
	Sub Type Actuator
	Maximum Torque Rating 796.3Nm
	Angle of Rotation 90°
	Minimum Operating Temperature -20°C
	Maximum Operating Temperature 80°C
	Weight 43022g
	Standards/Approvals Zone 2 (ATEX), EPL Db (GB), ATEX category gas II 2G, Zone 1 (ATEX), ISO 13849, Zone 21 (UKEX), EPL Gb (GB), Zone 21 (ATEX), Zone 22 (ATEX), VDMA 66413, German Technical Control Board (TÜV) Rheinland 968/V 1106.01/2023, IEC 61508 (SIL), VDI/VDE 3845 size AA 3, ISO 8573-1:2010 (7:4:4), Zone 1 (UKEX), VDI/VDE 3845 (NAMUR), ATEX category dust II 2D, DNV TAP00001CE, Ex h IIC T4 Gb X, VDMA24364-B1/B2-L, Ex h IIIC T105°C Db X, ISO 5211, RoHS
	Port Thread Size 1/4 in

Festo DFPD Series Pneumatic Rotary Actuator, 90° Rotary Angle, 1200mm Bore - DFPD-1200-RP-90-RS60-F14, Numeric Part Number: 8065270

This pneumatic rotary actuator is designed for efficient control in automation applications. With a rotary angle of 90° and a bore size of 120 mm, it operates under maximum pressure limitations of 8 bar. The actuator features a robust structural design using a gear rack and pinion, ensuring reliable performance in demanding environments. Its standard G 1/4 port connection facilitates easy integration into various systems, making it a versatile choice for industrial use.

Features & Benefits

• Designed for a 90-degree swivel motion
• Configured with a single-acting mechanism
• Capable of generating high torque up to 796.3 Nm
• Equipped for connection to positioners as per VDI/VDE standards
• Suitable for diverse mounting positions
• Constructed with RoHS-compliant materials

Applications

• Used for controlling valves in automation systems
• Designed for precise movement in robotic
• Employed in safety-critical environments requiring fail-safe functions
• Implemented in industries needing robust torque performance

What is the nominal operating pressure for effective use?

The effective nominal operating pressure ranges from 0.6 MPa to 6 bar, ensuring consistent performance for operational tasks.

How does this actuator ensure safety in automation applications?

Its safety function enables the drive to switch to a predetermined position when compressed Air is turned off or when the spring chamber is exhausted.

Can you specify the environmental conditions this actuator can withstand?

The actuator operates in ambient temperatures ranging from -20°C to +80°C, making it suitable for a variety of conditions.

What type of materials are used in its construction?

Key materials include anodised aluminium for the housing, high-alloy stainless steel screws, and NBR seals, ensuring durability and compliance with safety standards.

How does the torque performance vary at different angles?

At a 0° swivel angle, the torque is 796.3 Nm, while at 90°, it is 477.2 Nm, allowing for flexible applications based on operational requirements.
