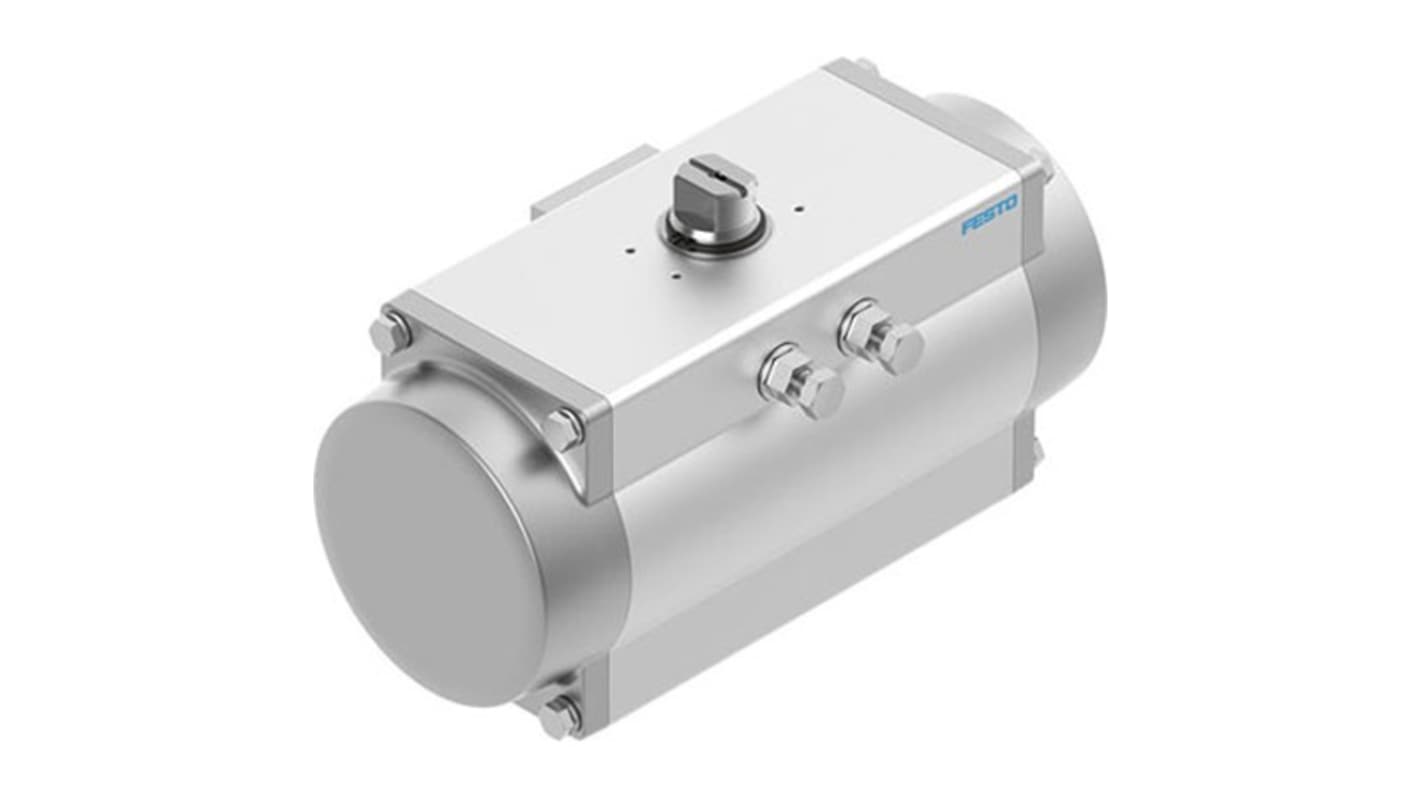

Festo DFPD Series 8 bar Single Acting Action Pneumatic Rotary Actuator, 700 mm Bore, 90 °

RS Stock No.:: 343-620
Mfr. Part No.:: DFPD-700-RP-90-RS60-F1012
Brand:: Festo

Festo DFPD Series 8 bar Single Acting Action Pneumatic Rotary Actuator, 700 mm Bore, 90 °

Subtotal (1 unit)*

£903.27

(exc. VAT)

£1,083.92

(inc. VAT)

FREE delivery for orders over £60.00

Stocked by manufacturer

Ready to ship from 12 May 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£903.27

*price indicative

RS Stock No.:: 343-620
Mfr. Part No.:: DFPD-700-RP-90-RS60-F1012
Brand:: Festo

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Festo
	Product Type	Pneumatic Rotary Actuator
	Action Type	Single Acting
	Bore Size	700mm
	Connection Thread Standard	ISO 5211, G
	Series	DFPD
	Maximum Operating Pressure	8 bar
	Minimum Operating Temperature	-20°C
	Maximum Torque Rating	465.5Nm
	Angle of Rotation	90°
	Maximum Operating Temperature	80°C
	Weight	26268g
	Standards/Approvals	Zone 1 (ATEX), ISO 8573-1:2010 (7:4:4), Zone 2 (ATEX), Zone 22 (ATEX), VDI/VDE 3845 (NAMUR), Ex h IIC T4 Gb X, Ex h IIIC T105°C Db X, EPL Db (GB), VDMA24364-B1/B2-L, EPL Gb (GB), VDMA 66413, ATEX category gas II 2G, IEC 61508 (SIL), ATEX category dust II 2D, RoHS, Zone 21 (ATEX), Zone 1 (UKEX), Zone 21 (UKEX), ISO 5211, DNV TAP00001CE, ISO 13849, German Technical Control Board (TÜV) Rheinland 968/V 1106.01/2023, VDI/VDE 3845 size AA 3
	Port Thread Size	1/4 in

	Select all
	Brand Festo
	Product Type Pneumatic Rotary Actuator
	Action Type Single Acting
	Bore Size 700mm
	Connection Thread Standard ISO 5211, G
	Series DFPD
	Maximum Operating Pressure 8 bar
	Minimum Operating Temperature -20°C
	Maximum Torque Rating 465.5Nm
	Angle of Rotation 90°
	Maximum Operating Temperature 80°C
	Weight 26268g
	Standards/Approvals Zone 1 (ATEX), ISO 8573-1:2010 (7:4:4), Zone 2 (ATEX), Zone 22 (ATEX), VDI/VDE 3845 (NAMUR), Ex h IIC T4 Gb X, Ex h IIIC T105°C Db X, EPL Db (GB), VDMA24364-B1/B2-L, EPL Gb (GB), VDMA 66413, ATEX category gas II 2G, IEC 61508 (SIL), ATEX category dust II 2D, RoHS, Zone 21 (ATEX), Zone 1 (UKEX), Zone 21 (UKEX), ISO 5211, DNV TAP00001CE, ISO 13849, German Technical Control Board (TÜV) Rheinland 968/V 1106.01/2023, VDI/VDE 3845 size AA 3
	Port Thread Size 1/4 in

COO (Country of Origin):: IT

The Festo Semi-rotary drive exemplifies precision and reliability in automation. Designed for versatility, it integrates seamlessly into a variety of applications, providing consistent performance even in demanding environments. The compact design brings both power and efficiency, making it an essential component for professionals seeking to enhance their operations. Engineered to meet global standards, this actuator not only ensures optimal performance but also aligns with stringent safety regulations. It stands out with its robust construction, ideal for environments with rigorous safety and operational demands.

Easy adaptation to standard ISO 5211 fittings

Lightweight construction simplifies integration and reduces installation time

Certified for safety, offering peace of mind in critical applications

High torque capability meets demanding operational requirements
