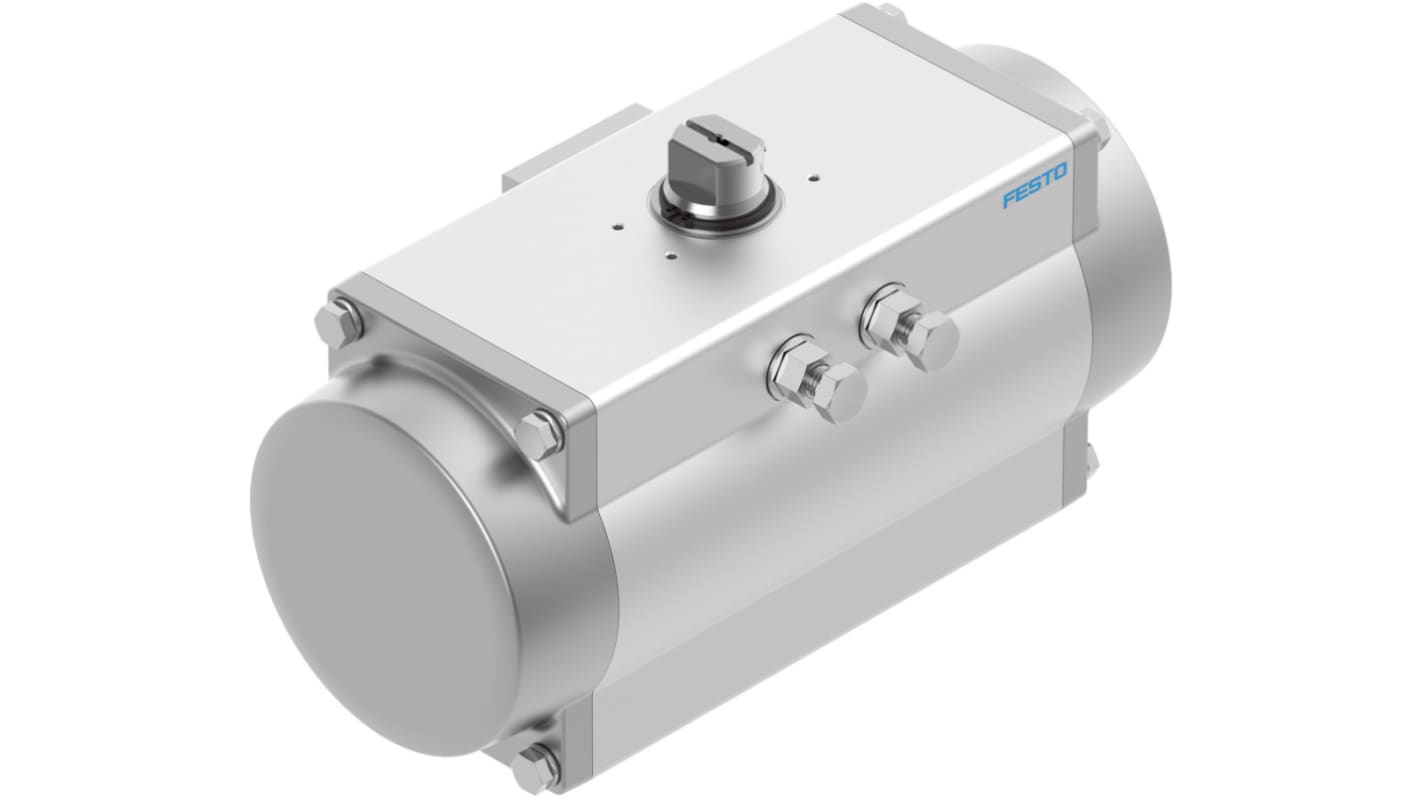

Festo DFPD Series 8 bar Double Action Rotary Actuator, 90 Rotary Angle, 700mm Bore
- RS Stock No.:
- 280-8214
- Mfr. Part No.:
- DFPD-700-RP-90-RD-F1012
- Brand:
- Festo
Subtotal (1 unit)*
£725.99
(exc. VAT)
£871.19
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 20 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £725.99 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 280-8214
- Mfr. Part No.:
- DFPD-700-RP-90-RD-F1012
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Rotary Angle | 90 | |
Action | Double | |
Bore | 700mm | |
Manufacturer Series | DFPD | |
Maximum Operating Pressure | 8 bar | |
Absolute Maximum Pressure | 24bar | |
Cushioning Type | Not Cushioned | |
Port Connection | G 1/4 | |
Weight | 22.5kg | |
Better World Claim | Repairable by the end user | |
Better World Product | Yes | |
Size Type | Standard | |
Series | DFPD | |
Model Number | 8065261 | |
Select all | ||
---|---|---|
Brand Festo | ||
Rotary Angle 90 | ||
Action Double | ||
Bore 700mm | ||
Manufacturer Series DFPD | ||
Maximum Operating Pressure 8 bar | ||
Absolute Maximum Pressure 24bar | ||
Cushioning Type Not Cushioned | ||
Port Connection G 1/4 | ||
Weight 22.5kg | ||
Better World Claim Repairable by the end user | ||
Better World Product Yes | ||
Size Type Standard | ||
Series DFPD | ||
Model Number 8065261 | ||
- COO (Country of Origin):
- IT
Festo DFPD Series Rotary Actuator, 90 Rotary Angle, 700mm Bore - DFPD-700-RP-90-RD-F1012, Numeric Part Number: 8065261
This rotary actuator is a high-performance pneumatic actuator designed for industrial automation applications. It features a substantial bore size of 700mm and a swivel angle of 90 degrees, providing robust and precise motion control. The actuator operates with a double-action mechanism, making it suitable for applications requiring reliable and efficient operation.
Features & Benefits
• Operates at a maximum pressure of 8 bar for reliable performance
• Adjustable end-position feature enhances operational flexibility
• Rack and pinion design ensures smooth and accurate movement
• Designed for lubricated operation, enhancing durability and lifespan
• Low corrosion resistance class, suited for various environments
• Adjustable end-position feature enhances operational flexibility
• Rack and pinion design ensures smooth and accurate movement
• Designed for lubricated operation, enhancing durability and lifespan
• Low corrosion resistance class, suited for various environments
Applications
• Ideal for industrial automation systems requiring precise actuator motion
• Utilised in valve control to manage flow in pipelines
• Suitable for use in hazardous environments classified under ATEX standards
• Compatible with positioners and sensors following VDI/VDE standards
• Effective in systems needing high-pressure actuation for performance
• Utilised in valve control to manage flow in pipelines
• Suitable for use in hazardous environments classified under ATEX standards
• Compatible with positioners and sensors following VDI/VDE standards
• Effective in systems needing high-pressure actuation for performance
What is the torque capacity at nominal operating pressure?
It achieves a torque of 663.3 Nm at both the 0° and 90° swivel angles, facilitating strong and reliable performance for heavy-duty applications.
How does the actuator perform in terms of safety compliance?
The product has certified safety functions according to ISO 13849 and IEC 61508, enabling it to be used in safety-related applications up to Safety Integrity Level (SIL) 2.
Can this actuator function in extreme temperatures?
Yes, it operates effectively in ambient conditions ranging from -20°C to +80°C, making it versatile for various operational environments.
