Festo DFPD Series 8 bar Double Action Pneumatic Rotary Actuator, 90° Rotary Angle, 1200mm Bore
- RS Stock No.:
- 281-1706
- Mfr. Part No.:
- DFPD-1200-RP-90-RD-F14
- Brand:
- Festo
Subtotal (1 unit)*
£1,137.63
(exc. VAT)
£1,365.16
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 21 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £1,137.63 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 281-1706
- Mfr. Part No.:
- DFPD-1200-RP-90-RD-F14
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Rotary Angle | 90° | |
Action | Double | |
Bore | 1200mm | |
Manufacturer Series | DFPD | |
Maximum Operating Pressure | 8 bar | |
Absolute Maximum Pressure | 24bar | |
Cushioning Type | Not Cushioned | |
Port Connection | G 1/4 | |
Weight | 35.8kg | |
Better World Product | Yes | |
Better World Claim | Repairable by the end user | |
Model Number | 8065269 | |
Size Type | Standard | |
Series | DFPD | |
Select all | ||
---|---|---|
Brand Festo | ||
Rotary Angle 90° | ||
Action Double | ||
Bore 1200mm | ||
Manufacturer Series DFPD | ||
Maximum Operating Pressure 8 bar | ||
Absolute Maximum Pressure 24bar | ||
Cushioning Type Not Cushioned | ||
Port Connection G 1/4 | ||
Weight 35.8kg | ||
Better World Product Yes | ||
Better World Claim Repairable by the end user | ||
Model Number 8065269 | ||
Size Type Standard | ||
Series DFPD | ||
- COO (Country of Origin):
- IT

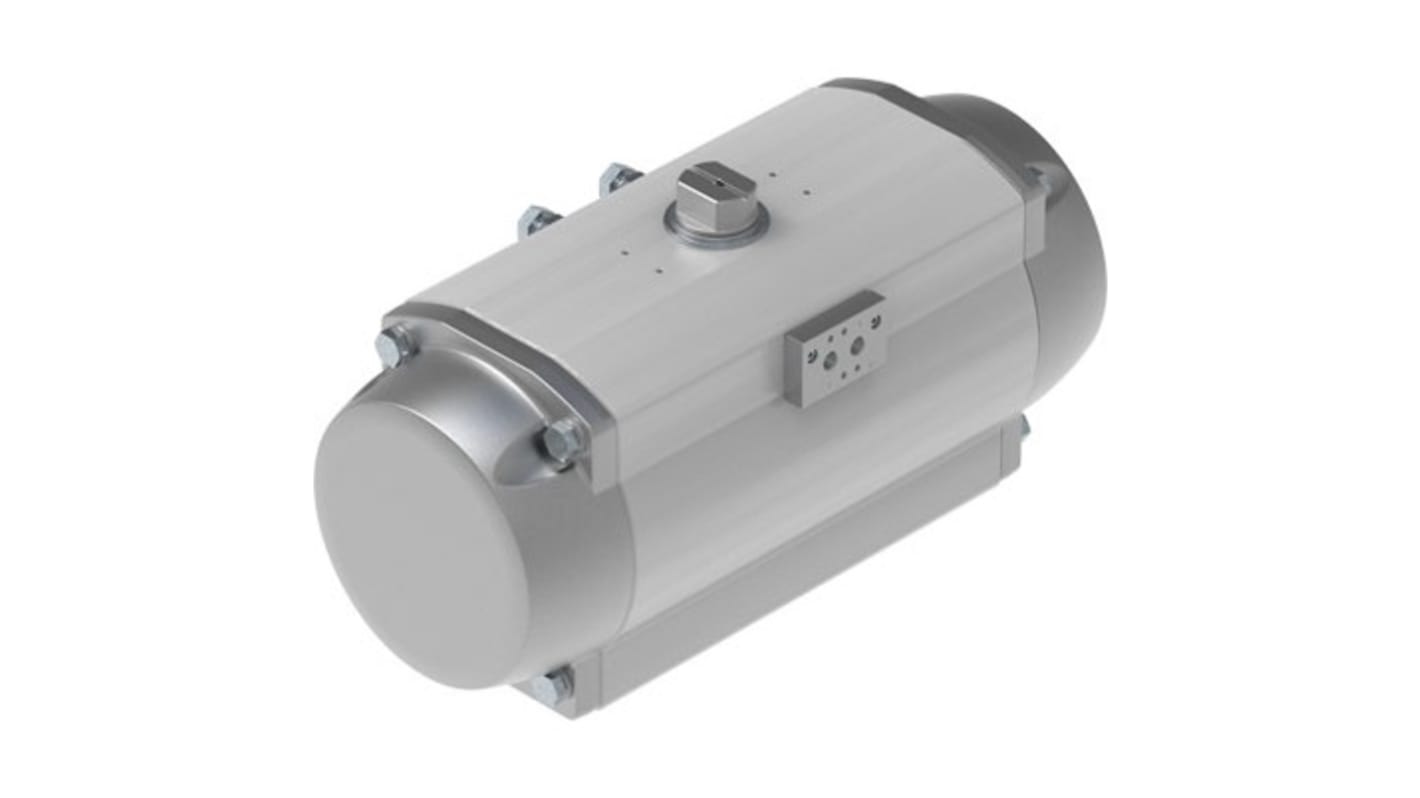

Festo DFPD Series Pneumatic Rotary Actuator, 90° Rotary Angle, 1200mm Bore - DFPD-1200-RP-90-RD-F14, Numeric Part Number: 8065269
This pneumatic rotary actuator is an advanced solution designed for seamless rotational motion control in various automation applications. With a substantial bore size of 1200mm and a versatile 90° rotary angle, it facilitates robust performance in demanding environments. This standard size pneumatic actuator operates effectively at a maximum pressure of 8 bar, ensuring efficient output and reliability.
Features & Benefits
• Double-acting action allows for consistent and powerful movement
• Large bore size supports substantial load handling capabilities
• G 1/4 port connection for easy integration with existing systems
• Durable construction ensures longevity in industrial settings
• Large bore size supports substantial load handling capabilities
• G 1/4 port connection for easy integration with existing systems
• Durable construction ensures longevity in industrial settings
Applications
• Utilised for precise control in robotic arms
• Ideal for positioning mechanisms in automated assembly lines
• Used in process control for machinery requiring rotational movement
• Perfect for requiring quick response in pneumatic systems
• Ideal for positioning mechanisms in automated assembly lines
• Used in process control for machinery requiring rotational movement
• Perfect for requiring quick response in pneumatic systems
What is the maximum pressure this actuator can handle?
It operates effectively at a maximum pressure of 8 bar, but can withstand an absolute maximum pressure of 24 bar, providing versatility in high-pressure settings.
How does the design influence the actuator's performance in automation?
The non-cushioned structure allows for immediate movement response, enhancing operational speed and efficiency, critical for time-sensitive applications.
What benefits does the bore size offer for applications?
The 1200mm bore size enables the actuator to manage larger loads, making it suitable for heavy-duty applications while maintaining precise control.
What advantages does the double-acting feature provide?
The double-acting mechanism ensures that the actuator operates efficiently in both directions, facilitating more dynamic applications without the need for external force on one side.
How can this actuator be integrated into existing systems?
The G 1/4 port connection is standardised, allowing for straightforward integration into established pneumatic setups, simplifying installation with minimal adjustments required.
