RS PRO Pneumatic Piston Rod Cylinder - 32mm Bore, 10mm Stroke, Double Acting

View this category

Subtotal (1 unit)*

£75.93

(exc. VAT)

£91.12

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 2 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£75.93

*price indicative

RS Stock No.:
360-734
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Stroke

10mm

Action

Double

Bore

32mm

Port Connection

G 1/8

Pneumatic Connection

G 1/8

Piston Rod Thread Gender

Female

Cushioning Type

Elastomer

Dimensions

61 x 49 x 49mm

Length

61mm

Width

49mm

Height

49mm

Maximum Operating Pressure

10bar

Absolute Maximum Pressure

12bar

ISO Standard

ISO 21287

Minimum Operating Temperature

-20°C

Weight

480g

Maximum Operating Temperature

80°C

COO (Country of Origin):
PL

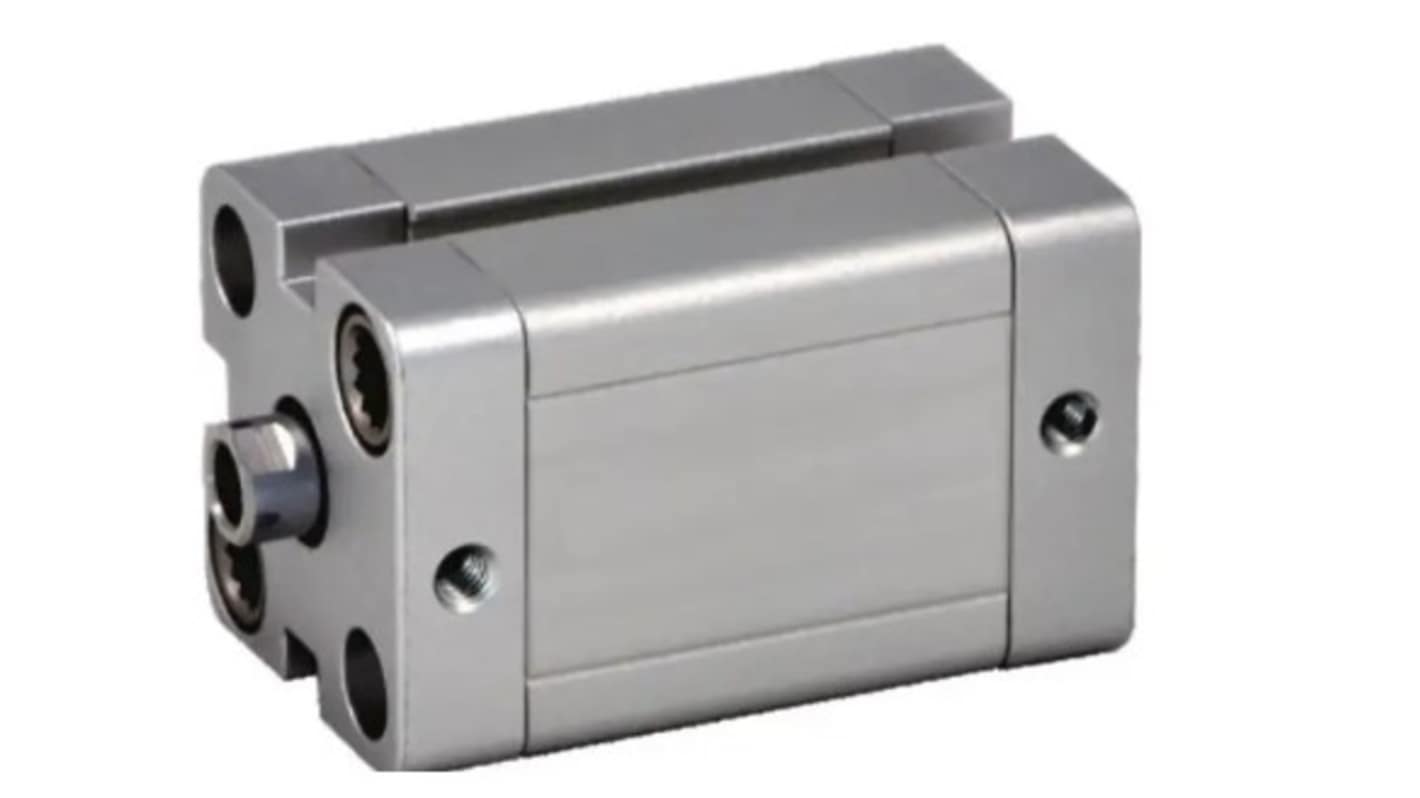

RS PRO Pneumatic Piston Rod Cylinder, Compact Design, ISO 21287


The RS PRO Pneumatic Piston Rod Cylinder offers compact and efficient solutions for industrial applications. These cylinders are ideal for environments with limited space, providing reliable and high-performance solutions. They ensure uniformity and easy integration into systems. Featuring an aluminium profile tube with sensor slots on three sides, they allow for convenient sensor installation and flexibility in various applications.

Features and Benefits


ISO 21287 Standard: Ensures compatibility and easy integration with existing systems
Working Temperature Range -20 °C to +80 °C: Suitable for a wide range of environmental conditions
Working Pressure Range 1 to 10 bar: Provides flexibility for various pneumatic applications
Male and Female Thread on Piston Rod: Offers versatility in connection options
Compact Design: Ideal for applications with limited space
Aluminium Profile Tube with Sensor Slots: Allows for convenient sensor installation and adaptability

Applications


Automation systems
Manufacturing equipment
Material handling
Packaging machinery

Additional Information


In accordance with ISO21287 standard
Working temperature is from -10 °C to +80 °C
Working pressure range is from 1 to 10 bar
With male and female thread on piston rod

In accordance with ISO 21287 standard
Port Connection: G 1/8 Female
Cushioning Type: Elastomer
Dimensions: 61 x 49 x 49 mm
Weight: 480 g

Why RS PRO?


RS PRO is the own brand of RS, offering professional quality products and solutions across all industries and technologies. Our product range is rigorously tested, inspected, and audited against demanding international standards to provide you with industrial-grade quality, at the right price. Making RS PRO your smart choice.
