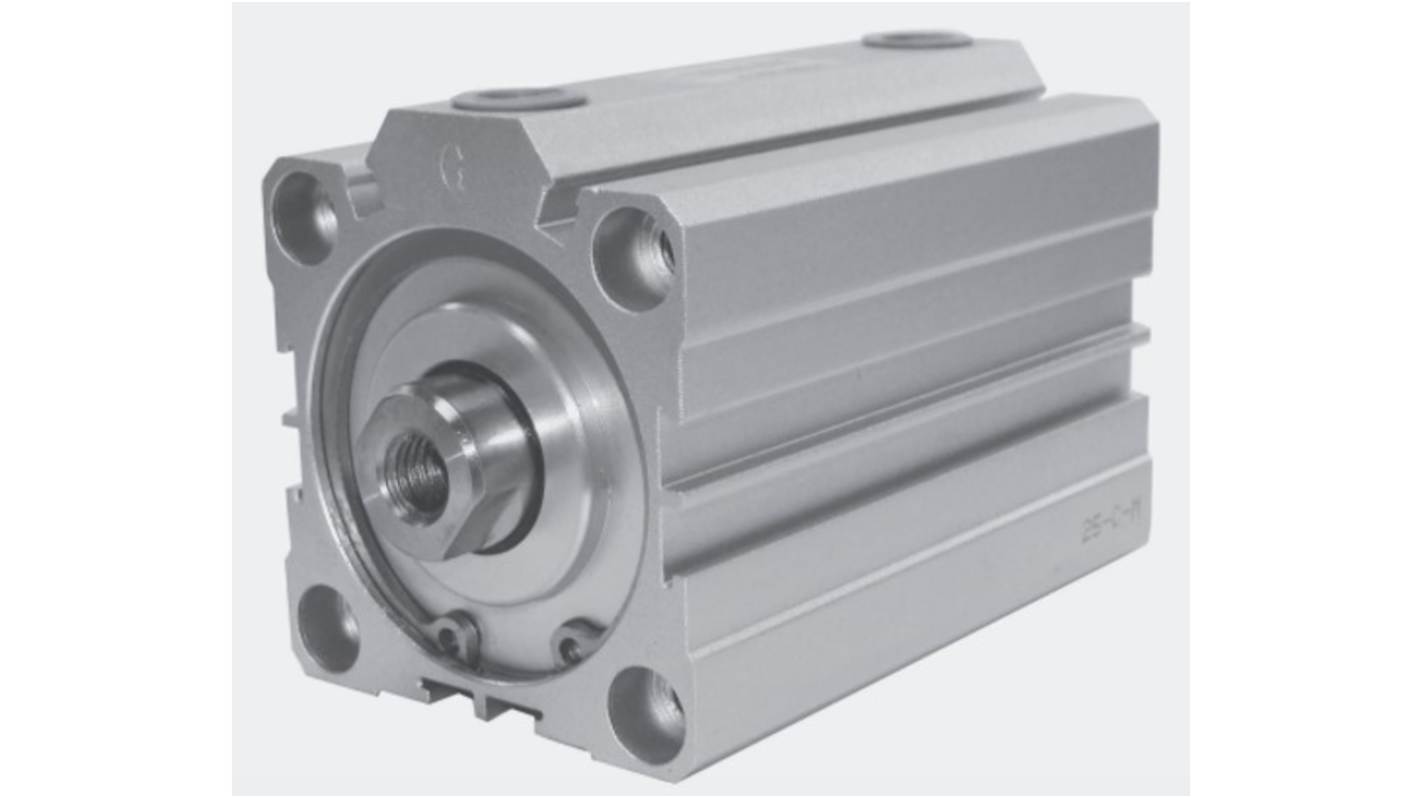

RS PRO Pneumatic Piston Rod Cylinder - 32mm Bore, 30mm Stroke, Double Acting
- RS Stock No.:
- 360-714
- Brand:
- RS PRO
Subtotal (1 unit)*
£52.18
(exc. VAT)
£62.62
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 3 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £52.18 |
*price indicative
- RS Stock No.:
- 360-714
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Stroke | 30mm | |
Bore | 32mm | |
Action | Double | |
Pneumatic Connection | G 1/8 | |
Port Connection | G 1/8 | |
Piston Rod Thread Gender | Female | |
Cushioning Type | Elastomer | |
Dimensions | 70 x 45 x 45mm | |
Width | 45mm | |
Length | 70mm | |
Height | 45mm | |
Absolute Maximum Pressure | 15bar | |
Maximum Operating Pressure | 10bar | |
Weight | 610g | |
Minimum Operating Temperature | -20°C | |
Maximum Operating Temperature | 70°C | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Stroke 30mm | ||
Bore 32mm | ||
Action Double | ||
Pneumatic Connection G 1/8 | ||
Port Connection G 1/8 | ||
Piston Rod Thread Gender Female | ||
Cushioning Type Elastomer | ||
Dimensions 70 x 45 x 45mm | ||
Width 45mm | ||
Length 70mm | ||
Height 45mm | ||
Absolute Maximum Pressure 15bar | ||
Maximum Operating Pressure 10bar | ||
Weight 610g | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 70°C | ||
- COO (Country of Origin):
- PL
RS PRO Pneumatic Piston Rod Cylinder, 32 mm Bore, 30 mm Stroke
The RS PRO Pneumatic Piston Rod Cylinder is designed for efficient and reliable performance in various industrial applications. This cylinder adheres to the JIS standard, ensuring high-quality operation. Its compact design saves valuable installation space, making it ideal for environments where space is at a premium. The cylinder's robust construction provides excellent abrasion resistance and durability, enhancing its lifespan and reducing maintenance needs.
Features and Benefits
Compact structure: Saves installation space, ideal for tight environments
Working pressure 1 to 10 bar: Suitable for a wide range of pneumatic applications
Working temperature is from -20 °C to +70 °C: Operates effectively in diverse temperature conditions
Rolling and hard anodizing treatment: Provides excellent abrasion resistance and durability
Integrated magnetic switch slots: Facilitates easy installation of sensors for enhanced functionality
Working pressure 1 to 10 bar: Suitable for a wide range of pneumatic applications
Working temperature is from -20 °C to +70 °C: Operates effectively in diverse temperature conditions
Rolling and hard anodizing treatment: Provides excellent abrasion resistance and durability
Integrated magnetic switch slots: Facilitates easy installation of sensors for enhanced functionality
Applications
Automation systems
Manufacturing equipment
Material handling
Packaging machinery
Manufacturing equipment
Material handling
Packaging machinery
Additional Information
Compact structure
Working pressure 1 to 10 bar
Working temperature is from -20 °C to +70 °C
Working pressure 1 to 10 bar
Working temperature is from -20 °C to +70 °C
Key standards: JIS standard compliance ensures high-quality performance
Port connection: G 1/8 Female for easy integration into existing systems
Cushioning type: Elastomer for smooth operation and reduced wear
Port connection: G 1/8 Female for easy integration into existing systems
Cushioning type: Elastomer for smooth operation and reduced wear
Why RS PRO?
RS PRO is the own brand of RS, offering professional quality products and solutions across all industries and technologies. Our product range is rigorously tested, inspected, and audited against demanding international standards to provide you with industrial-grade quality, at the right price. Making RS PRO your smart choice.
