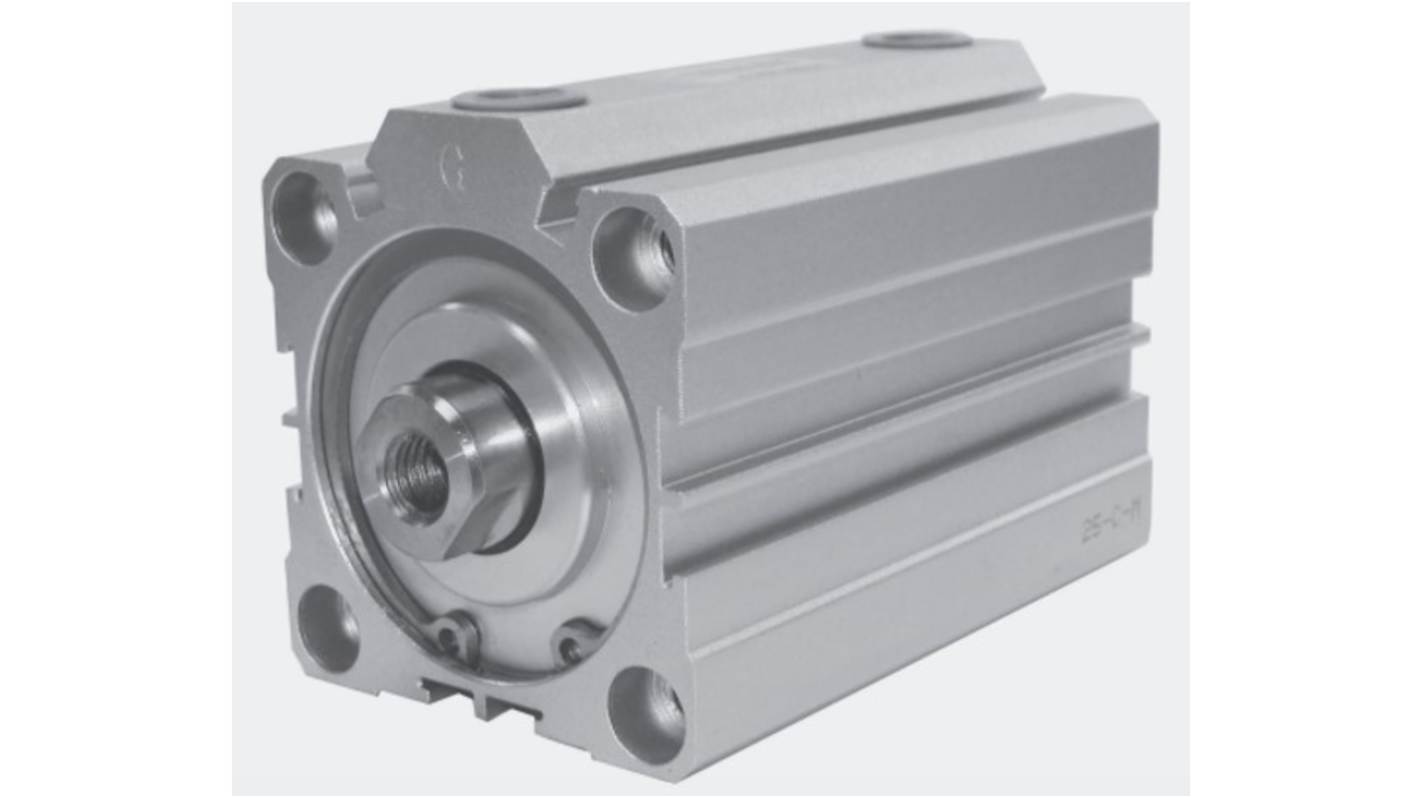

RS PRO Pneumatic Piston Rod Cylinder - 25mm Bore, 10mm Stroke, Double Acting
- RS Stock No.:
- 360-711
- Brand:
- RS PRO
Subtotal (1 unit)*
£30.44
(exc. VAT)
£36.53
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 2 unit(s) shipping from 27 October 2025
- Plus 10 unit(s) shipping from 17 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £30.44 |
*price indicative
- RS Stock No.:
- 360-711
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Stroke | 10mm | |
| Action | Double | |
| Bore | 25mm | |
| Port Connection | M5 | |
| Pneumatic Connection | M5 | |
| Piston Rod Thread Gender | Female | |
| Cushioning Type | Elastomer | |
| Dimensions | 37.5 x 40 x 40mm | |
| Height | 40mm | |
| Width | 40mm | |
| Length | 37.5mm | |
| Maximum Operating Pressure | 10bar | |
| Absolute Maximum Pressure | 15bar | |
| Weight | 114g | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 80°C | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Stroke 10mm | ||
Action Double | ||
Bore 25mm | ||
Port Connection M5 | ||
Pneumatic Connection M5 | ||
Piston Rod Thread Gender Female | ||
Cushioning Type Elastomer | ||
Dimensions 37.5 x 40 x 40mm | ||
Height 40mm | ||
Width 40mm | ||
Length 37.5mm | ||
Maximum Operating Pressure 10bar | ||
Absolute Maximum Pressure 15bar | ||
Weight 114g | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 80°C | ||
- COO (Country of Origin):
- PL
RS PRO Pneumatic Piston Rod Cylinder, 10 mm Stroke, 25 mm Bore
The RS PRO Pneumatic Piston Rod Cylinder is designed for efficient and reliable performance in various industrial applications. This cylinder adheres to the JIS standard, ensuring high-quality operation. Its compact design saves installation space, while the durable construction provides excellent abrasion resistance.
Features and Benefits
Compact structure: Saves installation space, making it ideal for tight environments
Working pressure 1 to 10 bar: Suitable for a wide range of pneumatic applications
Working temperature is from -20 °C to +80 °C: Ensures reliable operation in diverse environmental conditions
Internal diameter treated with rolling and hard anodizing: Provides excellent abrasion resistance and durability
Magnetic switch slots integrated: Facilitates easy installation of sensors for enhanced functionality
Working pressure 1 to 10 bar: Suitable for a wide range of pneumatic applications
Working temperature is from -20 °C to +80 °C: Ensures reliable operation in diverse environmental conditions
Internal diameter treated with rolling and hard anodizing: Provides excellent abrasion resistance and durability
Magnetic switch slots integrated: Facilitates easy installation of sensors for enhanced functionality
Applications
Automation systems
Manufacturing equipment
Material handling
Packaging machinery
Manufacturing equipment
Material handling
Packaging machinery
Additional Information
Compact structure
Working pressure 1 to 10 bar
Working temperature is from -20 °C to +70 °C
Working pressure 1 to 10 bar
Working temperature is from -20 °C to +70 °C
Key standards: JIS standard compliance for quality assurance
Cushioning type: Elastomer cushioning for smooth operation
Port connection: M5 Female for secure and reliable connections
Action: Double action for efficient performance
Cushioning type: Elastomer cushioning for smooth operation
Port connection: M5 Female for secure and reliable connections
Action: Double action for efficient performance
