RS PRO Pneumatic Piston Rod Cylinder - 25mm Bore, 50mm Stroke, Double Acting
- RS Stock No.:
- 360-792
- Brand:
- RS PRO
Subtotal (1 unit)*
£62.49
(exc. VAT)
£74.99
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 5 unit(s) ready to ship from another location
- Plus 999,999,994 unit(s) shipping from 31 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £62.49 |
*price indicative
- RS Stock No.:
- 360-792
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Bore | 25mm | |
Action | Double | |
Stroke | 50mm | |
Pneumatic Connection | G 1/8 | |
Port Connection | G 1/8 | |
Piston Rod Thread Gender | Male | |
Cushioning Type | Elastomer | |
Dimensions | 190 x 30mm | |
Length | 190mm | |
Diameter | 30mm | |
Maximum Operating Pressure | 10bar | |
Absolute Maximum Pressure | 12bar | |
ISO Standard | ISO 6432 | |
Minimum Operating Temperature | -10°C | |
Maximum Operating Temperature | 80°C | |
Weight | 315g | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Bore 25mm | ||
Action Double | ||
Stroke 50mm | ||
Pneumatic Connection G 1/8 | ||
Port Connection G 1/8 | ||
Piston Rod Thread Gender Male | ||
Cushioning Type Elastomer | ||
Dimensions 190 x 30mm | ||
Length 190mm | ||
Diameter 30mm | ||
Maximum Operating Pressure 10bar | ||
Absolute Maximum Pressure 12bar | ||
ISO Standard ISO 6432 | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature 80°C | ||
Weight 315g | ||
- COO (Country of Origin):
- PL

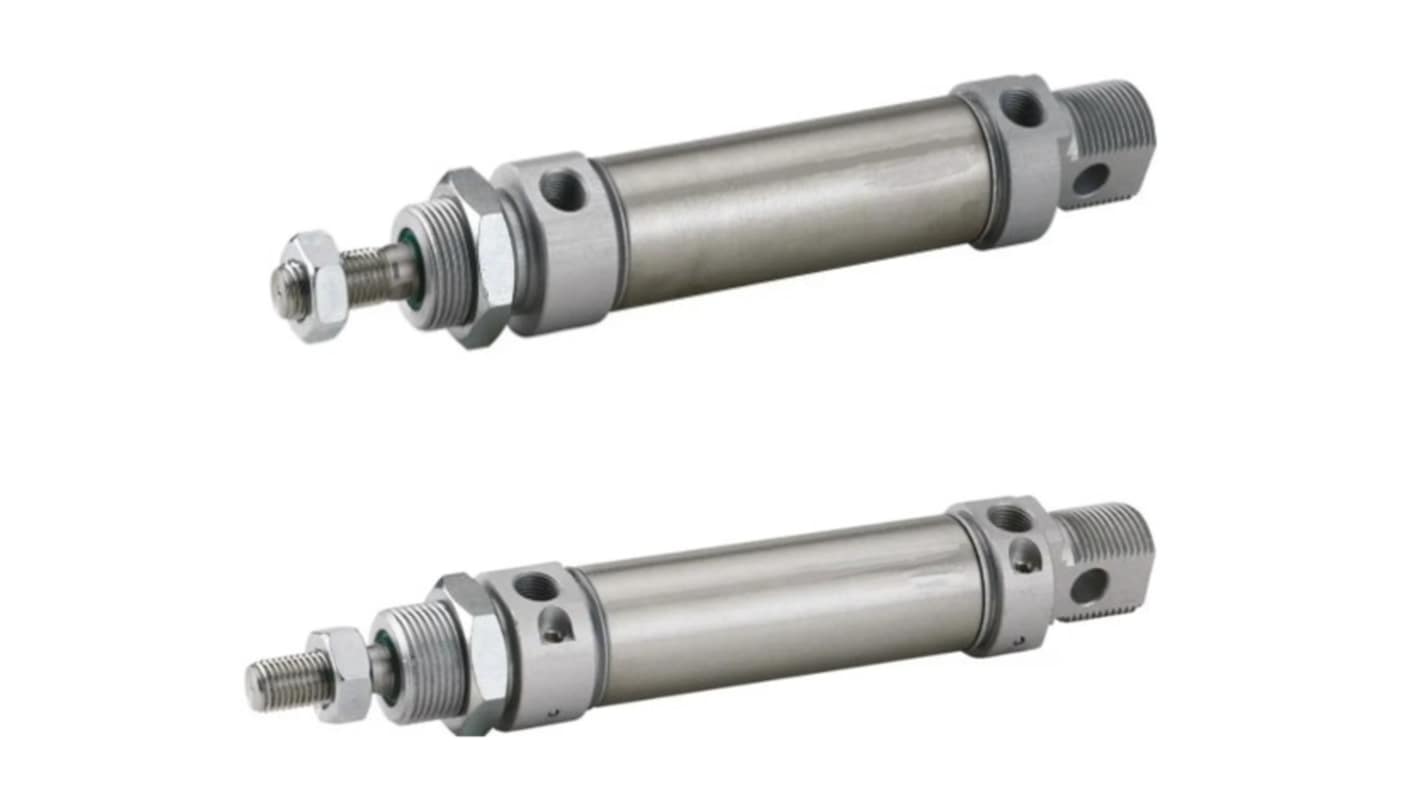

RS PRO Pneumatic Piston Rod Cylinder, ISO6432, D25x50
The RS PRO Pneumatic Piston Rod Cylinder offers compact and efficient solutions for industrial applications. Complying with international standards, these cylinders deliver reliable performance even in tight spaces. Despite their compact size, they provide significant power, making them ideal for applications that require both precision and force in confined industrial environments.
Features and Benefits
Accordance with ISO6432 standard: Ensures compatibility and reliability across various systems
Working pressure 1 to 10 bar: Suitable for a wide range of pneumatic applications
Working temperature is from -10 °C to +80 °C: Operates effectively in diverse environmental conditions
Compact dimensions (190 x 30 mm): Fits easily into tight spaces without compromising performance
Double action: Provides efficient operation with both push and pull capabilities
Mechanical cushioning: Reduces wear and tear, extending the cylinder's lifespan
Working pressure 1 to 10 bar: Suitable for a wide range of pneumatic applications
Working temperature is from -10 °C to +80 °C: Operates effectively in diverse environmental conditions
Compact dimensions (190 x 30 mm): Fits easily into tight spaces without compromising performance
Double action: Provides efficient operation with both push and pull capabilities
Mechanical cushioning: Reduces wear and tear, extending the cylinder's lifespan
Applications
Automation systems
Manufacturing equipment
Robotics
Material handling
Manufacturing equipment
Robotics
Material handling
Additional Information
Accordance with ISO6432 standard
Working pressure 1 to 10 bar
Working temperature is from -10 °C to +80 °C
Working pressure 1 to 10 bar
Working temperature is from -10 °C to +80 °C
Port Connection: G 1/8 Male
Cushioning Type: Elastomer
Weight: 315 g
Stroke: 50 mm
Bore: 25 mm
Cushioning Type: Elastomer
Weight: 315 g
Stroke: 50 mm
Bore: 25 mm
Why RS PRO?
RS PRO is the own brand of RS, offering professional quality products and solutions across all industries and technologies. Our product range is rigorously tested, inspected, and audited against demanding international standards to provide you with industrial-grade quality, at the right price. Making RS PRO your smart choice.
