RS PRO Pneumatic Piston Rod Cylinder - 25mm Bore, 400mm Stroke, Double Acting
- RS Stock No.:
- 360-770
- Brand:
- RS PRO
Subtotal (1 unit)*
£94.77
(exc. VAT)
£113.72
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 5 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £94.77 |
*price indicative
- RS Stock No.:
- 360-770
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Bore | 25mm | |
| Action | Double | |
| Stroke | 400mm | |
| Pneumatic Connection | G 1/8 | |
| Port Connection | G 1/8 | |
| Piston Rod Thread Gender | Male | |
| Cushioning Type | Pneumatic Adjustable | |
| Dimensions | 540 x 30mm | |
| Diameter | 30mm | |
| Length | 450mm | |
| Absolute Maximum Pressure | 12bar | |
| Maximum Operating Pressure | 10bar | |
| ISO Standard | ISO 6432 | |
| Minimum Operating Temperature | -10°C | |
| Weight | 660g | |
| Maximum Operating Temperature | 80°C | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Bore 25mm | ||
Action Double | ||
Stroke 400mm | ||
Pneumatic Connection G 1/8 | ||
Port Connection G 1/8 | ||
Piston Rod Thread Gender Male | ||
Cushioning Type Pneumatic Adjustable | ||
Dimensions 540 x 30mm | ||
Diameter 30mm | ||
Length 450mm | ||
Absolute Maximum Pressure 12bar | ||
Maximum Operating Pressure 10bar | ||
ISO Standard ISO 6432 | ||
Minimum Operating Temperature -10°C | ||
Weight 660g | ||
Maximum Operating Temperature 80°C | ||
- COO (Country of Origin):
- PL

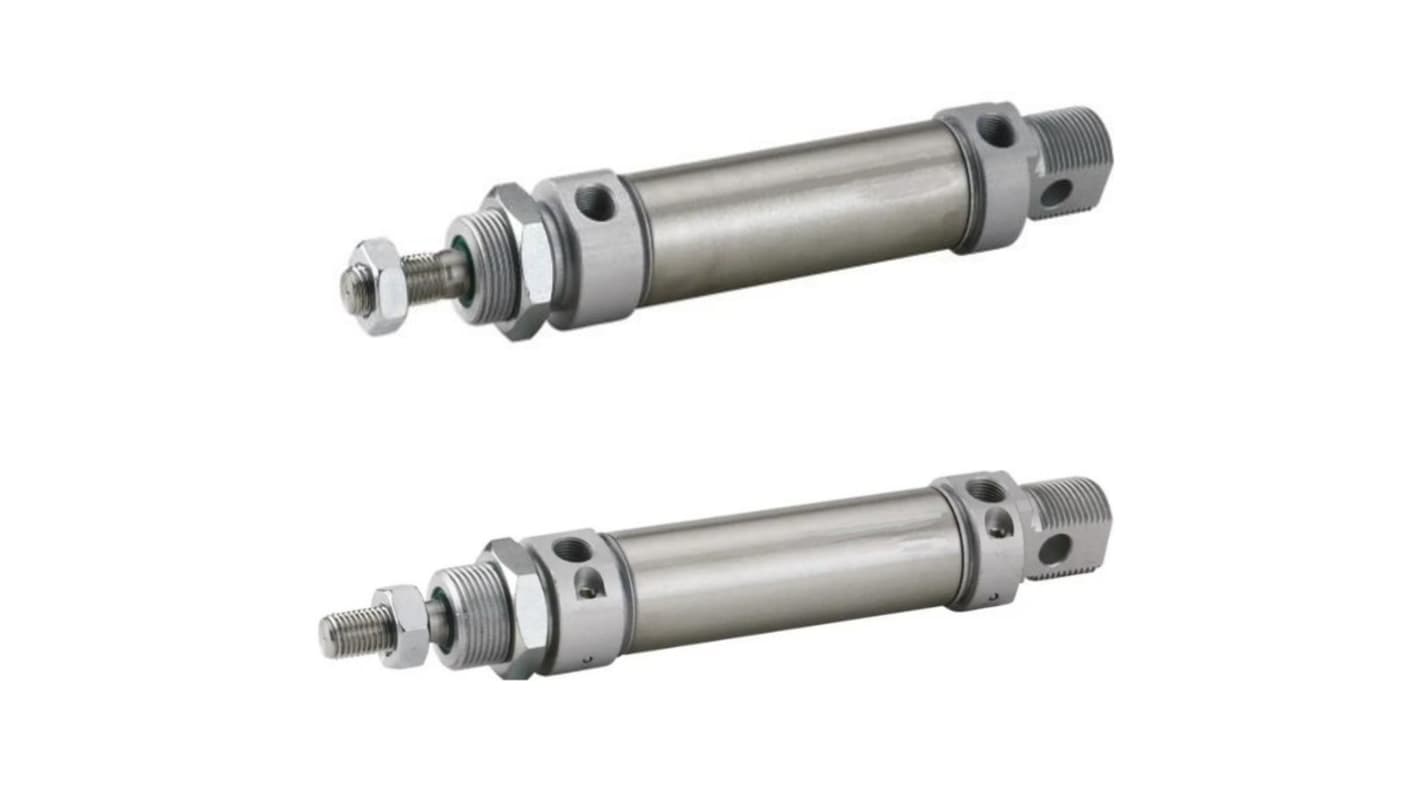

RS PRO Pneumatic Piston Rod Cylinder, ISO 6432, 10 bar
The RS PRO Pneumatic Piston Rod Cylinder offers a compact and efficient solution for industrial applications. It is designed to meet the stringent ISO 6432 standard, ensuring uniformity and seamless system integration. Despite its small size, this cylinder provides significant power, making it ideal for applications requiring both precision and force in confined industrial environments.
Features and Benefits
ISO 6432 Standard Compliance: Ensures compatibility and integration with existing systems
Adjustable Pneumatic Cushioning: Provides smooth operation and reduces wear
Maximum Operating Pressure of 10 bar: Delivers reliable performance under high-pressure conditions
Compact Design: Fits easily into tight spaces without compromising on power
Double Action: Offers efficient operation for both extension and retraction
Adjustable Pneumatic Cushioning: Provides smooth operation and reduces wear
Maximum Operating Pressure of 10 bar: Delivers reliable performance under high-pressure conditions
Compact Design: Fits easily into tight spaces without compromising on power
Double Action: Offers efficient operation for both extension and retraction
Applications
Automation systems
Manufacturing equipment
Robotics
Material handling
Manufacturing equipment
Robotics
Material handling
Additional Information
In accordance with ISO6432 standard
Comes with adjustable pneumatic cushioning
Maximum operating pressure is 10 bar
Comes with adjustable pneumatic cushioning
Maximum operating pressure is 10 bar
Port Connection: G 1/8 Male
Stroke Length: 400 mm
Operating Temperature Range: -10 °C to 80 °C
Weight: 660 g
Dimensions: 540 x 30 mm
Stroke Length: 400 mm
Operating Temperature Range: -10 °C to 80 °C
Weight: 660 g
Dimensions: 540 x 30 mm
Why RS PRO?
RS PRO is the own brand of RS, offering professional quality products and solutions across all industries and technologies. Our product range is rigorously tested, inspected, and audited against demanding international standards to provide you with industrial-grade quality, at the right price. Making RS PRO your smart choice.
