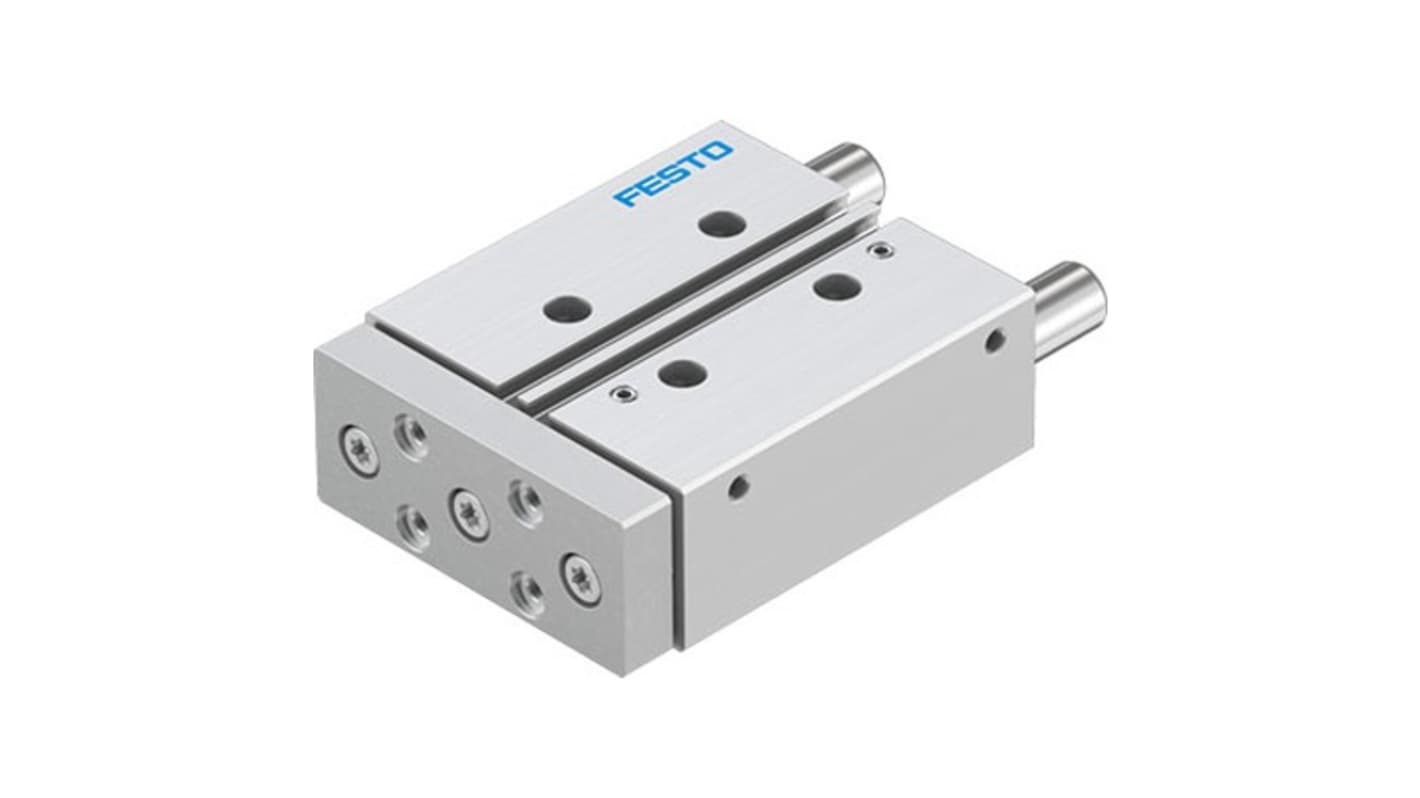

Festo Pneumatic Guided Cylinder - DFM-20-50-P-A-GF-F1A 20 mm Bore, DFM Series, 50 mm Double Acting Acting
- RS Stock No.:
- 343-588
- Mfr. Part No.:
- DFM-20-50-P-A-GF-F1A
- Brand:
- Festo
Subtotal (1 unit)*
£302.13
(exc. VAT)
£362.56
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 04 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £302.13 |
*price indicative
- RS Stock No.:
- 343-588
- Mfr. Part No.:
- DFM-20-50-P-A-GF-F1A
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Product Type | Pneumatic Guided Cylinder | |
| Bore Size | 20mm | |
| Series | DFM | |
| Action Type | Double Acting | |
| Maximum Operating Pressure | 1 Mpa | |
| Body Material | Wrought Aluminium Alloy | |
| Cushioning Type | Elastic | |
| Guide Type | Plain Bearing | |
| Piston Rod Thread Standard | Metric | |
| Piston Rod Thread Size | M5 | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 80°C | |
| Standards/Approvals | Class 7 According to ISO 14644-1, ISO 8573-1:2010 (7:4:4), RoHS, VDMA24364-B1/B2-L | |
| Weight | 1158g | |
| Stroke Length | 50mm | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Product Type Pneumatic Guided Cylinder | ||
Bore Size 20mm | ||
Series DFM | ||
Action Type Double Acting | ||
Maximum Operating Pressure 1 Mpa | ||
Body Material Wrought Aluminium Alloy | ||
Cushioning Type Elastic | ||
Guide Type Plain Bearing | ||
Piston Rod Thread Standard Metric | ||
Piston Rod Thread Size M5 | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 80°C | ||
Standards/Approvals Class 7 According to ISO 14644-1, ISO 8573-1:2010 (7:4:4), RoHS, VDMA24364-B1/B2-L | ||
Weight 1158g | ||
Stroke Length 50mm | ||
- COO (Country of Origin):
- CN
The Festo Double-acting guided drive seamlessly combines performance and versatility to meet diverse applications in automation. With a robust construction featuring a high-alloy stainless steel piston rod and durable wrought aluminium alloy envelope, it's engineered for reliability in various environments. The unit excels at delivering precise motion control while ensuring effective force transmission, with a stroke of 50 mm and an impressive maximum speed of 0.8 m/s. It also boasts superior cushioning capabilities, enhancing the lifespan of both the actuator and its driven components. Specifically designed for tasks involving compressed air, this product is both RoHS-compliant and suitable for cleanroom environments, signalling its commitment to quality and environmental standards.
Provides elastic cushioning rings and plates at both ends for improved impact absorption
Incorporates a plain-bearing guide for reliable motion stability
Enables optional mounting positions to enhance flexibility in installation
Designed for efficient lubrication, benefiting from lubricated operation
Features a corrosion resistance class of CRC 0, ensuring durability in demanding settings
